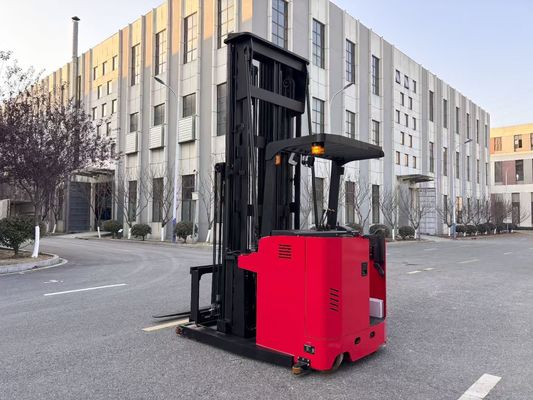

Three-way Electric Pallet Stacker  Forklift Rated Capacity 1500 KG Max.Height  7000 mm

Three-way Electric Pallet Stacker Forklift Rated Capacity 1500 KG Max.Height 7000 mm

  • Battery Capacity
    48V500AH
  • Brake Mode
    Lever Operation
  • Brake System
    Electromagnetic
  • Fork Length
    1070 Mm
  • Fork Width
    570 Mm
  • Max. Lifting Height
    7000 Mm
  • Operation Mode
    Standing Type
  • Steering Type
    Electronic Steering
  • Tyre Material
    Polyurethane
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD15-70
  • Minimum Order Quantity
    1 PC
  • Price
    $6800.00-$7720.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    30 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Three-way Electric Pallet Stacker Forklift Rated Capacity 1500 KG Max.Height 7000 mm

Advantages of Three-Way Electric Forklifts

       Space-saving

  • Three-way forklifts allow the forks to rotate left and right, enabling side operations without the need to turn the forklift. This makes them ideal for narrow aisle environments.
  • The spacing between shelves can be reduced, improving warehouse space utilization.

         Efficient and Flexible

  • With 360-degree operational flexibility, they can quickly adapt to tight spaces and complex storage layouts.
  • They minimize the need for multiple turns or repositioning, increasing operational efficiency.

    Operational Safety

  • Typically equipped with stable electronic control systems, they enhance the stability and precision of cargo handling.
  • They offer better visibility and control, reducing operational risks.
  • Environmentally Friendly and Energy-efficient

  • Powered by electricity, they produce no emissions and operate at low noise levels, making them suitable for indoor use.
  • The operating cost is lower compared to internal combustion forklifts.



Product parameters:

Name   3-Way Pallet Stacker
Model   CSD10 CSD10SQ CSD16 CSD16SQ
Power type   Storage battery
Driving mode   Side stand-on type
Rated load kg 1000 1000 1600 1600
Load center distance mm 500
Front overhang distance mm 655 655 665 665
wheelbase mm 1605 1605 1700 1700
Vehicle weight (including battery) kg 4760 5270 4650 5640
Tire type (drive side/ load side)   Polyurethane PU
Tire size (load-bearing side) mm Φ140×100 Φ140×100 Φ140×127 Φ140×127
Tire size (drive side) mm Φ343×135 Φ343×135 Φ400×165 Φ400×165
Number of wheels (front/ rear) (X= drive wheel)   4/1X
Track width (bearing side) mm 1210 1210 1280 1280
Closing height of gantry mm 2570 2750 2565 2823
Free lifting height mm 0 1780 0 1745
Lifting height mm 3000 4500 3000 4500
Maximum height of gantry during lifting (including blocking rack) mm 4060 5450 4040 5555
Height of roof protection frame mm 2240 2240 2260 2260
Seat height mm 1070
Overall length mm 2892 2890 3000 3000
Overall width mm 1450 1450 1550 1550
Fork size mm 1070*100*35 1070*100*35 1070*125*50 1070*125*50
Installation level   Class II type B
Outside distance of fork mm 230~760 230~760 400~780 400~780
Ground clearance of gantry mm 40
Stacking channel width (pallet 1000x1200) mm 1480 1480 1600 1600
Turning radius mm 1750 1750 1850 1850
Driving speed (full load/ no load) km/h 8/9 8/9 7.5/8 7.5/8
Lifting speed (full load/ no load) mm/s 180/315
Braking mode   Electromagnetic type
Drive motor power (S2-60min) kw 4.5 AC 4.5 AC 5.5 AC 5.5 AC
Lifting motor power (S3-15%) kw 6.3 DC 6.3 DC 8.6 AC 8.6 AC
Battery, voltage/ rated capacity v/ah 48/400 48/400 48/420 48/420
Battery weight kg 675 675 740 740
Steering system   Electronic steering
Battery replacement method   Side pull type
