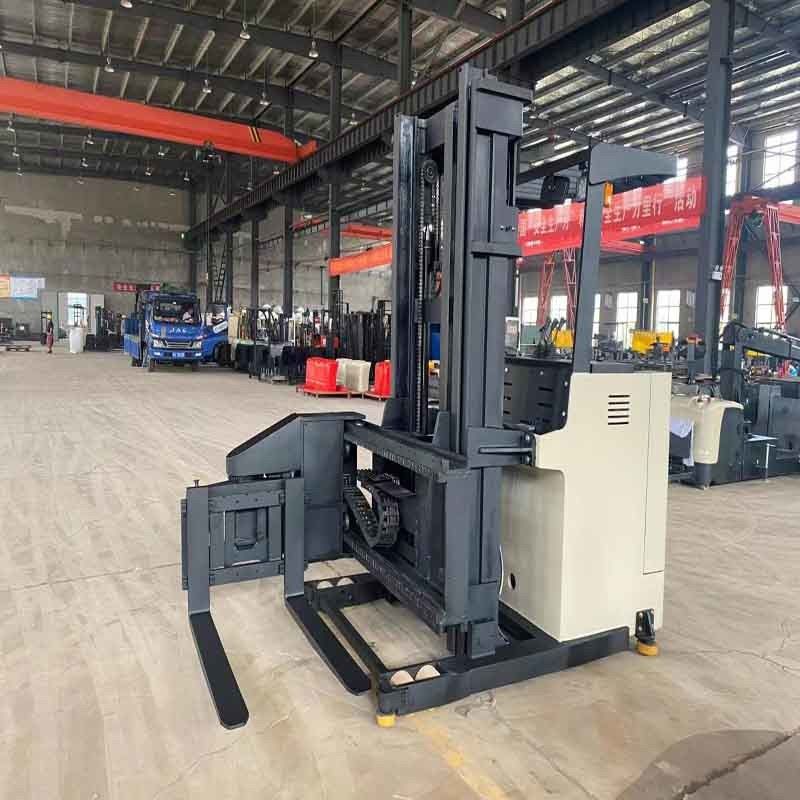

3-way Electic Pallet Stacker American CURTIS Very Narrow Aisle AC Drive Automatic Guided Wide-angle
Advantage:
Safety:
AC EPS
LED headlights
Side pull battery
Cylinder safety shut-off valve
Optional fork electric rotation and side shift
| Model No. | CDD25 |
| Power Supply | Battery |
| Driving Mode | Stand-on |
| Load | 2500kg |
| Load Center Distance | 500mm |
| Tyre Material | Polyurethane |
| Tyre Amount | 4/1x+2 |
| Mast type | Double |
| Standard Lift Height | 3000 mm |
| Free Lift Height | / |
| Lowered Mast Height | 2000 mm |
| Loading MAX. Height | 3490 mm |
| MIN. Grounding clearance | 85 mm |
| Overall Length | 2515 mm /2115 mm |
| Axis | 1390 mm |
| Overall Width | 1230 mm |
| Track Front/Rear | 505 mm/1100 mm |
| Fork Size | 1150 mm/200 mm/65 mm |
| Distance of Unilateral External Fork | 685 mm/560mm |
| Turning Radius | 2125mm/1715mm |
| Driving Velocity (full/idle) | 4.0/5.0 Km/h |
| Lifting Velocity (full/idle) | 80/125 mm/s |
| Descending Velocity (full/idle) | 160/105 mm/s |
| Climbing Velocity (full/idle) | 5%/8% |
| Drive Motor | AC |
| Drive Motor Power | 1.5 kw |
| Lifting Motor | DC |
| Lifting Motor Power | 3 kw |
| Battery | 24 V/210 AH |
| Battery Weight | 200 kg |
| Weight (including battery) | 1300 kg |
| Steering Type | Electronic Steering |
| Brake System | Electromagnetic |
| Brake Mode | Lever Operation |
Our products are sold all over the world, you can rest assured.
