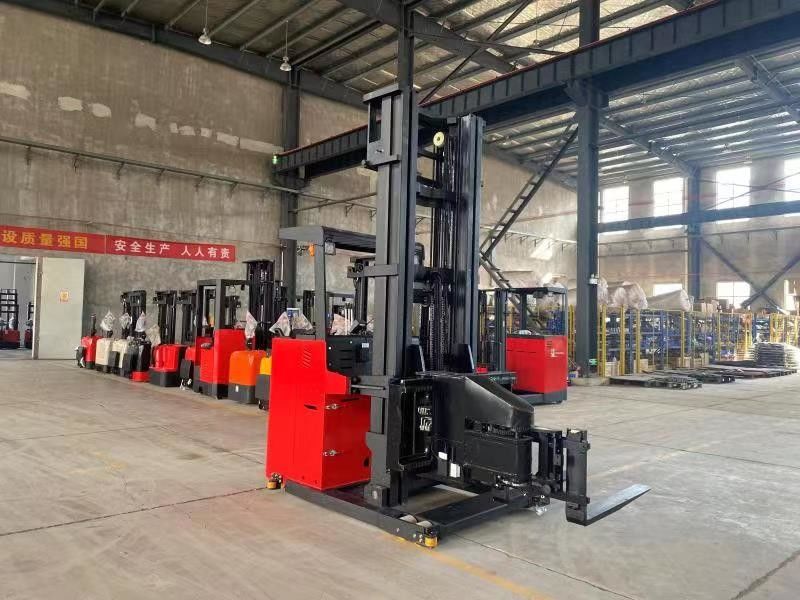

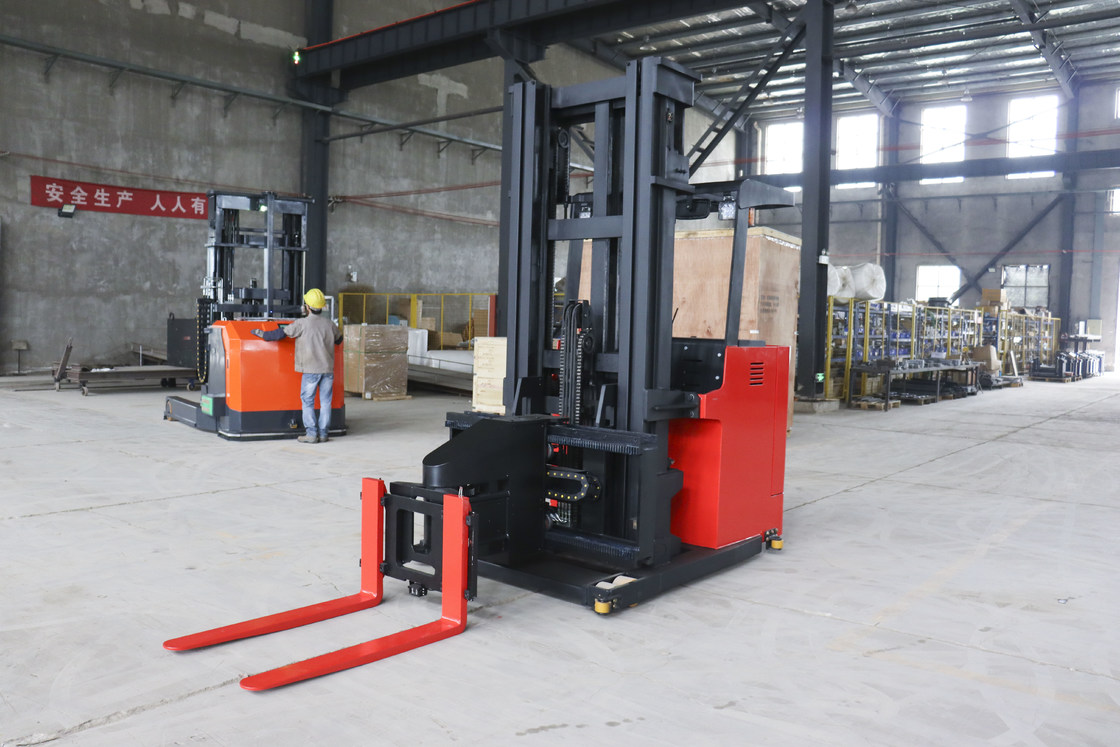

Three Direction 1t Pallet Stacker High Cargo Position Fork

Three Direction 1t Pallet Stacker High Cargo Position Fork

  • High Light

    Three Direction 1t Pallet Stacker

    ,

    1t Pallet Stacker High Cargo

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD10C
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Three Direction 1t Pallet Stacker High Cargo Position Fork

1.0 Ton Customization Three Direction Pallet Stacker High Cargo Position Fork Automatic Deceleration



 Why choose our products ? You will obtian the following advantages:

Advantage:

  • Wide angle view, high-strength shock absorption gantry
  • American CURTIS brand drive control system
  • Minimum 1480mm stacking channel, special for narrow roadway
  • Electronic steering, portable, mute
  • multi function instrument, drive wheel position display
  • Electromagnetic and regenerative braking system
  • fork rotation angle 180 °, left and right side shift
  • Line fault detection error code diagnosis
  • 48V high capacity lead-acid battery
  • automatic alignment and guidance during walking

Safety:

  • Curve automatic deceleration device
  • Automatic deceleration of fork in high cargo position
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Wireless monitoring system

AC EPS

LED headlights

Side pull battery

Cylinder safety shut-off valve

Optional fork electric rotation and side shift





Name   3-Way Pallet Stacker
Model   CSD10 CSD10SQ CSD15 CSD15SQ
Power type   Storage battery
Driving mode   Side stand-on type
Rated load kg 1000 1000 1500 1500
Load center distance mm 500
Front overhang distance mm 655 655 665 665
wheelbase mm 1605 1605 1700 1700
Vehicle weight (including battery) kg 4760 5270 4650 5640
Tire type (drive side/ load side)   Polyurethane PU
Tire size (load-bearing side) mm Φ140×100 Φ140×100 Φ140×127 Φ140×127
Tire size (drive side) mm Φ343×135 Φ343×135 Φ400×165 Φ400×165
Number of wheels (front/ rear) (X= drive wheel)   4/1X
Track width (bearing side) mm 1210 1210 1280 1280
Closing height of gantry mm 2570 2750 2565 2823
Free lifting height mm 0 1780 0 1745
Lifting height mm 3000 4500 3000 4500
Maximum height of gantry during lifting (including blocking rack) mm 4060 5450 4040 5555
Height of roof protection frame mm 2240 2240 2260 2260
Seat height mm 1070
Overall length mm 2892 2890 3000 3000
Overall width mm 1450 1450 1550 1550
Fork size mm 1070*100*35 1070*100*35 1070*125*50 1070*125*50
Installation level   Class II type B
Outside distance of fork mm 230~760 230~760 400~780 400~780
Ground clearance of gantry mm 40
Stacking channel width (pallet 1000x1200) mm 1480 1480 1600 1600
Turning radius mm 1750 1750 1850 1850
Driving speed (full load/ no load) km/h 8/9 8/9 7.5/8 7.5/8
Lifting speed (full load/ no load) mm/s 180/315
Braking mode   Electromagnetic type
Drive motor power (S2-60min) kw 4.5 AC 4.5 AC 5.5 AC 5.5 AC
Lifting motor power (S3-15%) kw 6.3 DC 6.3 DC 8.6 AC 8.6 AC
Battery, voltage/ rated capacity v/ah 48/400 48/400 48/420 48/420
Battery weight kg 675 675 740 740
Steering system   Electronic steering
Battery replacement method   Side pull type
