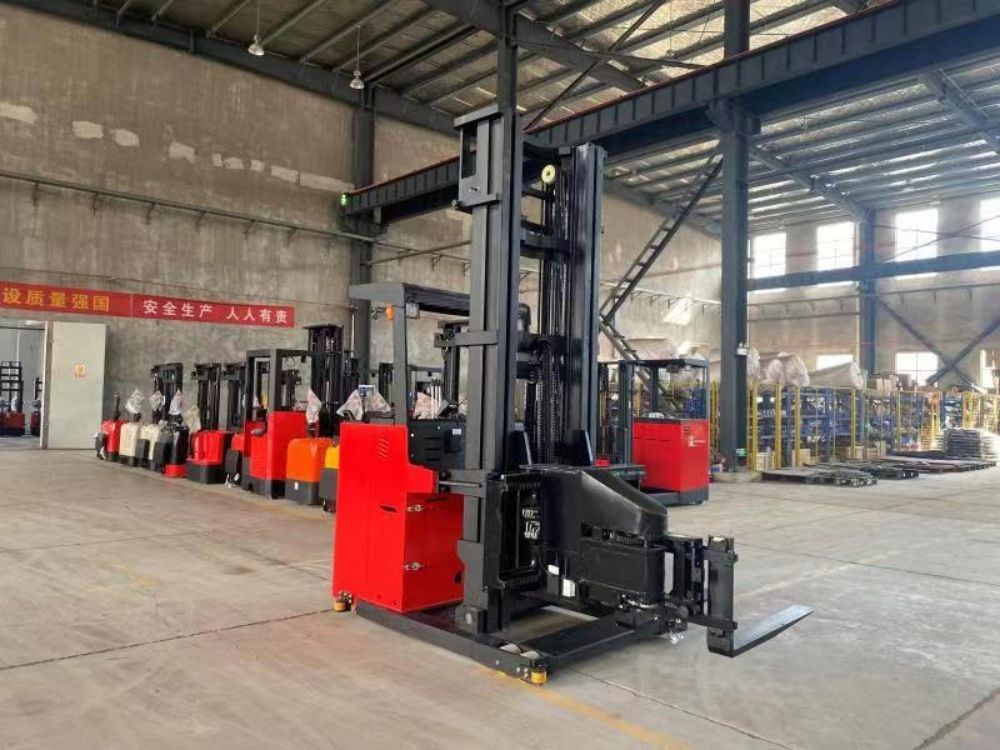

Electronic Steering 1 Ton Pallet Stacker Automatic Deceleration

Electronic Steering 1 Ton Pallet Stacker Automatic Deceleration

  • High Light

    1 Ton Pallet Stacker Automatic Deceleration


    Electronic Steering 1 Ton Pallet Stacker


    Electric Stacker 1 Ton Automatic Deceleration

  • Drive Motor
  • Power Supply
  • Tyre Material
  • Steering Type
    Electronic Steering
  • Brake System
  • Brake Mode
    Lever Operation
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability

Electronic Steering 1 Ton Pallet Stacker Automatic Deceleration

1.0 Ton Automatic Deceleration of Bends Narrow Aisle Optional Fork Electric Spin Side Shift Pallet Stacker


  • Wide angle view, high-strength shock absorption gantry
  • American CURTIS brand drive control system
  • Minimum 1480mm stacking channel, special for narrow roadway
  • Electronic steering, portable, mute
  • multi function instrument, drive wheel position display
  • Electromagnetic and regenerative braking system
  • fork rotation angle 180 °, left and right side shift
  • Line fault detection error code diagnosis
  • 48V high capacity lead-acid battery
  • automatic alignment and guidance during walking



  • Curve automatic deceleration device
  • Automatic deceleration of fork in high cargo position
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Wireless monitoring system



LED headlights

Side pull battery

Cylinder safety shut-off valve

Optional fork electric rotation and side shift


Product parameters:
Name   3-Way Pallet Stacker
Model   CSD10
Power type   Storage battery
Driving mode   Side stand-on type
Rated load kg 1000
Load center distance mm 500
Front overhang distance mm 655
wheelbase mm 1605
Vehicle weight (including battery) kg 4760
Tire type (drive side/ load side)   Polyurethane PU
Tire size (load-bearing side) mm Φ140×100
Tire size (drive side) mm Φ343×135
Number of wheels (front/ rear) (X= drive wheel)   4/1X
Track width (bearing side) mm 1210
Closing height of gantry mm 2570
Free lifting height mm 0
Lifting height mm 3000
Maximum height of gantry during lifting (including blocking rack) mm 4060
Height of roof protection frame mm 2240
Seat height mm 1070
Overall length mm 2892
Overall width mm 1450
Fork size mm 1070*100*35
Installation level   Class II type B
Outside distance of fork mm 230~760
Ground clearance of gantry mm 40
Stacking channel width (pallet 1000x1200) mm 1480
Turning radius mm 1750
Driving speed (full load/ no load) km/h 8/9
Lifting speed (full load/ no load) mm/s 180/315
Braking mode   Electromagnetic type
Drive motor power (S2-60min) kw 4.5 AC
Lifting motor power (S3-15%) kw 6.3 DC
Battery, voltage/ rated capacity v/ah 48/400
Battery weight kg 675
Steering system   Electronic steering
Battery replacement method   Side pull type
