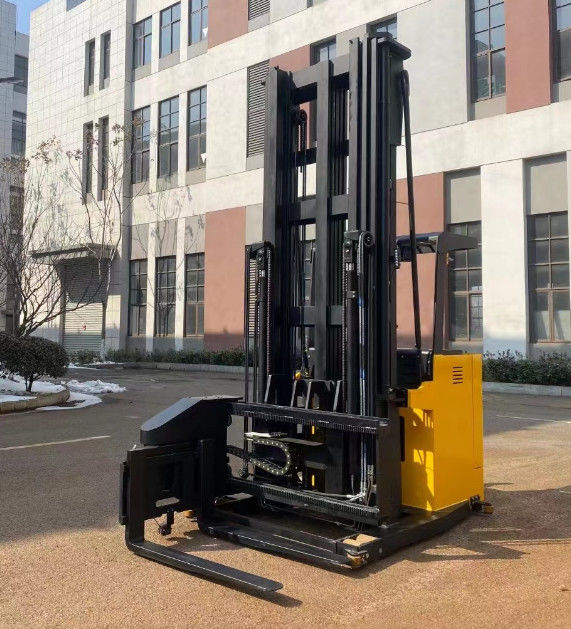

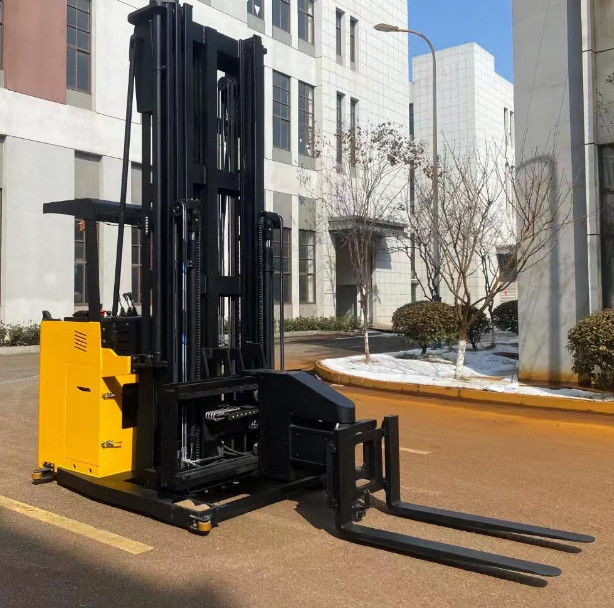

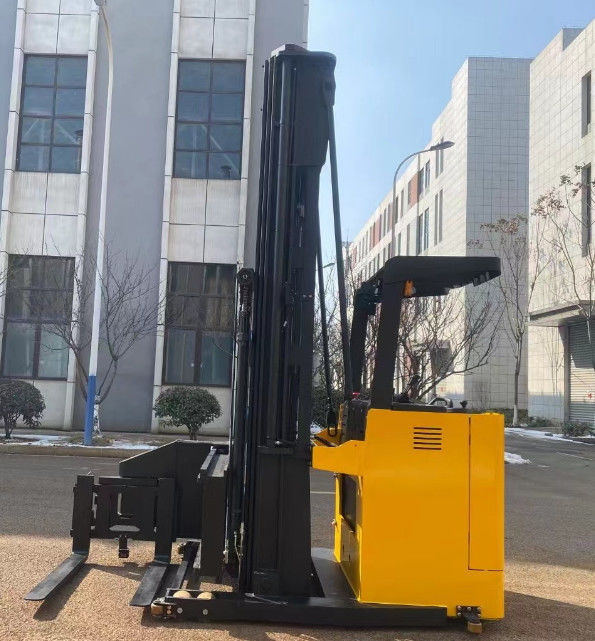

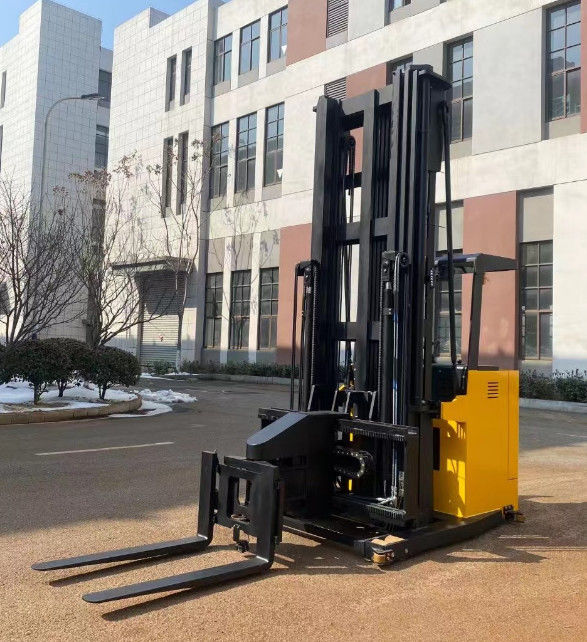

1.5 Tons Narrow Channels Pallet Stacker Electric Forklift Stacker Fork Rotation Angle 180 Degree

1.5 Tons Narrow Channels Pallet Stacker Electric Forklift Stacker Fork Rotation Angle 180 Degree

Products - 3 Way Pallet Stacker
  • High Light

    1.5 Tons 3 Way Pallet Stacker

    ,

    Electric Narrow Channels Pallet Stacker

    ,

    180 Degree Rotation Electric Forklift Stacker

  • Battery Capacity
    210 Ah
  • Brake Mode
    Lever Operation
  • Brake System
    Electromagnetic
  • Fork Length
    1150 Mm
  • Fork Width
    570 Mm
  • Lifting Speed
    0.08 M/s
  • Lowering Speed
    0.1 M/s
  • Max. Lifting Height
    3500 Mm
  • Operation Mode
    Walking Type
  • Overall Length
    1900 Mm
  • Parking Brake Type
    Electromagnetism
  • Steering Type
    Electronic Steering
  • Travel Speed
    5.5 Km/h
  • Turning Radius
    1650 Mm
  • Tyre Material
    Polyurethane
  • Drive Control System
    USA CURTIS
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD15
  • Minimum Order Quantity
    1 PC
  • Price
    $7680.00-$7720.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

1.5 Tons Narrow Channels Pallet Stacker Electric Forklift Stacker Fork Rotation Angle 180 Degree

  • 1.5 Tons Narrow Channels Pallet Stacker Electric Forklift Stacker Fork Rotation Angle 180 Degree
  • 1.5 Tons Narrow Channels Pallet Stacker Electric Forklift Stacker Fork Rotation Angle 180 Degree
  • 1.5 Tons Narrow Channels Pallet Stacker Electric Forklift Stacker Fork Rotation Angle 180 Degree
  • 1.5 Tons Narrow Channels Pallet Stacker Electric Forklift Stacker Fork Rotation Angle 180 Degree
Get Price Contact Now

Specification Advantages:



  • Three way stacker truck
  • Pedestrian side standing type
  • Rated load capacity: 1500kg
  • Lifting height: 7000mm
  • Fork length: 1200mm
  • Battery capacity: 48/400AH
  • Cold storage temperature: -20 ° C
  • Electronic steering side pull battery structure
  • Wireless camera monitor





Suitable Working Situation :

  • Three way stacker truck
  •  The fork can rotate in three directions and the body can move forward.
  • Suitable for stacking in high-level storage and narrow channels, with a minimum channel of 1480mm;
  • Used for storage intensive warehouses and high-level warehouses;
  • Load capacity 500-1500kg
  •  Lifting height 3000-10000mm.



Advantage:

  • USA  CURTIS brand drive control system
  • Minimum 1480mm stacking channel, special for narrow roadway
  • multi function instrument, drive wheel position display
  • Electromagnetic and regenerative braking system
  • Fork rotation angle 180 °, left and right side shift
  • Line fault detection error code diagnosis
  • High capacity lead-acid battery 48 V
  • automatic alignment and guidance during walking



Product parameters:

Name   3-Way Pallet Stacker
Model   CSD10 CSD10SQ CSD15 CSD15SQ
Power type   Storage battery
Driving mode   Side stand-on type
Rated load kg 1000 1000 1500 1500
Load center distance mm 500
Front overhang distance mm 655 655 665 665
wheelbase mm 1605 1605 1700 1700
Vehicle weight (including battery) kg 4760 5270 4650 5640
Tire type (drive side/ load side)   Polyurethane PU
Tire size (load-bearing side) mm Φ140×100 Φ140×100 Φ140×127 Φ140×127
Tire size (drive side) mm Φ343×135 Φ343×135 Φ400×165 Φ400×165
Number of wheels (front/ rear) (X= drive wheel)   4/1X
Track width (bearing side) mm 1210 1210 1280 1280
Closing height of gantry mm 2570 2750 2565 2823
Free lifting height mm 0 1780 0 1745
Lifting height mm 3000 4500 3000 4500
Maximum height of gantry during lifting (including blocking rack) mm 4060 5450 4040 5555
Height of roof protection frame mm 2240 2240 2260 2260
Seat height mm 1070
Overall length mm 2892 2890 3000 3000
Overall width mm 1450 1450 1550 1550
Fork size mm 1070*100*35 1070*100*35 1070*125*50 1070*125*50
Installation level   Class II type B
Outside distance of fork mm 230~760 230~760 400~780 400~780
Ground clearance of gantry mm 40
Stacking channel width (pallet 1000x1200) mm 1480 1480 1600 1600
Turning radius mm 1750 1750 1850 1850
Driving speed (full load/ no load) km/h 8/9 8/9 7.5/8 7.5/8
Lifting speed (full load/ no load) mm/s 180/315
Braking mode   Electromagnetic type
Drive motor power (S2-60min) kw 4.5 AC 4.5 AC 5.5 AC 5.5 AC
Lifting motor power (S3-15%) kw 6.3 DC 6.3 DC 8.6 AC 8.6 AC
Battery, voltage/ rated capacity v/ah 48/400 48/400 48/420 48/420
Battery weight kg 675 675 740 740
Steering system   Electronic steering
Battery replacement method   Side pull type
