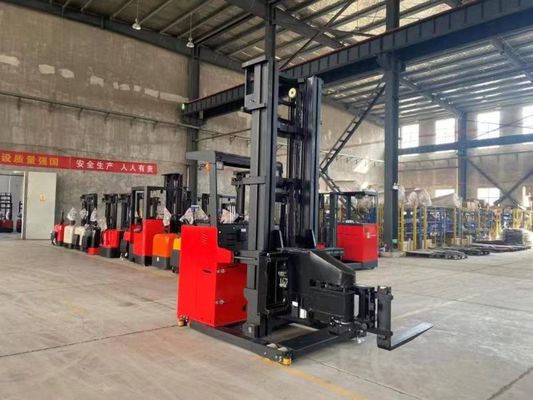

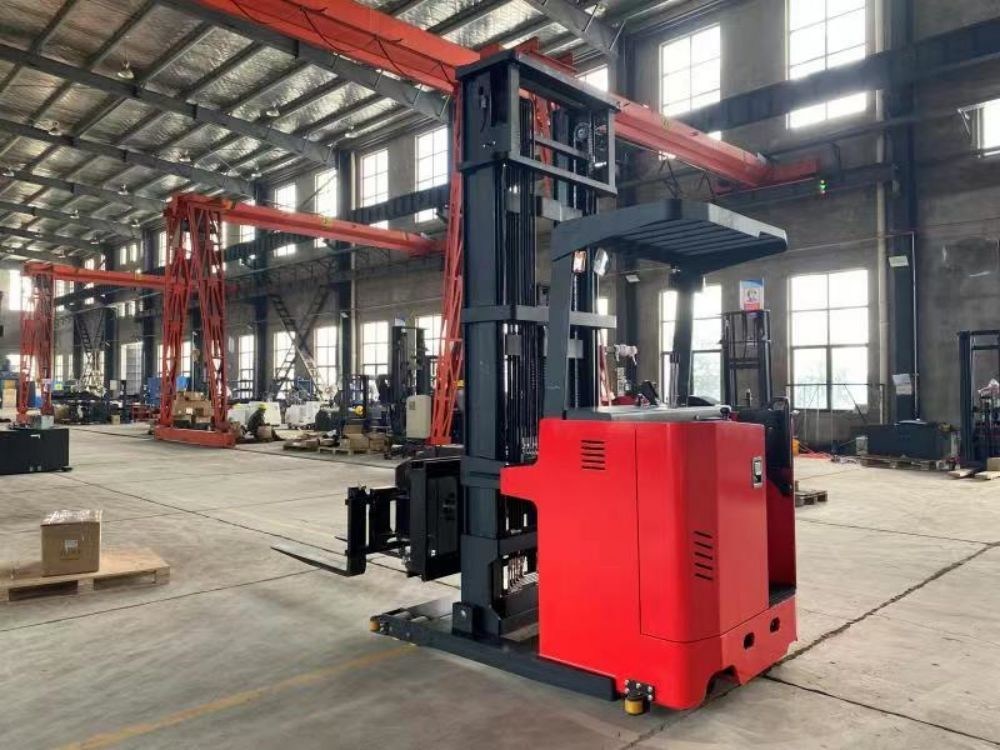

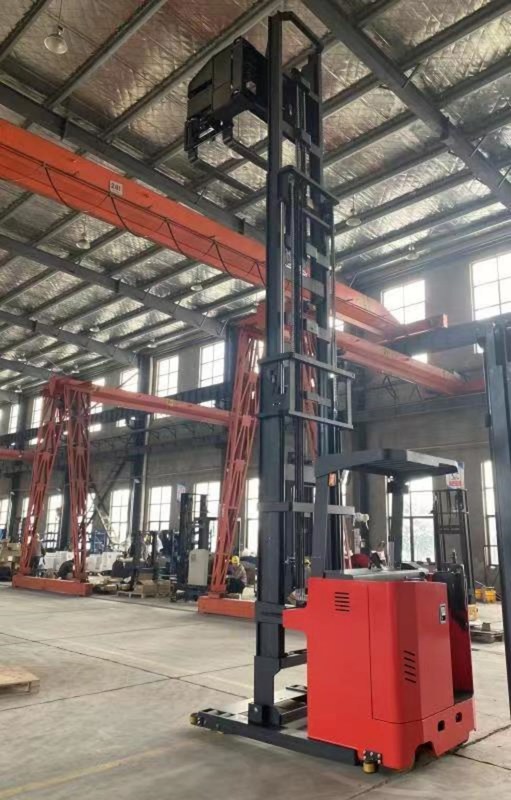

Narrow Channels 3 Way Electric Stacker 1000KG Versatile Material Handling Solution

Narrow Channels 3 Way Electric Stacker 1000KG Versatile Material Handling Solution

  • High Light

    3 Way Electric Stacker 1000KG

    ,

    3 Way Electric Stacker Material Handling

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD10SQ
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Narrow Channels 3 Way Electric Stacker 1000KG Versatile Material Handling Solution

OEM/ODM 3-Way Pallet Stacker Rated Capacity 1000KG In Narrow Channels and High Level Storage



1.Product



 Here is a 1000-word English information about 3 Way Pallet Stacker:

3 Way Pallet Stacker: Versatile Material Handling Solution

A 3-way pallet stacker is a specialized material handling equipment designed to efficiently handle and transport palletized loads in tight spaces and narrow aisles. It is a versatile and compact solution that offers flexibility in maneuvering and stacking pallets in multiple directions, including forward, backward, and side-to-side.



2.Parameter table

Name   3-Way Pallet Stacker
Model   CSD10 CSD10SQ CSD15 CSD15SQ
Power type   Storage battery
Driving mode   Side stand-on type
Rated load kg 1000 1000 1500 1500
Load center distance mm 500
Front overhang distance mm 655 655 665 665
wheelbase mm 1605 1605 1700 1700
Vehicle weight (including battery) kg 4760 5270 4650 5640
Tire type (drive side/ load side)   Polyurethane PU
Tire size (load-bearing side) mm Φ140×100 Φ140×100 Φ140×127 Φ140×127
Tire size (drive side) mm Φ343×135 Φ343×135 Φ400×165 Φ400×165
Number of wheels (front/ rear) (X= drive wheel)   4/1X
Track width (bearing side) mm 1210 1210 1280 1280
Closing height of gantry mm 2570 2750 2565 2823
Free lifting height mm 0 1780 0 1745
Lifting height mm 3000 4500 3000 4500
Maximum height of gantry during lifting (including blocking rack) mm 4060 5450 4040 5555
Height of roof protection frame mm 2240 2240 2260 2260
Seat height mm 1070
Overall length mm 2892 2890 3000 3000
Overall width mm 1450 1450 1550 1550
Fork size mm 1070*100*35 1070*100*35 1070*125*50 1070*125*50
Installation level   Class II type B
Outside distance of fork mm 230~760 230~760 400~780 400~780
Ground clearance of gantry mm 40
Stacking channel width (pallet 1000x1200) mm 1480 1480 1600 1600
Turning radius mm 1750 1750 1850 1850
Driving speed (full load/ no load) km/h 8/9 8/9 7.5/8 7.5/8
Lifting speed (full load/ no load) mm/s 180/315
Braking mode   Electromagnetic type
Drive motor power (S2-60min) kw 4.5 AC 4.5 AC 5.5 AC 5.5 AC
Lifting motor power (S3-15%) kw 6.3 DC 6.3 DC 8.6 AC 8.6 AC
Battery, voltage/ rated capacity v/ah 48/400 48/400 48/420 48/420
Battery weight kg 675 675 740 740
Steering system   Electronic steering
Battery replacement method   Side pull type



3.Characteristic

  1. Versatile Maneuverability: The standout feature of a 3-way pallet stacker is its ability to maneuver in multiple directions. It can move forward, backward, and sideways, allowing operators to navigate through narrow aisles and confined spaces with ease. This versatility enables efficient pallet handling and positioning in diverse warehouse layouts.

  2. Sideways Shifting Capability: Unlike traditional forklifts, 3-way pallet stackers have the unique capability to shift the entire mast and forks sideways. This lateral movement allows operators to align pallets with precision, even in tight spaces. It enables efficient loading and unloading of pallets in racking systems or alongside walls, maximizing storage utilizatio

4.Benefits and Applications

  1. Space Optimization: The ability to move in multiple directions allows 3-way pallet stackers to navigate through narrow aisles and confined spaces that are inaccessible to conventional forklifts. This enables warehouses and distribution centers to utilize their available space more efficiently, increasing storage capacity and reducing the need for extensive aisle widths.

  2. Versatile Handling: 3-way pallet stackers can handle various types of palletized loads, including standard pallets, double-deep racks, and block stacking configurations. Their flexibility in maneuvering and stacking pallets in different orientations makes them suitable for a wide range of industries, such as manufacturing, logistics, retail, and wholesale.
