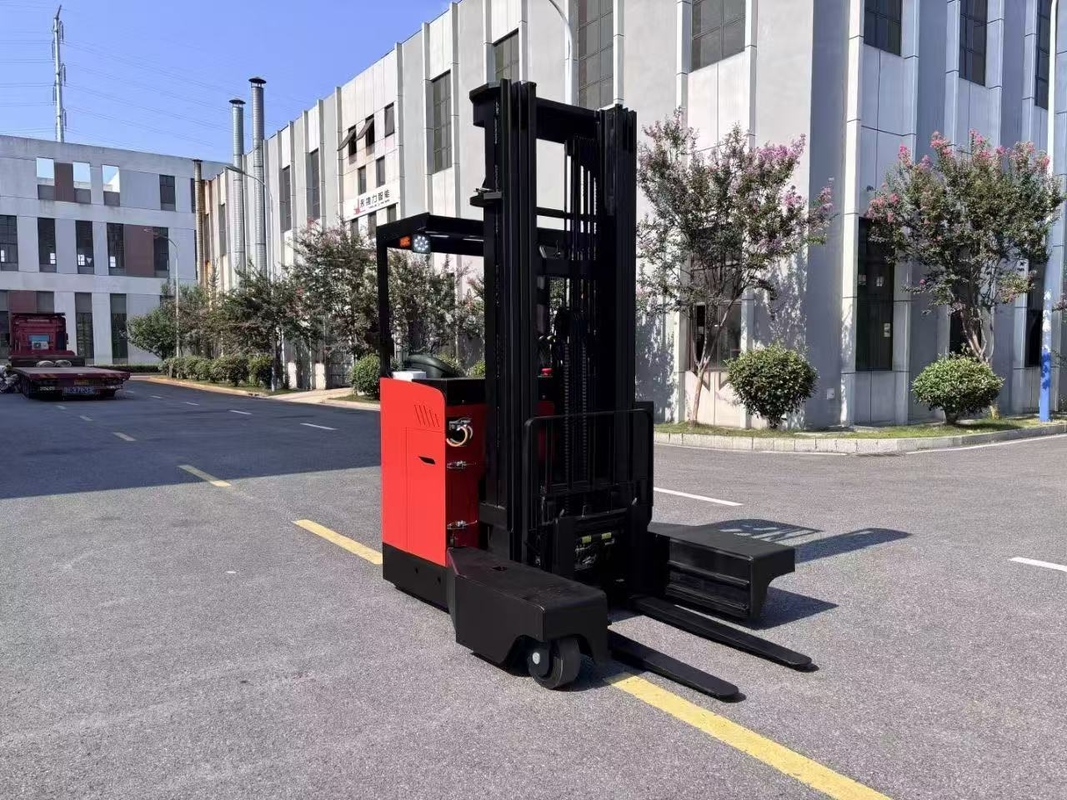

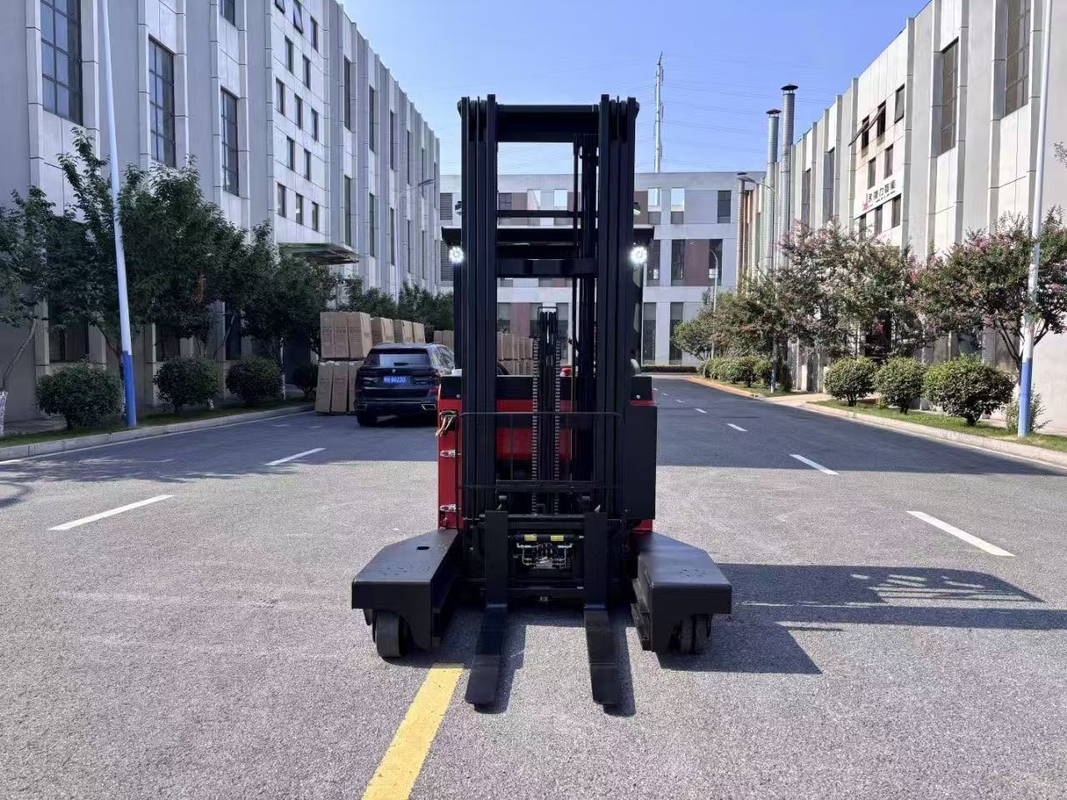

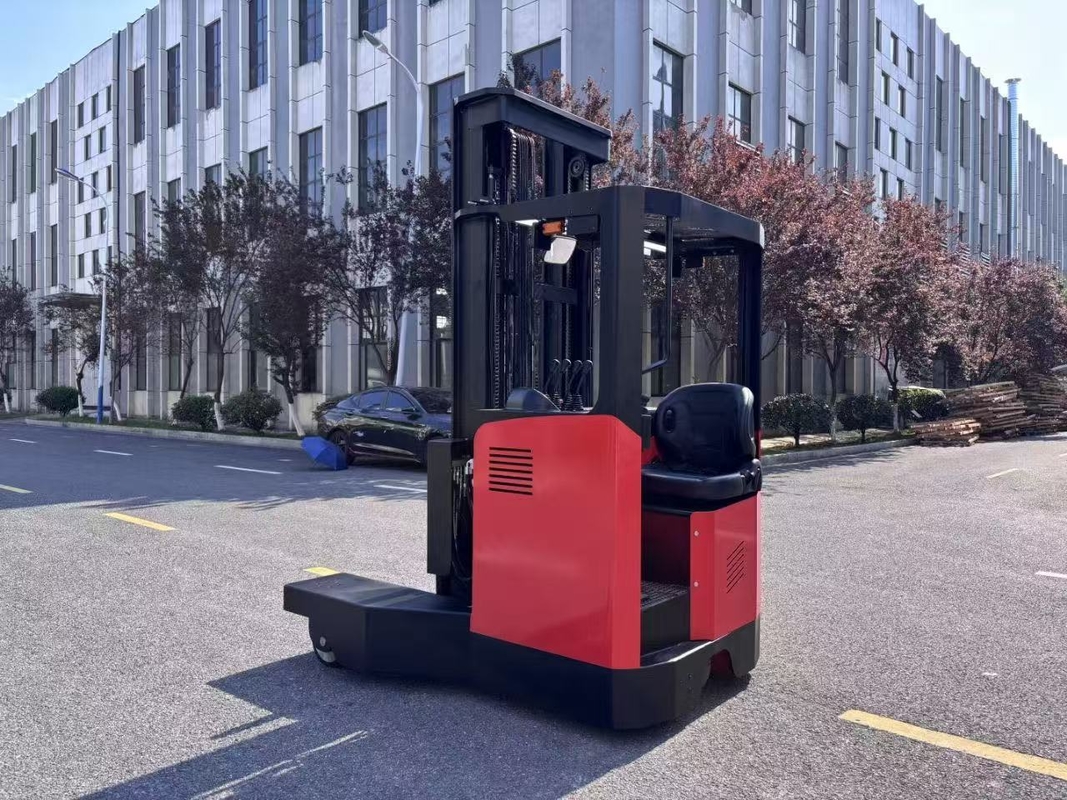

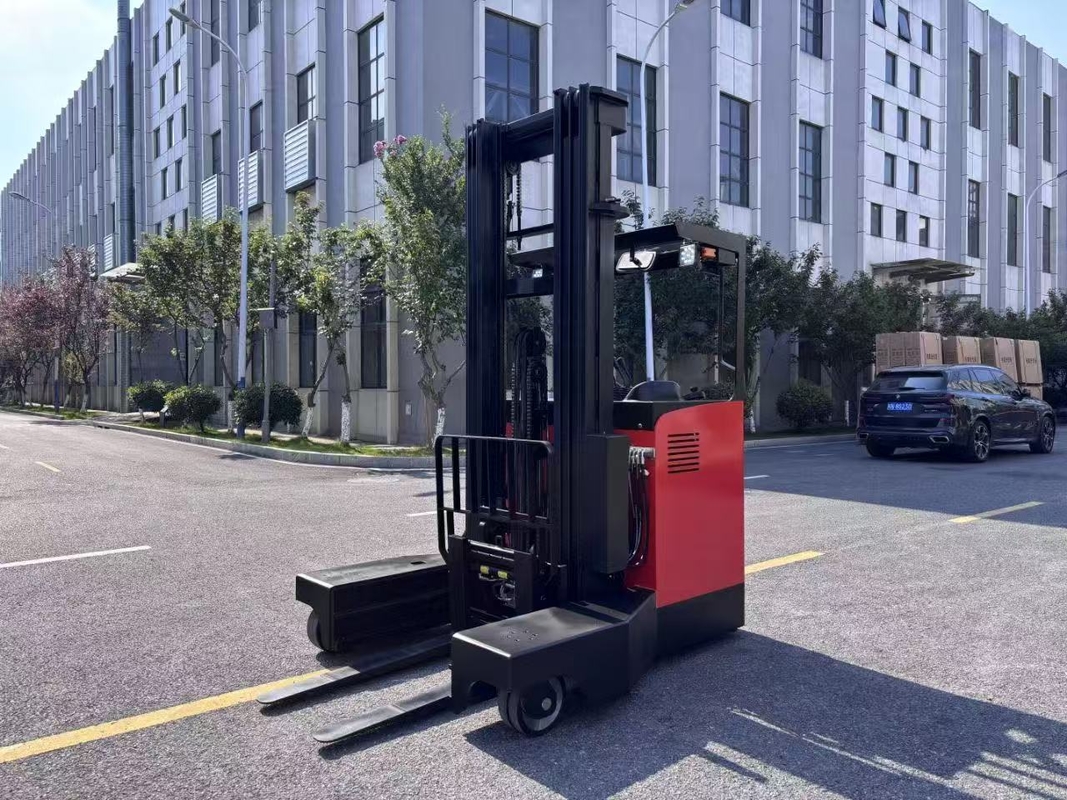

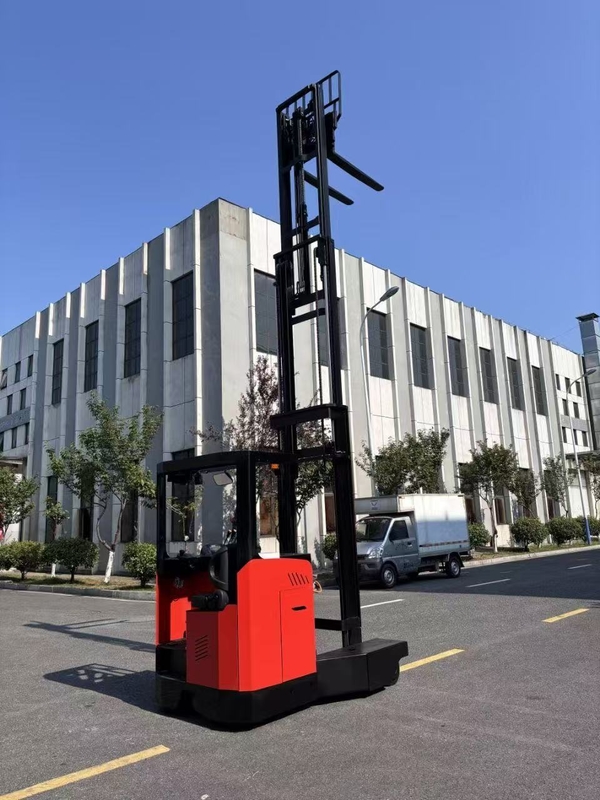

Lithium B attery 51.2V 400AH Four Direction Reach Forklift Truck Steaker Load Capacity 2000 Kg 2 Tons
-
Drive MotorAC
-
Power SupplyBattery
-
Tyre MaterialPolyurethane
-
Steering TypeElectronic Steering
-
Brake SystemElectromagnetic
-
Brake ModeLever Operation
-
Place of OriginANHUI, CHINA
-
Brand NameYONGJIELI
-
CertificationCE
-
Model NumberCQD20SC
-
Minimum Order Quantity1 SETS
-
PriceNegotiation
-
Packaging DetailsEXPORT PACKING
-
Delivery Time20 working days
-
Payment TermsL/C,T/T,D/A,D/P,Western Union
-
Supply Ability50 SETS PER MONTH
Lithium B attery 51.2V 400AH Four Direction Reach Forklift Truck Steaker Load Capacity 2000 Kg 2 Tons
Product Parameter
Rated load: 2000kg
Height increase: 6000mm
Fork length: 1070mm
Forward and backward tilt: 3/5 °
Lateral displacement distance: ± 60mm
Lithium battery: 51.2V400AH
Electronic steering vehicle type
CURTIS control system
Fully AC electromagnetic hydraulic valve group
Side pull battery structure
Three section fully free portal frame
Advantages:
- Wide angle high-strength shock absorption gantry
- CURTIS Brand Drive Control System in the United States
- Minimum 1480mm stacking channel, dedicated to narrow roads
- Electronic steering, portable, silent
- Multifunctional instrument, display of drive wheel position
- Electromagnetic and regenerative braking system
- The fork rotates 180 ° and shifts left and right
- Line fault detection error code diagnosis
- 48V high capacity lead-acid battery
- Automatic alignment and guidance during walking
Security:
- Automatic deceleration device for bends
- Fork automatically decelerates at high position
- Drive stepless speed regulation
- Controller multiple automatic protection system
- Wireless monitoring system
- Communication EPS
- LED headlights
- Side pull battery
- Cylinder safety shut-off valve
- Optional fork electric rotation and side shift
| Name | Multi-direction seated forklift | |
| Operation type | Seated type | |
| Model | CQD20SC | |
| Rated load | kg | 2000 |
| Maximum lifting height | mm | 6000 |
| Load center | mm | 500 |
| Load at maximum | kg | 1000 |
| Tire configuration | Polyurethane solid tire | |
| Fork size | mm | 1070*100*45 |
| Fork adjustment range | mm | 260-820 |
| Overall length | mm | 2480 |
| Overall width | mm | 1800 |
| Height of mast closed | mm | 2680 |
| Height of fork rack when lifting to the max. | mm | 6985 |
| Turning radius | mm | 1900 |
| Minimum channel width of side type | mm | 2900 (1000*1000mm pallet) |
| Height of roof protection frame | mm | 2190 |
| Minimum ground clearance of mast | mm | 80 |
| Maximum driving speed | km/h | 7.0/8.0 |
| Rising speed | mm/s | 120/270 |
| Straight climbing ability | % | ≤8 |
| Side climbing ability | % | ≤5 |
| Total weight | kg | ~3300 |
| Drive wheel | mm | Φ343*135 |
| Front wheel | mm | Φ267*114 |
| Battery capacity | v/ah | 48/400 |
| battery charger | v/a | 48/50 |
| Drive motor | kw | 6.5 |
| Lifting motor | kw | 8 6 |
| Drive control type | 6.5 (AC) | |
| Travel speed regulation mode | Hall accelerator | |
| Service brake | Electromagnetism | |
| Parking brake | Electromagnetism |
The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
