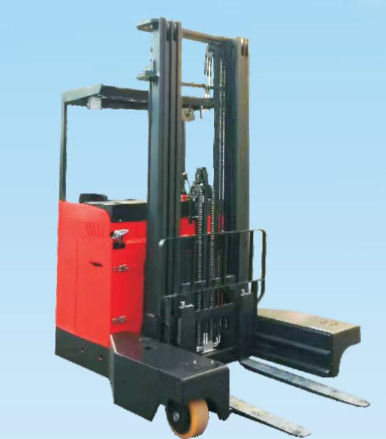

2 Ton 4 Directional Forklift 4 Way Reach Truck Hydraulic Seat Style

2 Ton 4 Directional Forklift 4 Way Reach Truck Hydraulic Seat Style

  • High Light

    2 Ton 4 Directional Forklift

    ,

    4 Directional Forklift Seat Style

    ,

    4 Way Reach Truck Hydraulic

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CQD20S
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

2 Ton 4 Directional Forklift 4 Way Reach Truck Hydraulic Seat Style

2 Ton Four Way Walking Forward Low Noise Hydraulic Seat Style LED Lamp Double Fork Electric Stacker

Name   Multi-direction seated forklift
Operation type   Seated type
Model   CQD20S-60
Rated load kg 2000
Maximum lifting height mm 6000
Load center mm 500
Load at maximum kg 1000
Tire configuration   Polyurethane solid tire
Fork size mm 1070*100*45
Fork adjustment range mm 260-820
Overall length mm 2480
Overall width mm 1800
Height of mast closed mm 2680
Height of fork rack when lifting to the max. mm 6985
Turning radius mm 1900
Minimum channel width of side type mm 2900 (1000*1000mm pallet)
Height of roof protection frame mm 2190
Minimum ground clearance of mast mm 80
Maximum driving speed km/h 7.0/8.0
Rising speed mm/s 120/270
Straight climbing ability % ≤8
Side climbing ability % ≤5
Total weight kg ~3300
Drive wheel mm Φ343*135
Front wheel mm Φ267*114
Battery capacity v/ah 48/400
battery charger v/a 48/50
Drive motor kw 6.5
Lifting motor kw 8 6
Drive control type   6.5 (AC)
Travel speed regulation mode   Hall accelerator
Service brake   Electromagnetism
Parking brake   Electromagnetism




The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
