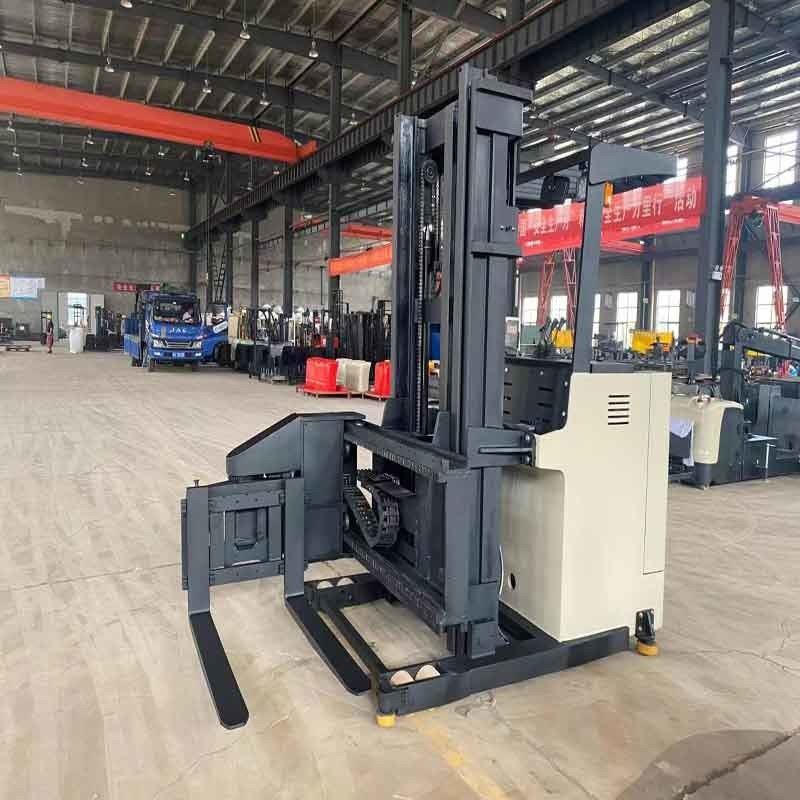

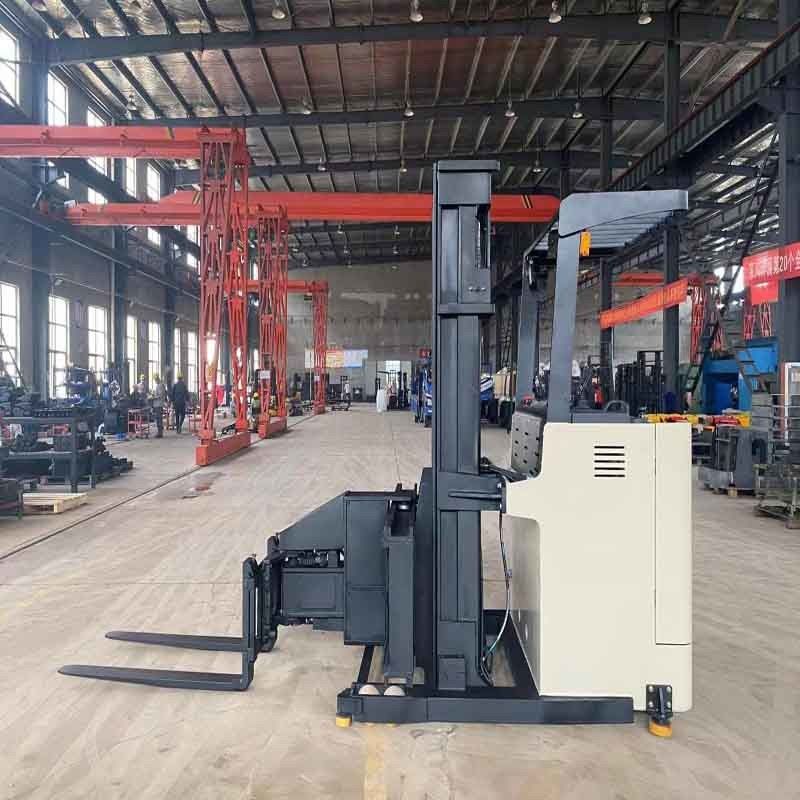

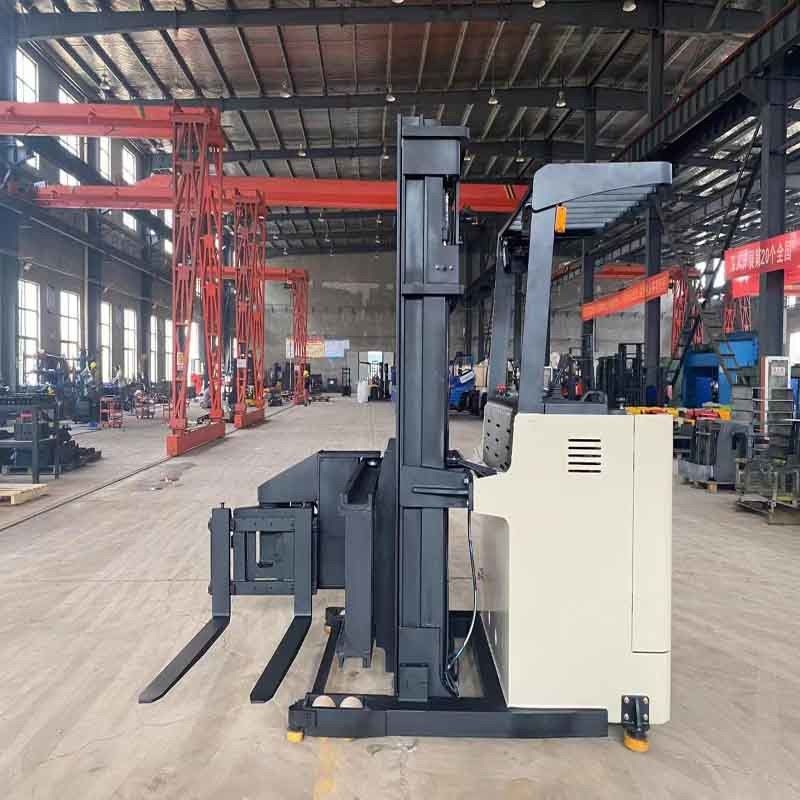

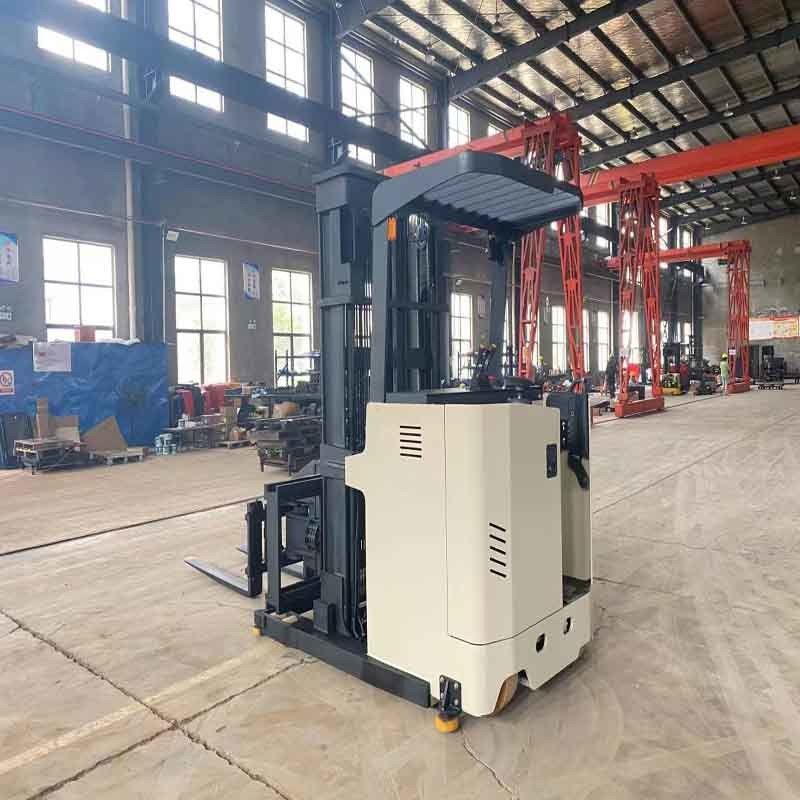

2500kg 4 Directional Forklift Wide Angle Large Capacity 4 way forklift truck

2500kg 4 Directional Forklift Wide Angle Large Capacity 4 way forklift truck

  • High Light

    2500kg 4 Directional Forklift

    ,

    4 Directional Forklift Wide Angle

    ,

    Large Capacity 4 Way Forklift Truck

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    Anhui, China
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CQD15S
  • Minimum Order Quantity
    1 SET
  • Price
    $2,470.00~$2,999.00 PER SET
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    100 SETS PER MONTH

2500kg 4 Directional Forklift Wide Angle Large Capacity 4 way forklift truck

4 Directional Forklift Wide-angle Lead-acid Battery Large Capacity Regenerative Braking Automatic Curve System

Model No. CDD25
Power Supply Battery
Driving Mode Stand-on
Load 2500kg
Load Center Distance 500mm
Tyre Material Polyurethane
Tyre Amount 4/1x+2
Mast type Double
Standard Lift Height 3000 mm
Free Lift Height /
Lowered Mast Height 2000 mm
Loading MAX. Height 3490 mm
MIN. Grounding clearance 85 mm
Overall Length 2515 mm /2115 mm
Axis 1390 mm
Overall Width 1230 mm
Track Front/Rear 505 mm/1100 mm
Fork Size 1150 mm/200 mm/65 mm
Distance of Unilateral External Fork 685 mm/560mm
Turning Radius 2125mm/1715mm
Driving Velocity (full/idle) 4.0/5.0 Km/h
Lifting Velocity (full/idle) 80/125 mm/s
Descending Velocity (full/idle) 160/105 mm/s
Climbing Velocity (full/idle) 5%/8%
Drive Motor AC
Drive Motor Power 1.5 kw
Lifting Motor DC
Lifting Motor Power 3 kw
Battery 24 V/210 AH
Battery Weight 200 kg
Weight (including battery) 1300 kg
Steering Type Electronic Steering
Brake System Electromagnetic
Brake Mode Lever Operation
