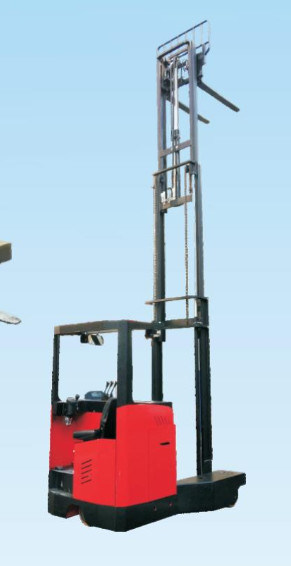

3.0 Ton Four Way Walking Forward Low Noise Hydraulic Seat Style LED Lamp Double Fork Electric Stacker
| Name | Multi-direction seated forklift | |
| Operation type | Seated type | |
| Model | CQD30S | |
| Rated load | kg | 2000 |
| Maximum lifting height | mm | 6000 |
| Load center | mm | 500 |
| Load at maximum | kg | 1000 |
| Tire configuration | Polyurethane solid tire | |
| Fork size | mm | 1070*100*45 |
| Fork adjustment range | mm | 260-820 |
| Overall length | mm | 2480 |
| Overall width | mm | 1800 |
| Height of mast closed | mm | 2680 |
| Height of fork rack when lifting to the max. | mm | 6985 |
| Turning radius | mm | 1900 |
| Minimum channel width of side type | mm | 2900 (1000*1000mm pallet) |
| Height of roof protection frame | mm | 2190 |
| Minimum ground clearance of mast | mm | 80 |
| Maximum driving speed | km/h | 7.0/8.0 |
| Rising speed | mm/s | 120/270 |
| Straight climbing ability | % | ≤8 |
| Side climbing ability | % | ≤5 |
| Total weight | kg | ~3300 |
| Drive wheel | mm | Φ343*135 |
| Front wheel | mm | Φ267*114 |
| Battery capacity | v/ah | 48/400 |
| battery charger | v/a | 48/50 |
| Drive motor | kw | 6.5 |
| Lifting motor | kw | 8 6 |
| Drive control type | 6.5 (AC) | |
| Travel speed regulation mode | Hall accelerator | |
| Service brake | Electromagnetism | |
| Parking brake | Electromagnetism |
The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
Our products are sold all over the world, you can rest assured.
