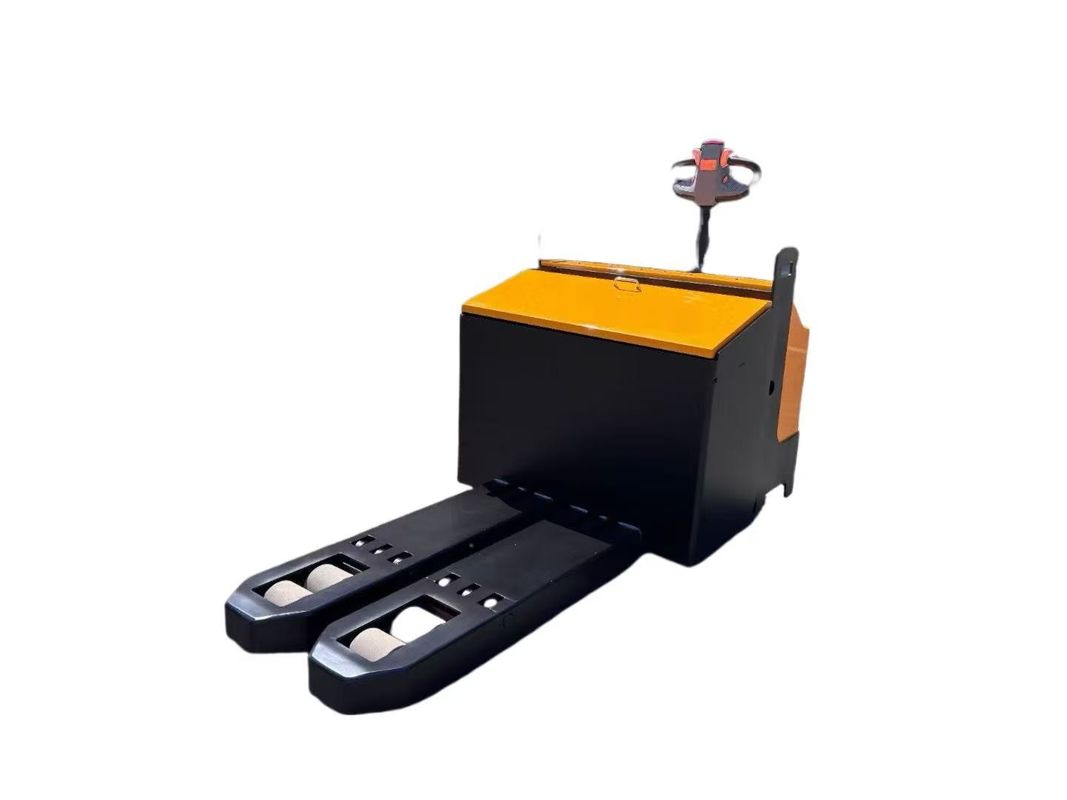

Heavy Electric Pallet/Jack Truck Handling Pallets in Distribution Centers for Order Fulfillment Logistics Sorting & Dispatch Rated 6000 KG
-
Drive MotorAC
-
Steering TypeElectronic Steering
-
Brake ModeLever Operation
-
Maximum Load Capacity6000 Kg
-
Fork Lenght1200 Mm
-
Battery Capacity24V 210AH
-
Place of OriginANHUI, CHINA
-
Brand NameYONGJIELI
-
CertificationCE
-
Model NumberCBD40
-
Document
-
Minimum Order Quantity1 SETS
-
PriceNegotiation
-
Packaging DetailsEXPORT PACKING
-
Delivery Time25 WORK DAYS
-
Payment TermsL/C,T/T,D/A,D/P,Western Union
-
Supply Ability50 SETS PER MONTH
Heavy Electric Pallet/Jack Truck Handling Pallets in Distribution Centers for Order Fulfillment Logistics Sorting & Dispatch Rated 6000 KG
This product has flexible operation and strong time renewal ability, and is suitable for large supermarkets, cigarettes, food, molds, cables, logistics and warehousing industries.
Large tonnage pallet truck
Uniform load capacity: 6000 KG
Fork length:1200 mm
Fork width: 660mm
Fork width: 210mm
Maximum lifting height of fork: 230mm
Battery capacity: 24V210AH
Charging voltage: American standard 110V
CURTIS Control System in the United States
Electronic steering walking style
Advantage:
- Double oil cylinders
- American CURTIS brand drive control system
- Vertical transmission gearbox
- Electronic steering, portable, mute
- Integral hydraulic pump, solenoid valve
- Short circuit and open circuit protection
- Electromagnetic and regenerative braking system
- High and low voltage limits, electrical overheating
- Protection line fault detection, error code diagnosis
- 48V high-capacity lead-acid battery
Product Parameter :
| Name | Electric pallet truck | |
| Model | CBD60 | |
| Load | kg | 6000 |
| Load center | mm | 200 |
| Min. ground clearance | mm | 140 |
| Max. ground clearance | mm | 230 |
| Control form | Side standing | |
| Vehicle width | mm | 1250 |
| Total length of vehicle body | mm | 2220 |
| Fork outer width | mm | 800 |
| Maximum ground clearance of steering wheel | mm | 1275 |
| Turning radius | mm | 2015 |
| Fork size | mm | 3450*280 |
| Right angle stacking channel | mm | 2720 (pallet size 1000*1000) |
| Traveling speed (loaded/ unloaded) | km/h | 5/ 6 |
| Lifting motor (S3-15%) | kw | 4.5 |
| Travel motor (S2-60min) | kw | 4.0 |
| Steering motor | kw | 0.5 |
| Braking form | Electromagnetic braking | |
| Steering form | Electronic steering | |
| Controller | CURTIS | |
| Body weight | kg | 1700 |
| Battery weight | kg | 500 |
| Climbing gradient (full load/ no load) | % | 3/8 |
| Battery capacity | v/ah | 48/400 |
| Charger | v/ah | 48/50 |
| Number of tires, front/ rear (X= drive wheel) | 4/1X+8 | |
| Drive wheel | mm | Φ343 *135 |
| Bearing wheel | mm | Φ125*100 |
| Auxiliary wheel | mm | Φ150*50 |
| Lifting speed (full load/ no load) | mm/s | 40/54 |
| Falling speed (full load/ no load) | mm/s | 55/45 |
| Tire type | Polyurethane | |
| Battery replacement method | Side pull type |
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift with rich experience for more than 5 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM or ODM service?
A4: Yes, we can .
Our products are sold all over the world, you can rest assured.
