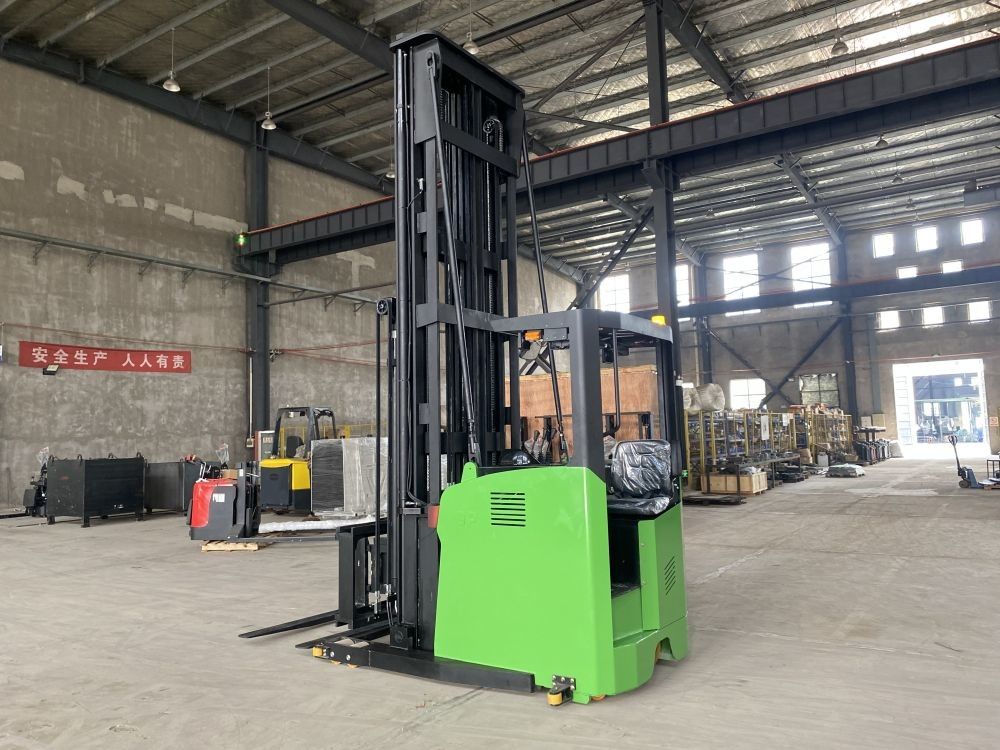

OEM ODM Electric Pallet Lift Standing Pallet Jack Double Oil Cylinders
-
Highlight
ODM Electric Pallet Lift
,OEM Electric Pallet Lift
,Standing Pallet Jack Oil Cylinders
-
Drive MotorAC
-
Power SupplyBattery
-
Tyre MaterialPolyurethane
-
Steering TypeElectronic Steering
-
Brake SystemElectromagnetic
-
Brake ModeLever Operation
-
Place of OriginANHUI, CHINA
-
Brand NameYONGJIELI
-
CertificationCE
-
Model NumberCBD120A
-
Minimum Order Quantity1 SETS
-
PriceUSD4700.00
-
Packaging DetailsEXPORT PACKING
-
Delivery Time10 WORK DAYS
-
Payment TermsL/C, T/T, D/A, D/P, Western Union
-
Supply Ability50 SETS PER MONTH
OEM ODM Electric Pallet Lift Standing Pallet Jack Double Oil Cylinders
OEM&ODE 12 Ton Double Oil Cylinders Electric Pallet Truck Optional Lithium Battery ACDrive
| Name | Electric pallet truck | |
| Model | CBD120 | |
| Load | kg | 12000 |
| Load center | mm | 600 |
| Min. ground clearance | mm | 160 |
| Max. ground clearance | mm | 275 |
| Control form | Stand-on type | |
| Overall width | mm | 1120 |
| Overall length | mm | 2400 (after the pedal is retracted) |
| Fork outer width | mm | 900 |
| Min. height of handle from the ground | mm | 1660 |
| Fork size | mm | 1200*380 |
| Traveling speed (loaded/ unloaded) | km/h | 5/6 |
| Lifting motor | kw | 4.0 |
| Travel motor | kw | 6.5 |
| Steering motor | kw | 0 7 |
| Braking form | Electromagnetic braking | |
| Steering form | Electronic steering | |
| Body weight | kg | ~1900 |
| Climbing gradient | % | ≤4 |
| Battery capacity | v/ah | 48/300 |
| Charger | v/a | 48/40 |
| Number of tires | 4/1X+8 | |
| Drive wheel | mm | Φ343*136 |
| Bearing wheel | mm | Φ150*80 |
| Balance wheel | mm | Φ150*50 |
