Highlight
1.5 Ton Electric Pallet Reach Truck
,Electric Pallet Reach Truck 210*85mm
,Pallet Stacker With Reach 210*85mm
-
Drive MotorAC
-
Power SupplyBattery
-
Tyre MaterialPolyurethane
-
Steering TypeElectronic Steering
-
Brake SystemElectromagnetic
-
Brake ModeLever Operation
-
Place of OriginANHUI, CHINA
-
Brand NameYONGJIELI
-
CertificationCE
-
Model NumberCQD15A
-
Minimum Order Quantity1 SETS
-
PriceUSD2470.00 - USD4700.00
-
Packaging DetailsEXPORT PACKING
-
Delivery Time10 WORK DAYS
-
Payment TermsL/C, T/T, D/A, D/P, Western Union
-
Supply Ability50 SETS PER MONTH

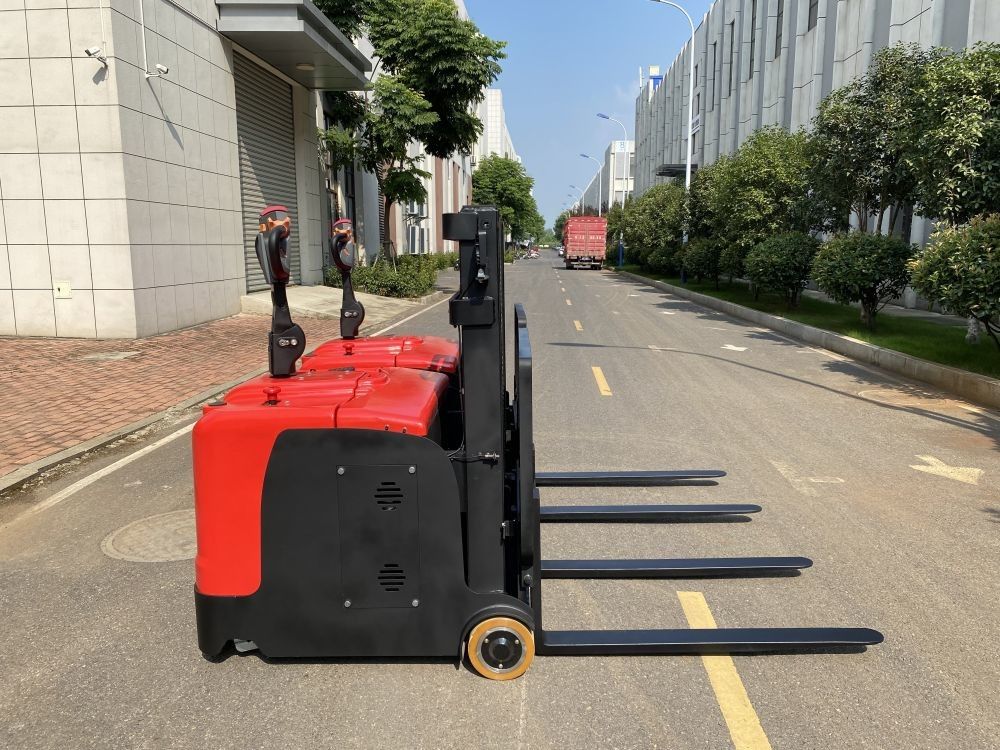

1.5 Ton Electric Pallet Reach Truck 210*85mm Bearing Wheel
1.5 Ton Electric Reach Truck Simple Stand-on Type Electromagnetic Braking Fork Tilts Forward And Backward
| Model | CQD15A | |
| Power type | Battery | |
| Driving mode | Stand-on type | |
| Rated load | kg | 1500 |
| Load center distance | mm | 500 |
| Front overhang distance | mm | 145 |
| Wheelbase | mm | 1400 |
| Vehicle weight | kg | 2000 |
| Tire type | Polyurethane | |
| Bearing wheel | mm | 210*85 |
| Drive wheel | mm | 230*75 |
| Auxiliary wheel | mm | 130*55 |
| Track width, drive side | mm | 684 |
| Track width, bearing side | mm | 990 |
| Height of mast closed | mm | 1830 |
| Free lifting height | mm | / |
| Fork tilt forward and backward | ° | 3/5 |
| Lifting height | mm | 2500 |
| Max. height of mast open | mm | 3485 |
| Panel height | mm | 195 |
| Leg height | mm | 235 |
| Overall length (pedal deployment) | mm | 2345/2850 |
| Overall width | mm | 900/1084 |
| Fork size | mm | 1070/100/35 |
| Shelf width | mm | 1000 |
| Outside width of fork | mm | 240-700 |
| Inner spacing of the legs | mm | 802 |
| Forward position | mm | 450 |
| Mast clearance | mm | 70 |
| Turning radius | mm | 1670/2100 |
| Driving speed(full load/ no load) | km/h | 4.0/5.5 |
| Lifting speed(full load/ no load) | mm/s | 80/150 |
| Descent speed(full load/ no load) | mm/s | 200/105 |
| Max. climbing capacity(full load/ no load) | % | 5/10 |
| Braking mode | Electromagnetic type | |
| Drive motor power | kw | 1.5 |
| Lifting motor power | kw | 3 |
| Battery, voltage/ rated capacity | v/ah | 24/210 |
| Battery weight | kg | 200 |
| Steering system | Electronic Steering | |
| Braking system | Electromagnetic Braking |
