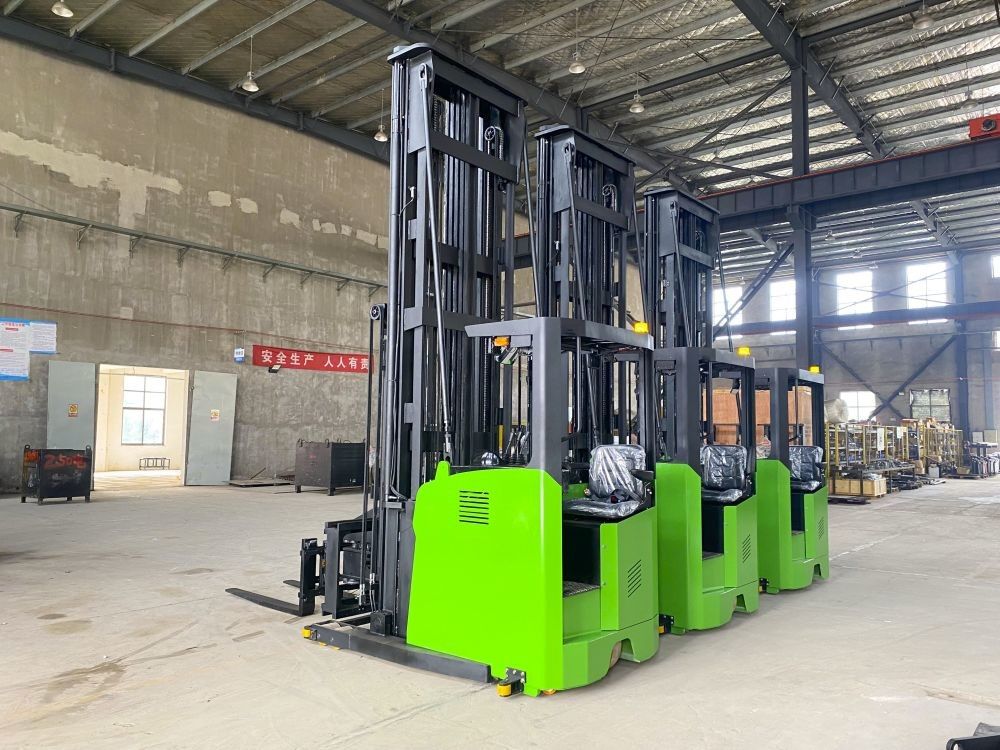

YONGJIELI 2000kg Electric Pallet Truck CE Walkie Electric Reach Truck

YONGJIELI 2000kg Electric Pallet Truck CE Walkie Electric Reach Truck

  • High Light

    2000kg Electric Pallet Truck

    ,

    YONGJIELI Electric Pallet Truck

    ,

    CE Walkie Electric Reach Truck

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CQD20AC
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

YONGJIELI 2000kg Electric Pallet Truck CE Walkie Electric Reach Truck

2.0 Ton Customization Electric Reach Pallet Truck Seat Type Electromagnetic Braking Fork Tilts Forward And Backward

Model   CQD20AC
Power type   Battery
Driving mode   Stand-on type
Rated load kg 2000
Load center distance mm 500
Front overhang distance mm 145
Wheelbase mm 1400
Vehicle weight kg 2000
Tire type   Polyurethane
Bearing wheel mm 210*85
Drive wheel mm 230*75
Auxiliary wheel mm 130*55
Track width, drive side mm 684
Track width, bearing side mm 990
Height of mast closed mm 1830
Free lifting height mm /
Fork tilt forward and backward ° 3/5
Lifting height mm 2500
Max. height of mast open mm 3485
Panel height mm 195
Leg height mm 235
Overall length (pedal deployment) mm 2345/2850
Overall width mm 900/1084
Fork size mm 1070/100/35
Shelf width mm 1000
Outside width of fork mm 240-700
Inner spacing of the legs mm 802
Forward position mm 450
Mast clearance mm 70
Turning radius mm 1670/2100
Driving speed(full load/ no load) km/h 4.0/5.5
Lifting speed(full load/ no load) mm/s 80/150
Descent speed(full load/ no load) mm/s 200/105
Max. climbing capacity(full load/ no load) % 5/10
Braking mode   Electromagnetic type
Drive motor power kw 1.5
Lifting motor power kw 3
Battery, voltage/ rated capacity v/ah 24/210
Battery weight kg 200
Steering system   Electronic Steering
Braking system   Electromagnetic Braking
