Advantage

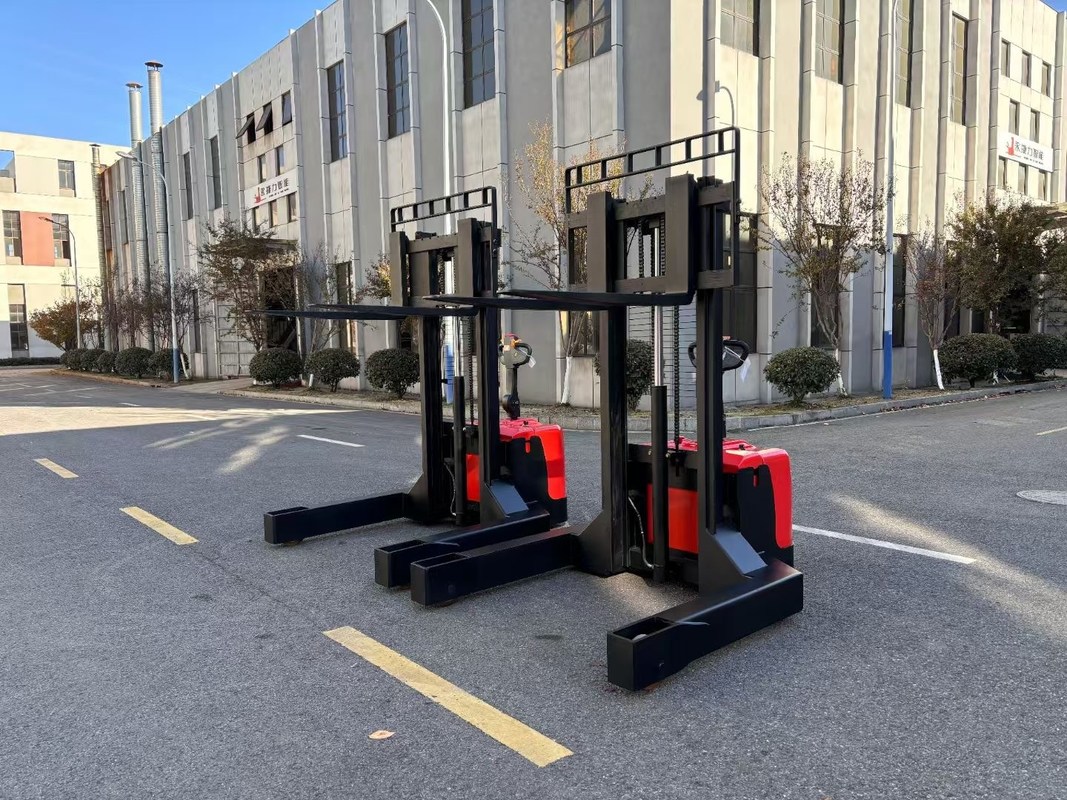

Non standard forklift
Rated load: 3000kg
Height increase: 1700mm
Fork length: 1150mm
Fork width: 400-1120mm
Battery capacity: 24V375AH
Charging voltage: 220V Euro standard
Electronic steering walking style
Curtis Control System
Forged Forklift Hook Lead Acid Battery
Product parameter
| 型号 | Model | CDD30D-17 | |
| 驱动方式 | Type of power | 铅酸电池Lead-acid battery | |
| 驾驶方式 | Driving type | 步行式Walkie type | |
| 额定载荷 | Rated load | Q(kg) | 3000 |
| 起升高度 | Lifting height | h3(mm) | 1700 |
| 总长 | Overall length | L1(mm) | 2067 |
| 总宽 | Overall width | b1/b2 | 850/1360 |
| 货叉尺寸 | Fork dimensions | s/e/l(mm) | 65/190/1150 |
| 货叉外侧距 | Outside width of forks | b5(mm) | 680 |
| 门架闭合高度 | Mast closed height | h1(mm) | 2090 |
| 起升时门架最大高度(含挡货架) | Maximum height of mast during lifting (including load backrest) | h4(mm) | 5100 |
| 挡货架宽度 | Width of load backrest | b3(mm) | 800 |
| 货叉离地高度(最低) | Height of fork off the ground (minimum) | h6(mm) | 86-88 |
| 整车离地间隙 | Height of vehicle off the ground (minimum) | m(mm) | 30 |
| 操纵手柄离地高度 | Height of the operating handle | h5(mm) | 1270 |
| 蓄电池,电压/额定容量 | Battery,voltage/capacity | V/Ah | 24/210 |
| 电池重量 | Weight of battery | kg | 90 |
| 整车重量(含电池) | Vehicle weight (including battery) | kg | 1370 |
| 驱动电机功率(S2-60min) | Driving motor Power (S2-60min) | kw | 1.5(AC) |
| 起升电机功率 | Lifting motor power | kw | 2.2 |
| 轮胎 | Tire | 聚氨酯Polyurethane | |
| 轮胎尺寸,驱动轮 | Tire dimensions,drive wheel | mm | φ250x80 |
| 轮胎尺寸,承重轮 | Tire dimensions,bear wheel | mm | φ85x70 |
| 平衡轮尺寸 | Dimensions of balance wheel | mm | φ130x55 |
| 车轮数量,前/后(x=驱动轮) | Number of wheels,front/rear (x=drive wheel) | 4/1X-3 | |
| 轮距,驱动侧 | Wheel track,drive side | mm | 545 |
| 轮距,承重侧 | Wheel track,bear side | mm | 490 |
| 轴距 | wheelbase | y(mm) | 1421 |
| 载荷中心 | Load center | C(mm) | 600 |
| 前悬距 | Front overhang | x(mm) | 695 |
| 转弯半径 | Turningradius | Wa(mm) | 1637 |
| 堆垛通道宽度(托盘1000x1200)1200跨货叉 | Stacking channel width (pallet 1000x1200)1200 across forks | Ast(mm) | 2511 |
| 堆垛通道宽度(托盘800x1200)1200沿货叉 | Stacking channel width (pallet 800x1200)1200 along the forks | Ast(mm) | 2482 |
| 满载时桥负荷,驱动侧/承重侧 | Full-loadaxle load,drive side/bear side | kg | 1016/2354 |
| 空载时桥负荷,驱动侧/承重侧 | No-load axle load,drive side/bear side | kg | 900/470 |
| 行驶速度,满/空载 | Driving speed,full load/no load | km/h | 3.5/4.0 |
| 起升速度,满/空载 | Lifting speed,full load/no load | mm/s | 80/125 |
| 下降速度,满/空载 | Descent speed,full load/no load | mm/s | 160/105 |
| 最大爬坡能力,满/空载(S2-5min) | Maximum climbing,full load/no load (S2-5min) | % | 6/10 |
| 制动方式 | Braking type | 电磁制动Electromagnetic brake | |
| 转向方式 | Steering type | 机械转向Mechanica steering | |
| 电池更换方式 | Battery replacement method | 吊取式Lifting type | |
|
注:1,以上是CDD20D货叉外侧距为680mm,载荷曲线The above is the load curve of CDD20D fork with outer distance of 680mm 2,货叉外侧距为560mm时,CDD20D在起升高度H1600~2500mm时,不失载；When the outerditance of the forks is560mm,CDD20D wil not lose load when theliting heightHis 1600~2500mm;起升高度H2500~5000mm时,在标准载荷曲线基础上相应降载150kg.When thelifting height His2500~5000mm,theload is reduced by 150kg accordingly based on the standard load curve. |
|||
The company reserves the right to change product design and specifications.Parametersare subject to change without prior notice
