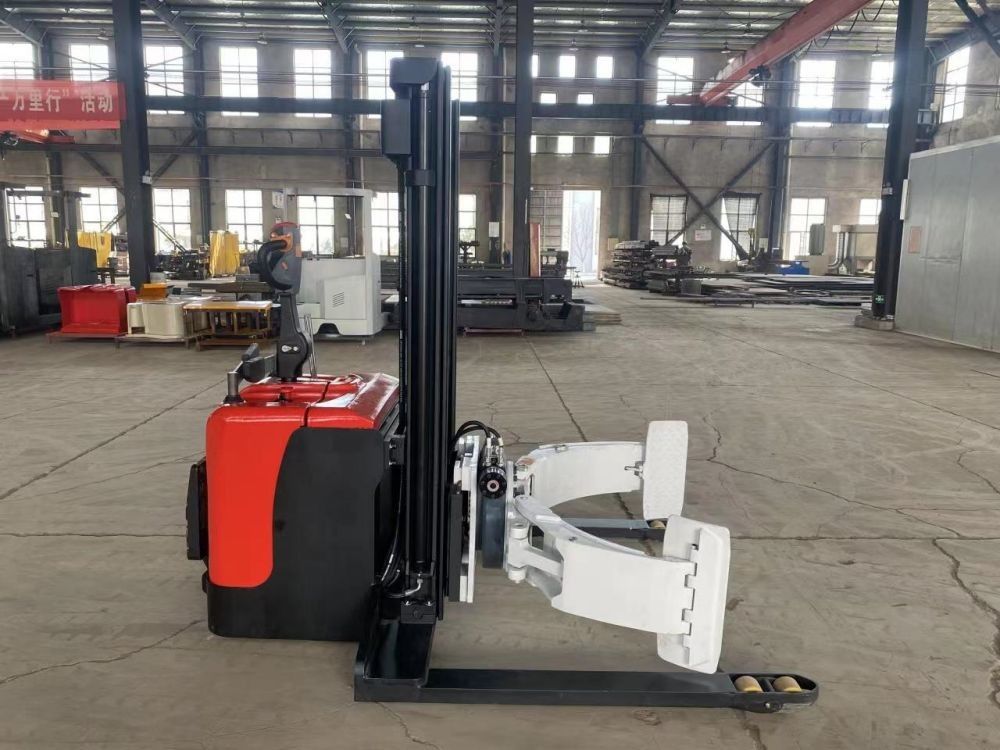

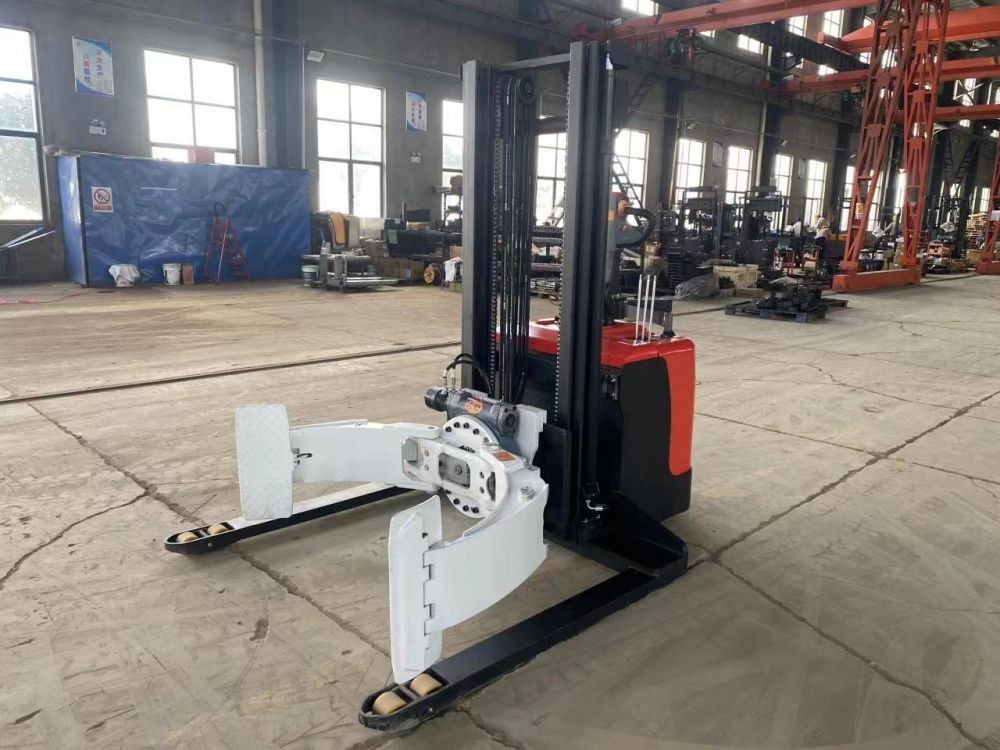

OEM ODM Powered Pallet Stacker 3 Way With Fixed Chucking Clamp

OEM ODM Powered Pallet Stacker 3 Way With Fixed Chucking Clamp

  • High Light

    ODM Powered Pallet Stacker


    Powered Pallet Stacker 3 Way


    3 way pallet stacker Chucking Clamp

  • Power Type
  • Tire Type
  • Mast Type
    Duplex Mast
  • Steering Type
    Electronic Steering
  • Parking Brake Type
    Electromagnetic Braking
  • Name
    Electric Pallet Stacker
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability

OEM ODM Powered Pallet Stacker 3 Way With Fixed Chucking Clamp

OEM & ODM 2000 KG Non-standard Electric Pallet Stacker Walking Sytle With Fixed Chucking Clamp



 The primary purpose of a 3-way pallet stacker is to optimize storage capacity and streamline warehouse operations, particularly in facilities with limited space. With its unique design and capabilities, it allows operators to navigate through narrow aisles and efficiently handle pallets in various orientations, enhancing productivity and maximizing storage utilization.

2.Parameter table

Model   CDD20D-30
Power type   Electric
Operation mode   Walking type
Rated load kg 2000
Load center distance mm 500
Tire type (front/ rear)   Polyurethane
Number of tires   4/1X+1
Mast type   Duplex mast
Standard lifting height mm 3000
Height of mast closed mm 2080
Mast height during lifting mm 3565
Minimum ground clearance of cargo depot mm 85
Overall length mm 2030
Wheelbase mm 1430
Overall width mm 850
Track width (front/ rear) mm 490/545
Fork specifications mm 1150*190*65
Fork side outer distance mm 680/560
Turning radius mm 1645
Channel width (1200x1000 pallets, 1200 horizontal) mm 2515
Travel speed (full load/ no load) km/h 4.0/4.5
Lifting speed (full load/ no load) mm/s 80/125
Descent speed (full load/ no load) mm/s 160/105
Gradient (full load/ no load) % 6/10
Drive motor power kw 1.5
Type of lifting motor   DC
Lifting motor power kw 2.2/3.0
Battery voltage/ capacity v/ah 24/100
Battery weight kg 75
Service weight (incl. battery) kg 850
Steering type   Manual operation
Parking brake type   Electromagnetism
Parking brake operation mode   Handle operation


  1. Energy Efficiency: Many 3-way pallet stackers are designed to be energy-efficient. Electric-powered models utilize rechargeable batteries, which offer quiet operation, zero emissions, and reduced energy consumption compared to internal combustion engines. This not only benefits the environment but also lowers operational costs.

  2. Maintenance and Serviceability: Pallet stackers are built for durability and ease of maintenance. They are constructed with robust components that can withstand the demands of daily use. Additionally, routine maintenance and service procedures are generally straightforward, ensuring minimal downtime and efficient upkeep.

4.Benefits and Applications

  1. Enhanced Safety: The compact design and precise control of 3-way pallet stackers contribute to a safer working environment. Operators have better visibility and control over the equipment, minimizing the risk of accidents and collisions. Additionally, advanced safety features, such as anti-tip mechanisms and emergency stop buttons, further enhance operator safety.

  2. Cost Savings: The efficient use of space, increased productivity, and improved safety offered by 3-way pallet stackers can lead to significant cost savings for businesses. Optimized storage utilization reduces the need for additional warehouse space, while increased productivity translates to faster order fulfillment and reduced labor costs.
