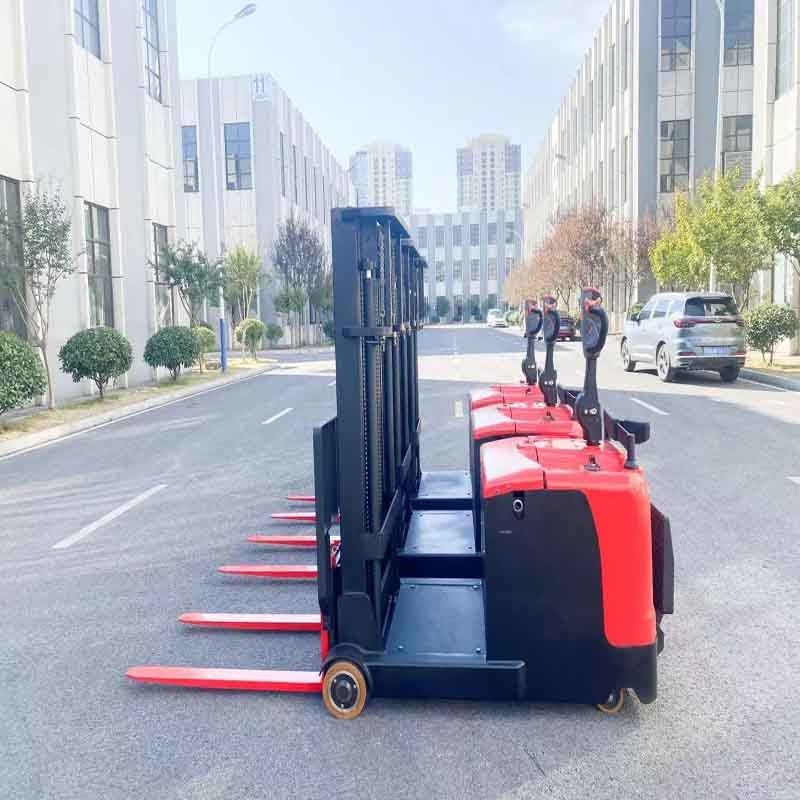

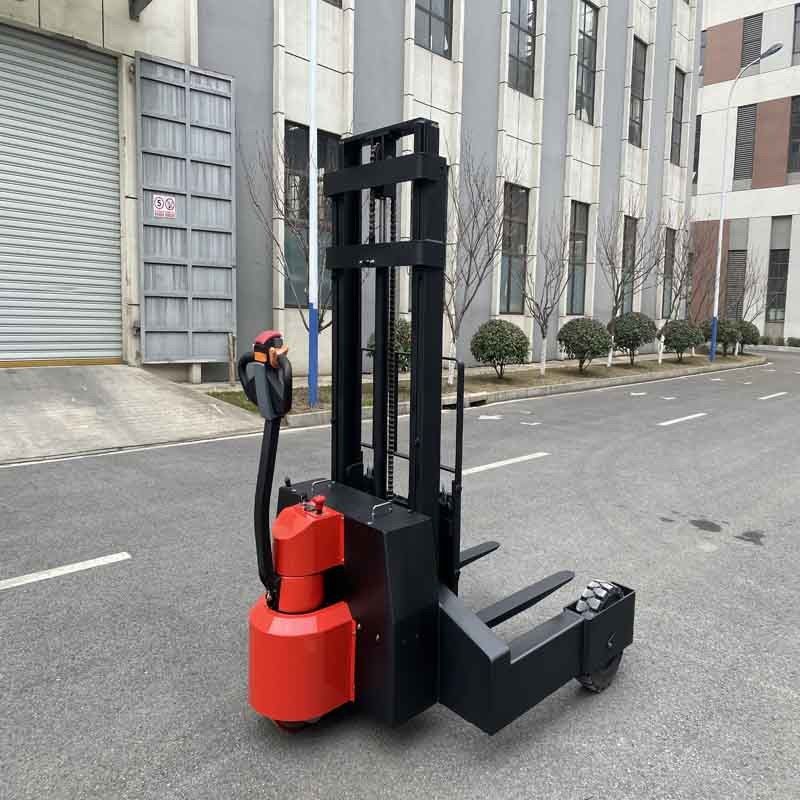

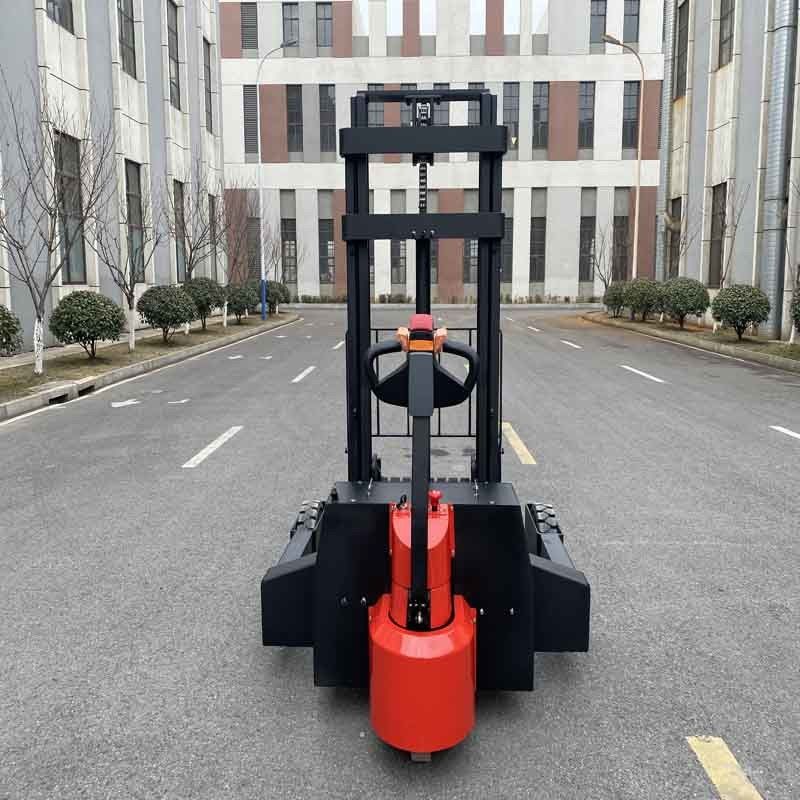

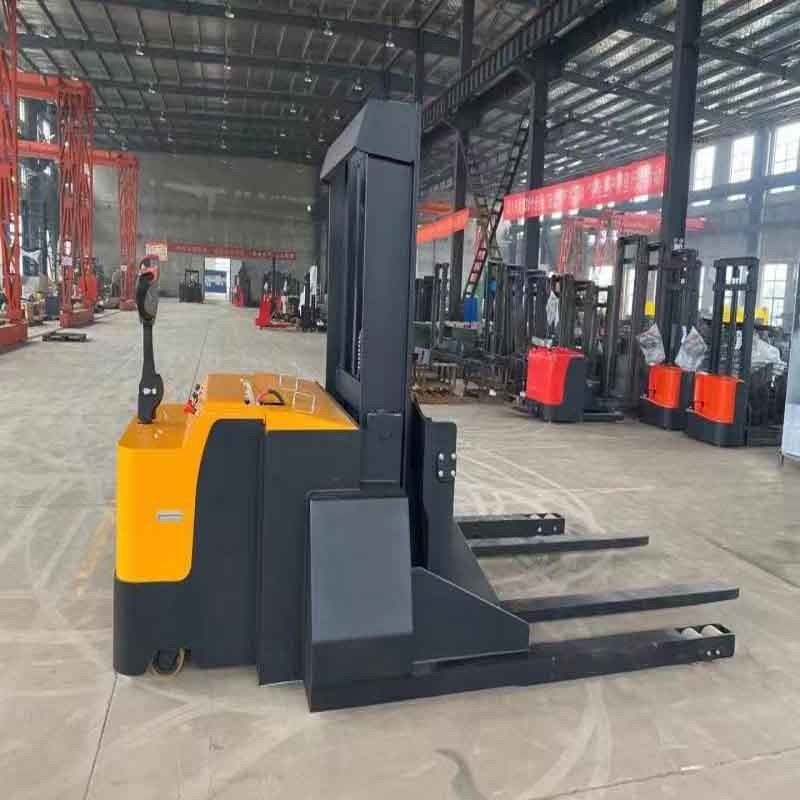

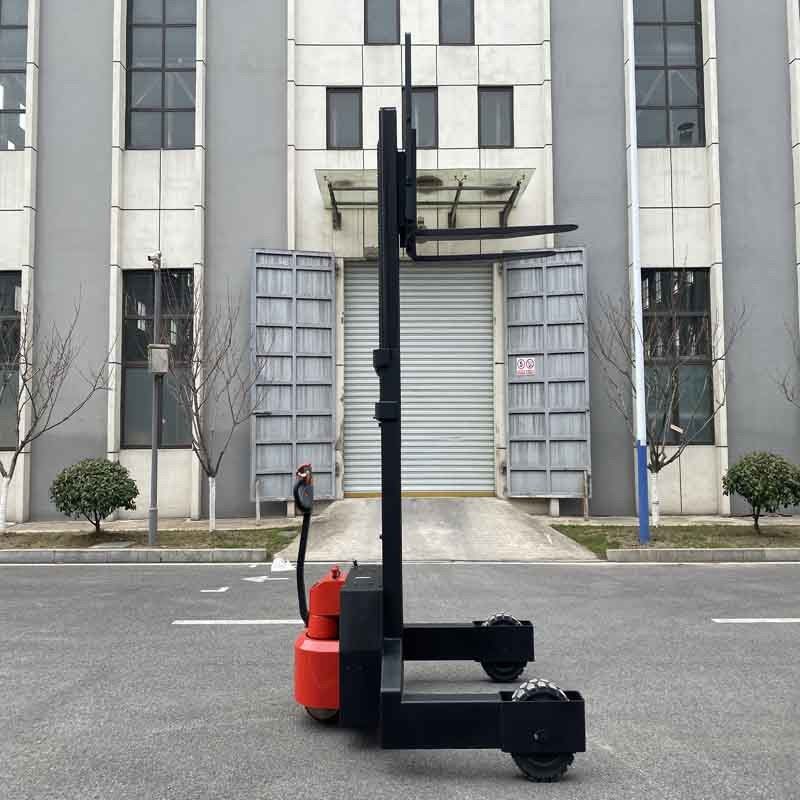

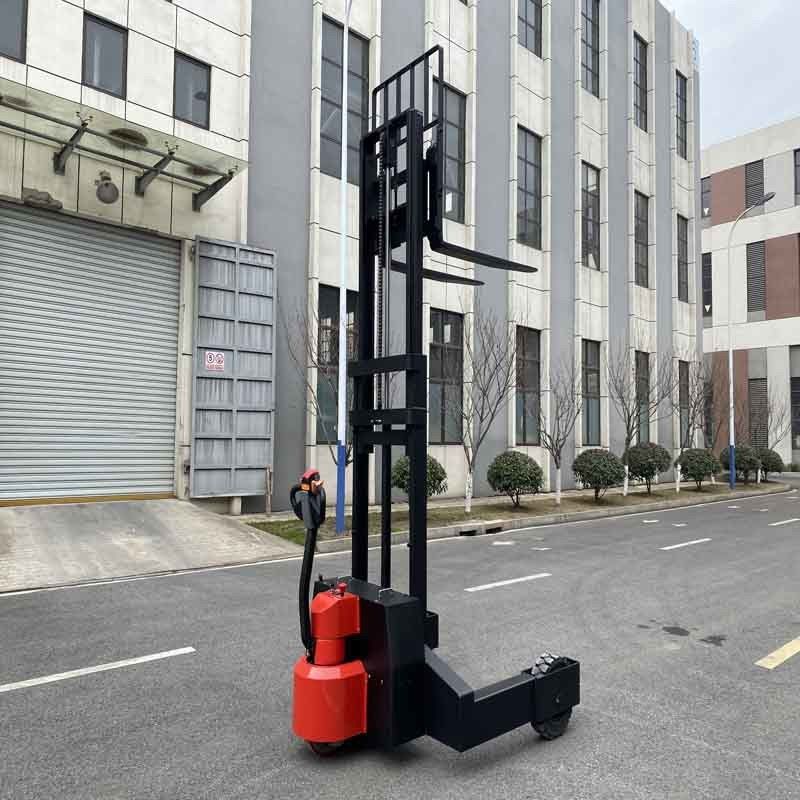

Electric Pallet Stacker AC Drives Strong Climbing Force Optima Batteries Integrated Multifunctional Lever
Advantages:
- Configuration and performance:
- Wide angle view, high-strength shock absorption gantry
- CURITS Brand Drive Control System in the United States
- Zhongnan Transmission
- Electronic steering, lightweight, silent
- Shimadzu brand low noise hydraulic pumps and valves
- Drive speed compensation short circuit and open circuit protection
- Electromagnetic and regenerative braking system
- High and low voltage limits, electrical overheating protection
- Line fault detection and error code diagnosis
- Torch brand 48V high capacity lead-acid battery
Security:
- Automatic deceleration device for bends
- Drive endless speed regulation
- Controller multiple automatic protection system
- Inductive safety seat
- Cylinder safety shut-off valve
- EPS AC
- Low noise hydraulic pump
- LED front headlights
- Side pull battery
| Power Supply |
Battery |
| Driving Mode |
Walking |
| Load |
1500 kg |
| Load Center Distance |
600 mm |
| Weight |
785 kg |
| Tyre Material |
Solid Rubber |
| Drive Wheel |
Φ300 mm*80 mm |
| Load Wheel |
Φ406 mm*110 mm |
| Overall Height |
2130 mm |
| MIN. Grounding clearance of Fork |
60 mm |
| Grounding clearance of Lever |
1320 mm |
| Overall Length |
1960 mm |
| Overall Width |
1580 mm |
| Fork Size |
1070 mm |
| Adjustment Range of Fork |
240 mm -270mm |
| Overall Grounding clearance |
120 mm |
| Inner Width of Outriggers |
1270 mm |
| Turning Radius |
1555 mm |
| Driving Velocity (full/idle) |
3.5/4.5 Km/h |
| Lifting Velocity (full/idle) |
100/150 mm/s |
| Driving Velocity (full/idle) |
4.8/5.0 Km/h |
| Lifting Velocity (full/idle) |
13/25 mm/s |
| Climbing Velocity (full/idle) |
8%/10% |
| Brake System |
Electromagnetic |
| Drive Motor Power |
AC 1.5 kw |
| Lifting Motor Power |
2.2 kw |
| Battery |
24V/100AH |
| Charging Generator |
24V/15A |
Why choose our products? You can obtian the following advantages:
- Dual oil cylinders, wide field mast
-
- CURTIS brand drive control system in the United States
-
- Multifunctional integrated handle
-
- Electronic steering, portable
-
- Bucher brand low noise hydraulic pump from Germany
-
- AC drive, brushless, motor maintenance free
-
- Electromagnetic and regenerative braking system
-
- Lifting limit and long life induction switch
-
- Body damping system, pedal and handle damping
Security:
- Automatic deceleration device for bends
-
- Fork automatically decelerates at high position
-
- Driving stepless speed regulation
-
- Multiple automatic protection systems for controllers
-
- Emergency reverse collision prevention/emergency braking device
-
- Cylinder safety shut-off valve
