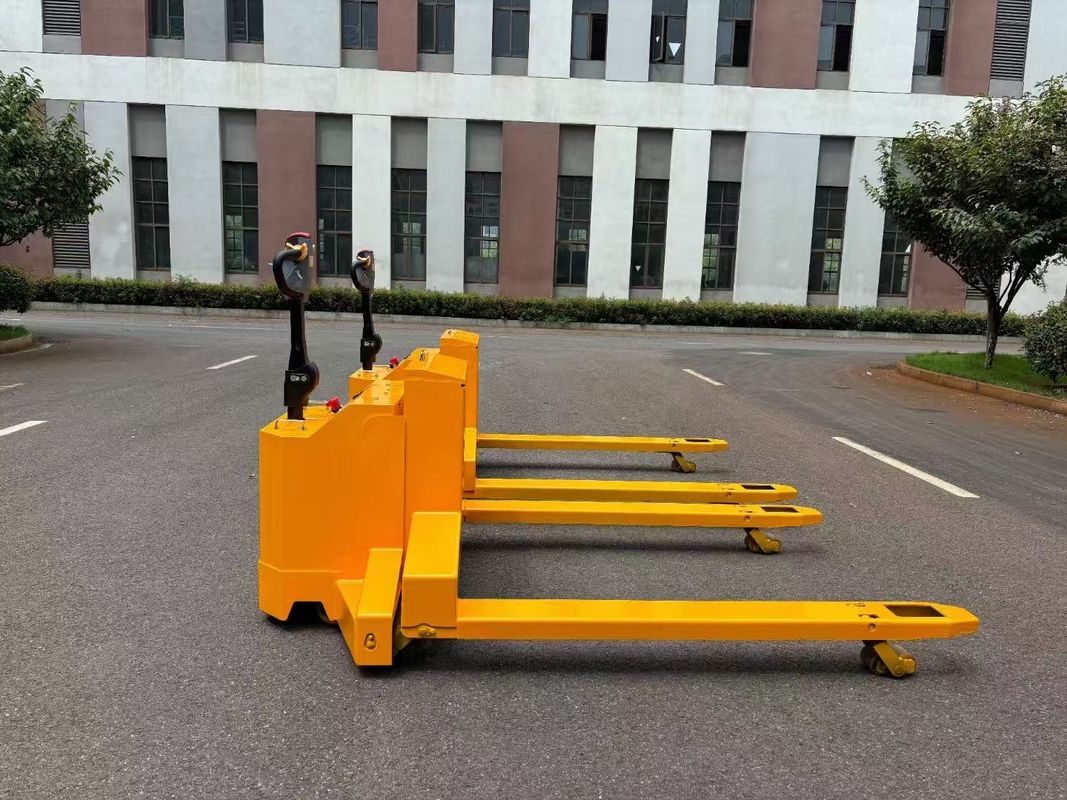

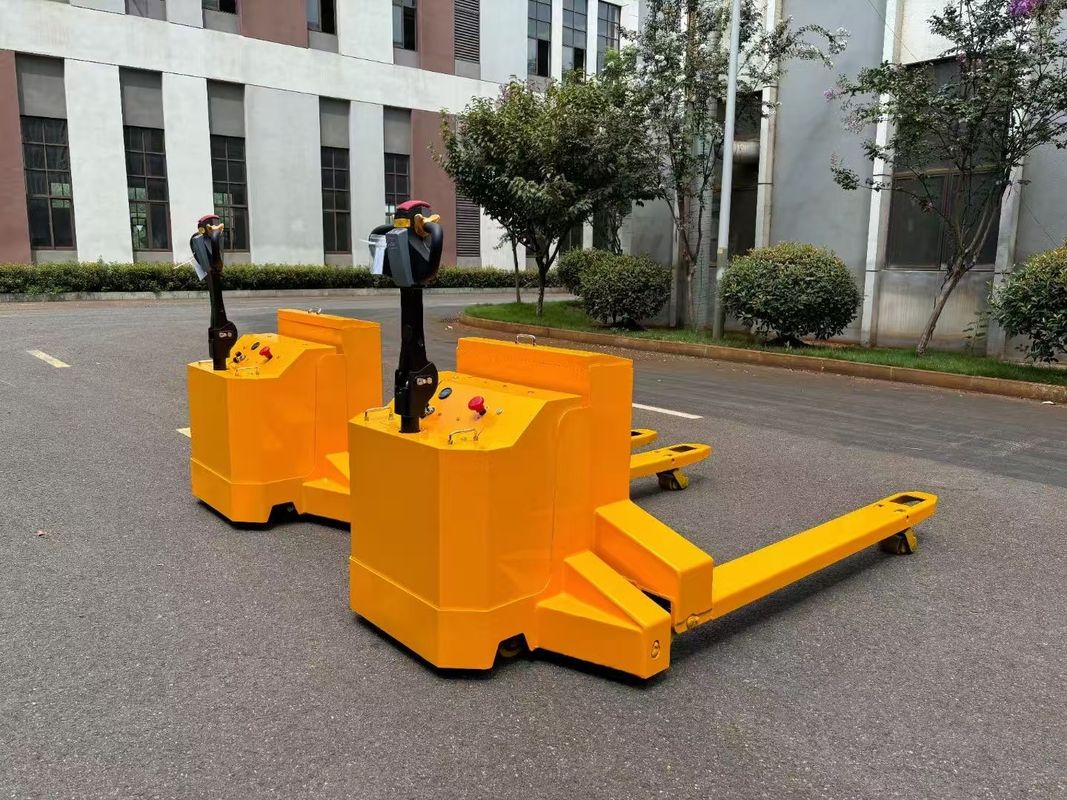

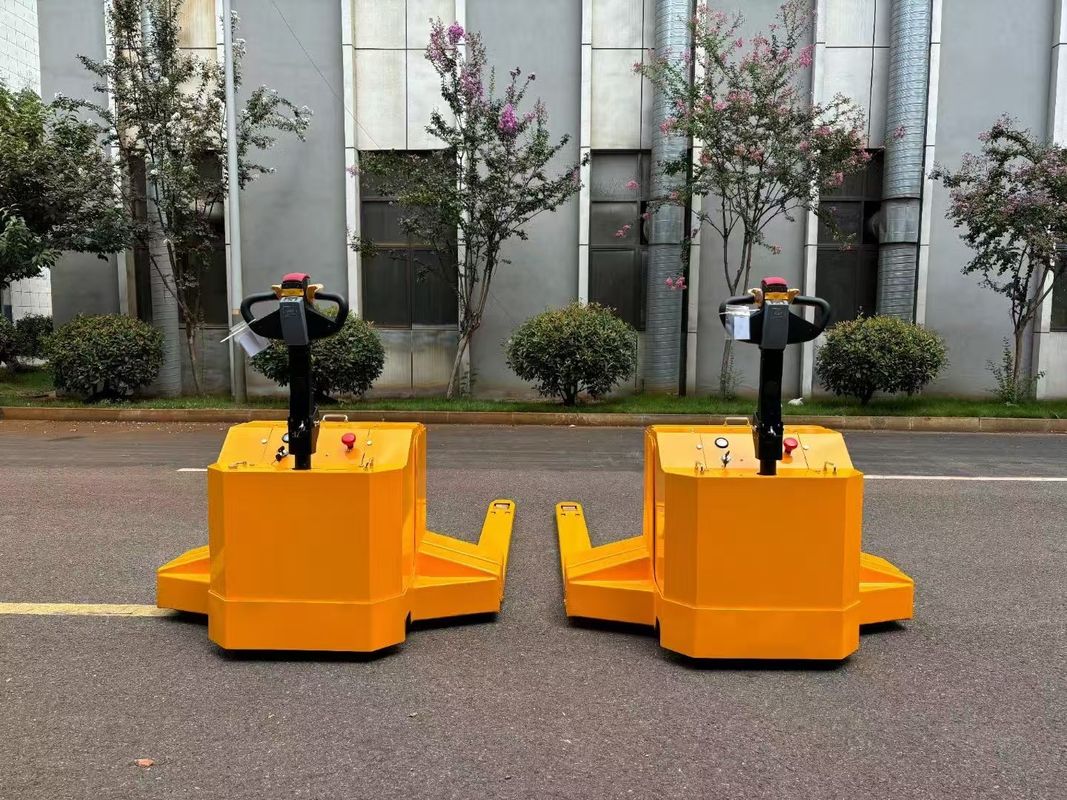

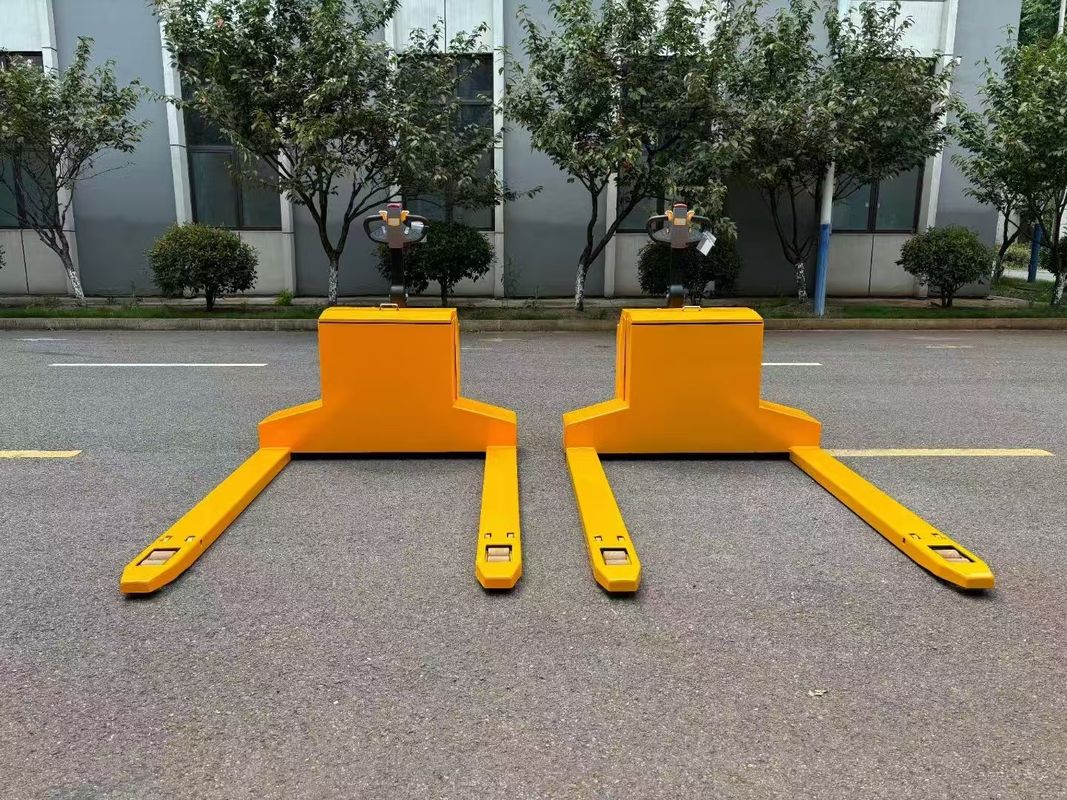

Non standard pallet truck
Rated load: 2000kg
Fork length: 1830mm
Fork width: 1460mm
Ground clearance height: 82.5-210mm
Battery capacity: 24V210AH
Charging voltage: American standard 110V
Electronic steering walking style
The most common type is designed for general use in warehouses, retail stores, and manufacturing facilities. It usually has a durable frame, easy to operate controls, and can handle various load capacities.
Use Case: Suitable for short to medium distance transportation of pallets in flat and smooth environments.
| Name | Electric pallet truck | |
| Model | CBD20 | |
| Load | kg | 2000 |
| Load center | mm | 600 |
| Minimum ground clearance | mm | 90 |
| Maximum ground clearance | mm | 200 |
| Driving mode | Walking type | |
| Overall width | mm | 1460 |
| Overall length | mm | 1070 |
| Fork outer width | mm | 1830 |
| Maximum height of handle from the ground | mm | 1275 |
| Turning Radius | mm | 1645 |
| Fork size | mm | 1150*175*70 |
| Right angle stacking channel (1200 x1000mm) | mm | 2425 |
| Traveling speed (loaded/ unloaded) | mm/s | 3.5/4 |
| Lifting motor (S3-15%) | kw | 0.8 |
| Travel motor (S2-60min) | kw | 1.5 |
| Braking form | Electromagnetic braking | |
| Steering form | Mechanical steering | |
| Body weight | kg | 600 |
| Battery weight | kg | 200 |
| Climbing gradient (full load/ no load) | % | 5/8 |
| Battery capacity | v/ah | 24/210 |
| Charger | v/a | 30 |
| Number of tires (front/ rear) (X= drive wheel) | 4/1X+2 | |
| Drive wheel | mm | Φ230*75 |
| Bearing wheel | mm | Φ85*70 |
| Auxiliary wheel | mm | Φ100 *50 |
| Lifting speed (full load/ no load) | mm/s | 27/35 |
| Falling speed (full load/ no load) | mm/s | 35/35 |
| Tire type | Polyurethane | |
| Battery replacement method | Lifting type |
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift for more than 6 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.We can provice OEM and ODM service.
Our products are sold all over the world, you can rest assured.
