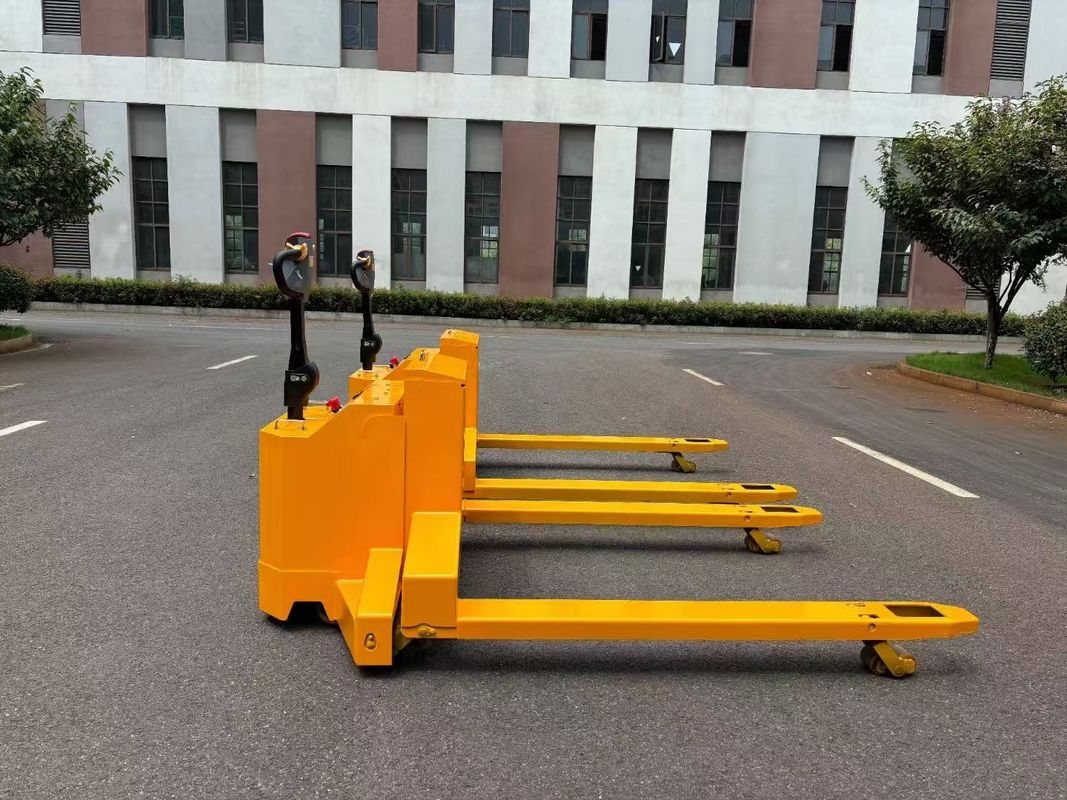

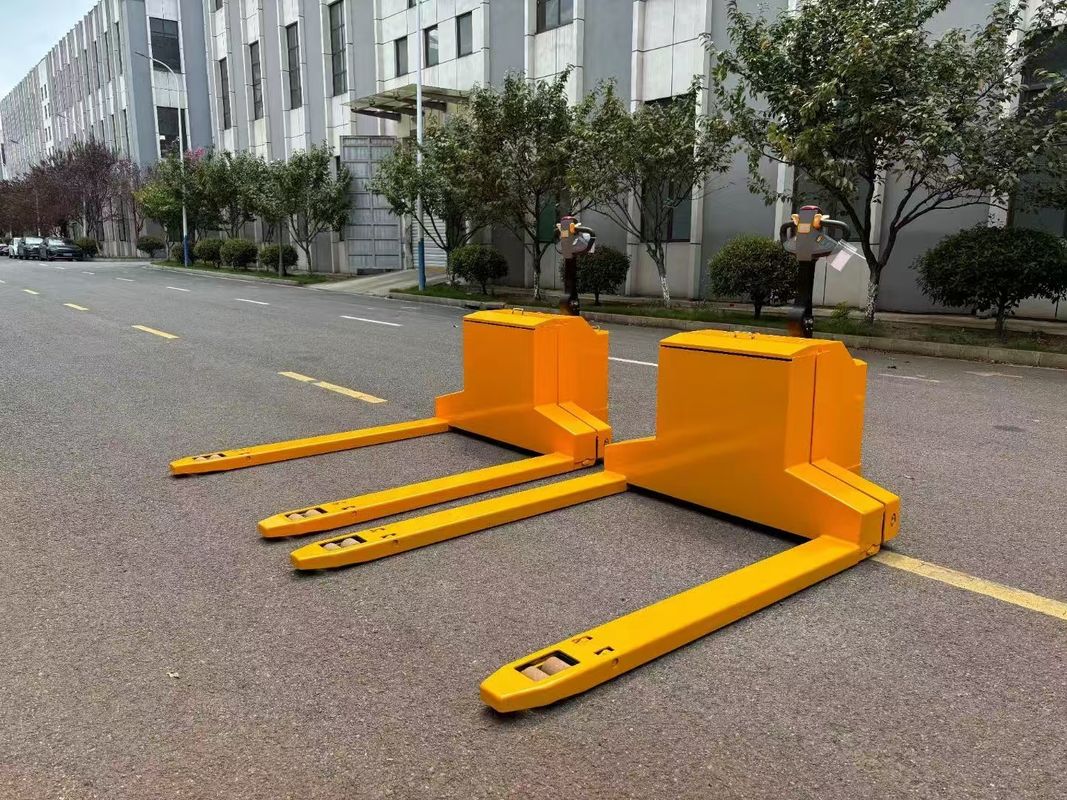

Non standard pallet truck
Rated load: 2000kg
Fork length: 1830mm
Fork width: 1460mm
Ground clearance height: 82.5-210mm
Battery capacity: 24V210AH
Charging voltage: American standard 110V
Electronic steering walking style
Improved Safety
These trucks come with various safety features, such as automatic braking, emergency stop buttons, and anti-rollback systems, reducing the risk of accidents.
Greater Load Capacity
Electric pallet trucks can handle heavier loads compared to manual models, which is beneficial for moving large or bulky items.
Longer Operational Hours
With efficient battery systems, electric pallet trucks can operate for extended periods before needing a recharge, improving workflow continuity.
| Name | Electric pallet truck | |
| Model | CBD20 | |
| Load | kg | 2000 |
| Load center | mm | 600 |
| Minimum ground clearance | mm | 90 |
| Maximum ground clearance | mm | 200 |
| Driving mode | Walking type | |
| Overall width | mm | 760 |
| Overall length | mm | 1070 |
| Fork outer width | mm | 230 |
| Maximum height of handle from the ground | mm | 1275 |
| Turning Radius | mm | 1645 |
| Fork size | mm | 1150*175*70 |
| Right angle stacking channel (1200 x1000mm) | mm | 2425 |
| Traveling speed (loaded/ unloaded) | mm/s | 3.5/4 |
| Lifting motor (S3-15%) | kw | 0.8 |
| Travel motor (S2-60min) | kw | 1.5 |
| Braking form | Electromagnetic braking | |
| Steering form | Mechanical steering | |
| Body weight | kg | 600 |
| Battery weight | kg | 200 |
| Climbing gradient (full load/ no load) | % | 5/8 |
| Battery capacity | v/ah | 210 |
| Charger | v/a | 30 |
| Number of tires (front/ rear) (X= drive wheel) | 4/1X+2 | |
| Drive wheel | mm | Φ230*75 |
| Bearing wheel | mm | Φ85*70 |
| Auxiliary wheel | mm | Φ100 *50 |
| Lifting speed (full load/ no load) | mm/s | 27/35 |
| Falling speed (full load/ no load) | mm/s | 35/35 |
| Tire type | Polyurethane | |
| Battery replacement method | Lifting type |
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift for more than 6 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.We can provice OEM and ODM service.
Our products are sold all over the world, you can rest assured.
