Uses of Electric Pallet Trucks
Electric pallet trucks are widely used in logistics and warehouses for their ability to accurately and smoothly lift, lower, and transport pallets, even in confined spaces.
Electric pallet trucks, which are capable of self-propulsion, have been introduced to meet the needs of heavy pallet lifting, lowering, and carrying, including self-propulsion.

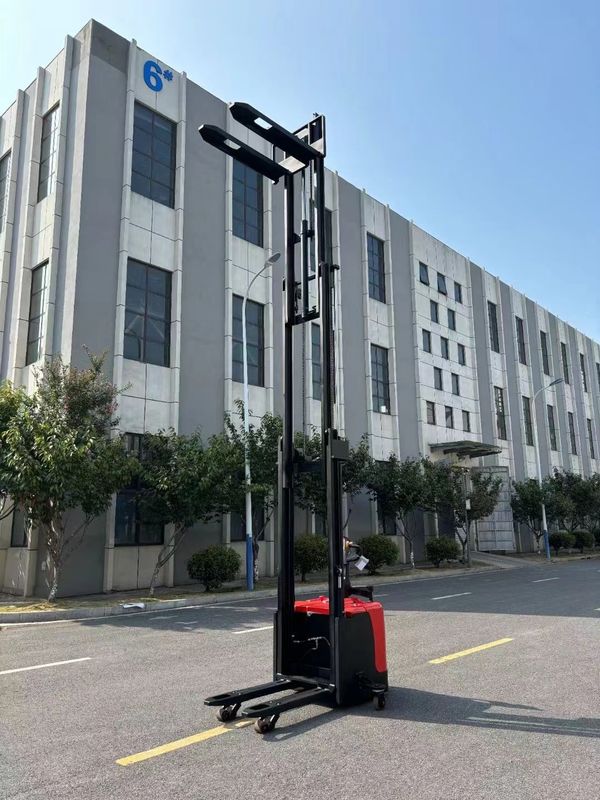

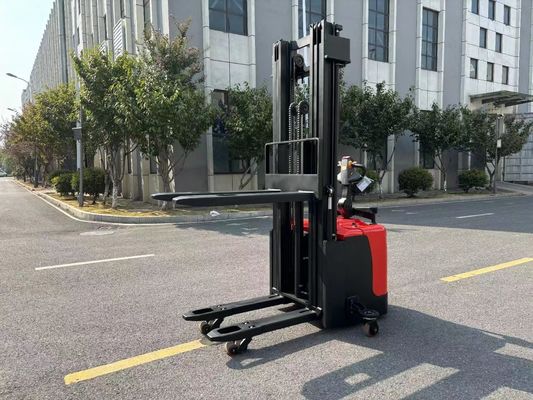

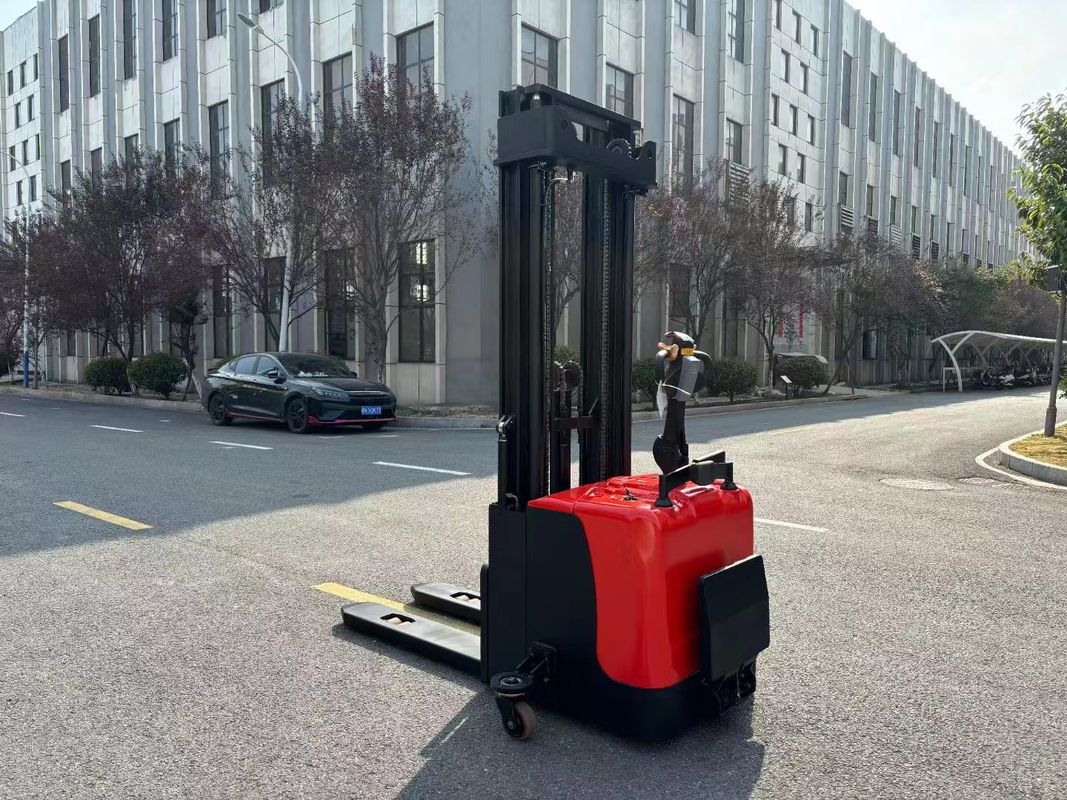

Double lift stacker truck
Rated load: 1500kg
Height increase: 5500mm
Fork length: 1150mm
Fork width: 685mm
Battery capacity: 24V210AH
Electronic steering pedal protection arm
Name | Electric pallet truck | |
Model | CBD15 | |
Load | kg | 1500 |
Load center | mm | 600 |
Minimum ground clearance | mm | 90 |
Maximum ground clearance | mm | 200 |
Driving mode | Stand-by type | |
Overall width | mm | 685 |
Overall length | mm | 1070 |
Fork outer width | mm | 230 |
Maximum height of handle from the ground | mm | 1275 |
Turning Radius | mm | 1645 |
Fork size | mm | 1150*175*70 |
Right angle stacking channel (1200 x1000mm) | mm | 2425 |
Traveling speed (loaded/ unloaded) | mm/s | 3.5/4 |
Lifting motor (S3-15%) | kw | 0.8 |
Travel motor (S2-60min) | kw | 1.5 |
Braking form | Electromagnetic braking | |
Steering form | Mechanical steering | |
Body weight | kg | 600 |
Battery weight | kg | 200 |
Climbing gradient (full load/ no load) | % | 5/8 |
Battery capacity | v/ah | 210 |
Charger | v/a | 30 |
Number of tires (front/ rear) (X= drive wheel) | 4/1X+2 | |
Drive wheel | mm | Φ230*75 |
Bearing wheel | mm | Φ85*70 |
Auxiliary wheel | mm | Φ100 *50 |
Lifting speed (full load/ no load) | mm/s | 27/35 |
Falling speed (full load/ no load) | mm/s | 35/35 |
Tire type | Polyurethane | |
Battery replacement method | Lifting type |
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift for more than 6 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.We can provice OEM and ODM service.
