1.5 Ton 5.5m Electric Powered Pallet Stacker With 24V Battery

1.5 Ton 5.5m Electric Powered Pallet Stacker With 24V Battery

  • Highlight

    1.5 Ton Electric Powered Pallet Stacker

    ,

    5.5m Electric Powered Pallet Stacker

    ,

    24V Electric Powered Pallet Stacker

  • Rated Load Capacity
    1500 Kg
  • Fork Width
    685 Mm
  • Battery Capacity
    24V210AH
  • Fork Lenght
    5500 Mm
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CBD15-55
  • Minimum Order Quantity
    1 PC
  • Price
    $2800.00-$3800.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

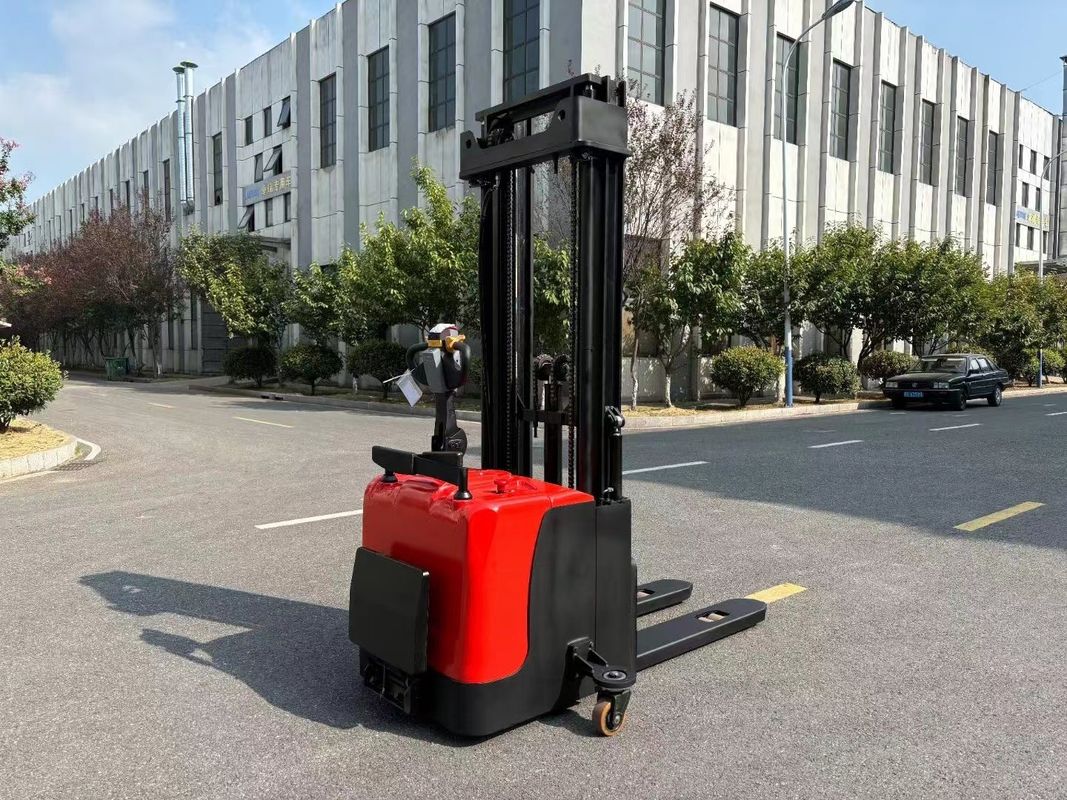

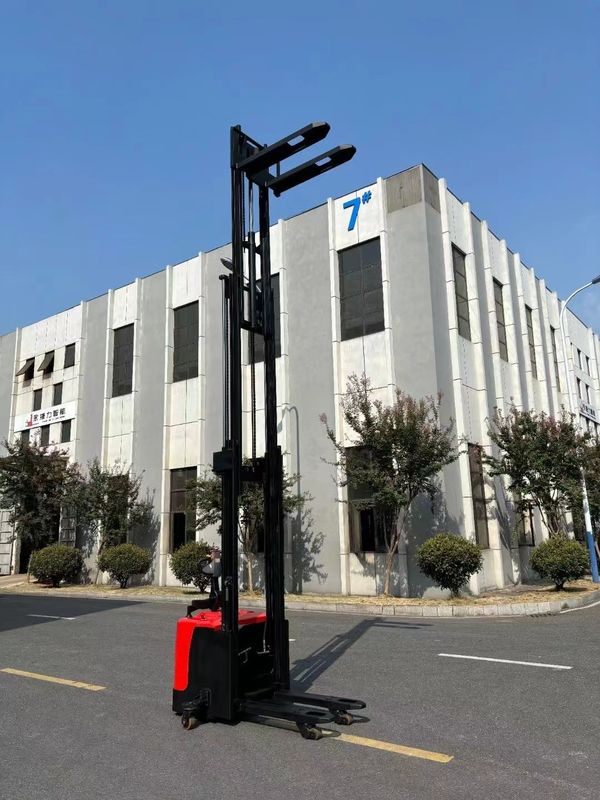

1.5 Ton 5.5m Electric Powered Pallet Stacker With 24V Battery

Electric stacker

  •
  • High working efficiency due to high-performance lift pump
  • Optimum steering radius and large field of vision due to lateral steering drawbar
  • Powerful permanent magnet motor
  • Four-colour LED power meter makes it easy to read the energy level
  • Internal charger allows easy charging at any standard 210 V socket
  • Steel guard reduces damage and injury



Name   Electric pallet truck
Model   CBD15
Load kg 1500
Load center mm 600
Minimum ground clearance mm 90
Maximum ground clearance mm 200
Driving mode   Walking type
Overall width mm 685
Overall length mm 1070
Fork outer width mm 230
Maximum height of handle from the ground mm 1275
Turning Radius mm 1645
Fork size mm 1150*175*70
Right angle stacking channel (1200 x1000mm) mm 2425
Traveling speed (loaded/ unloaded) mm/s 3.5/4
Lifting motor (S3-15%) kw 0.8
Travel motor (S2-60min) kw 1.5
Braking form   Electromagnetic braking
Steering form   Mechanical steering
Body weight kg 600
Battery weight kg 200
Climbing gradient (full load/ no load) % 5/8
Battery capacity v/ah 210
Charger v/a 30
Number of tires (front/ rear) (X= drive wheel)   4/1X+2
Drive wheel mm Φ230*75
Bearing wheel mm Φ85*70
Auxiliary wheel mm Φ100 *50
Lifting speed (full load/ no load) mm/s 27/35
Falling speed (full load/ no load) mm/s 35/35
Tire type   Polyurethane
Battery replacement method   Lifting type





FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 6  years.



Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you provide OEM service?

A4: Yes.We can provice OEM and ODM service.
