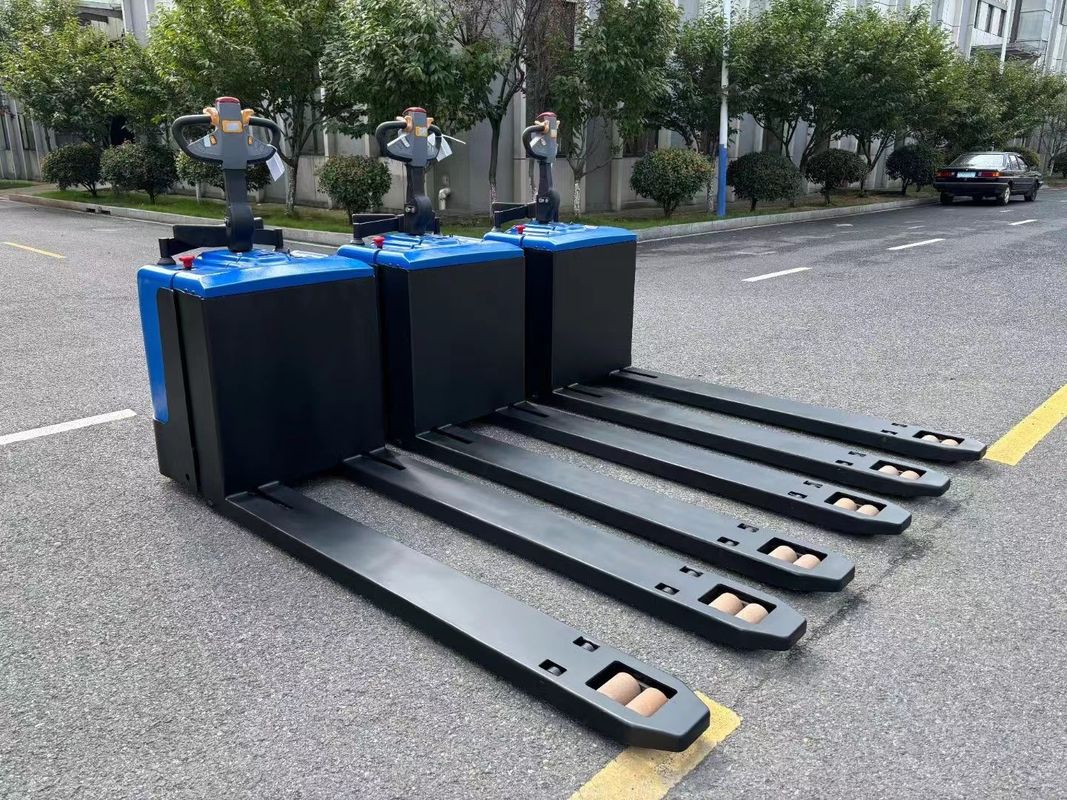

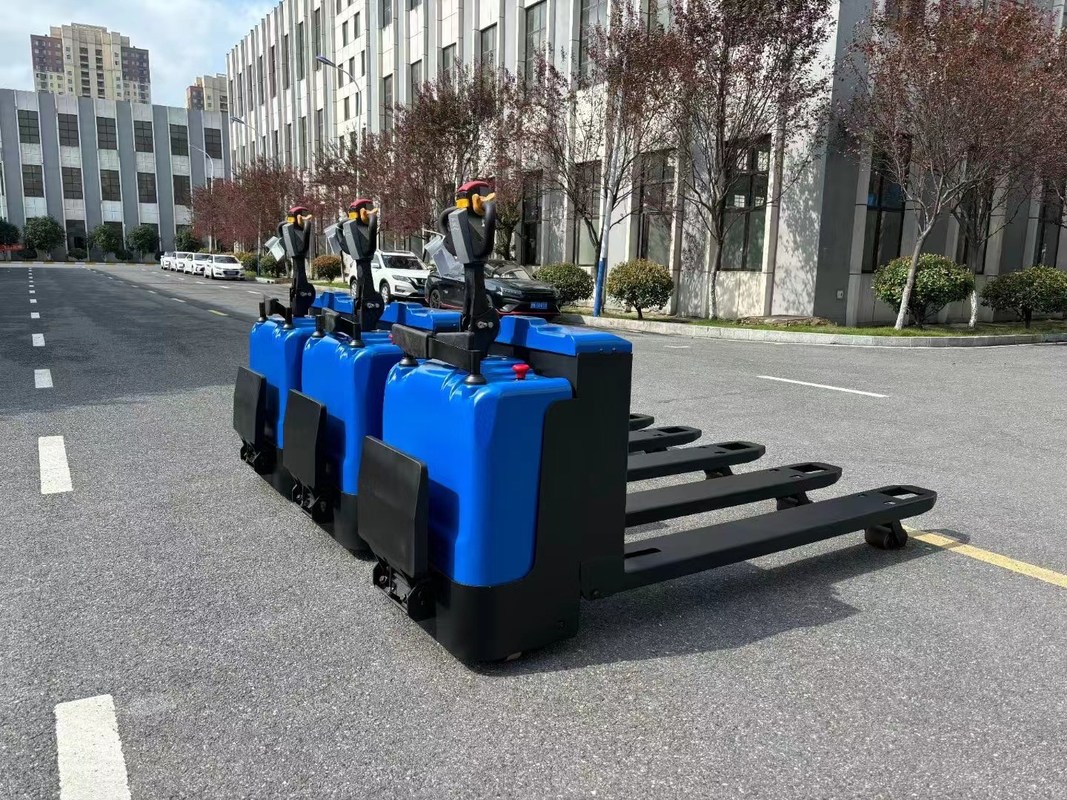

Non Standard Electric Pallet Truck Jack 3000 KGS Fork Outer-width 230 Mm

Non Standard Electric Pallet Truck Jack 3000 KGS Fork Outer-width 230 Mm

  • Highlight

    Non standard Electric Pallet Truck Jack

    ,

    3000 KGS Electric Pallet Truck Jack

    ,

    230 mm Electric Pallet Truck Jack

  • Rated Load Capacity
    3000 Kg
  • Fork Width
    760 Mm
  • Fork Outer Width
    230 Mm
  • Battery Capacity
    25.6 V 200 AH
  • Fork Lenght
    2000 Mm
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CBD10
  • Minimum Order Quantity
    1 PC
  • Price
    $2800.00-$3800.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Non Standard Electric Pallet Truck Jack 3000 KGS Fork Outer-width 230 Mm

The advantages of using an electric pallet truck are as follows:

  • Electric pallet trucks minimize the need for manual lifting and pushing, reducing physical strain on workers and improving overall ergonomics.
  • They allow for faster and more efficient movement of goods, which enhances productivity and speeds up operations in warehouses and distribution centers.
  • Electric pallet trucks are designed for easy maneuverability in tight spaces, making them ideal for narrow aisles and crowded environments.
  • These trucks come with various safety features, such as automatic braking, emergency stop buttons, and anti-rollback systems, reducing the risk of accidents.
  • Electric pallet trucks can handle heavier loads compared to manual models, which is beneficial for moving large or bulky items.

Here are suitable work scenarios for pallet trucks/ Jacks

  • Pallet trucks are widely used in warehouses for moving goods from one area to another, especially in storage and distribution centers where large volumes of products are handled.
  • In retail environments, pallet trucks help in transporting products from the backroom or storage areas to the sales floor, making it
Name   Electric pallet truck
Model   CBD20
Load kg 2000
Load center mm 600
Minimum ground clearance mm 90
Maximum ground clearance mm 200
Driving mode   Walking type
Overall width mm 915
Overall length mm 1070
Fork outer width mm 685/560
Maximum height of handle from the ground mm 1275
Turning Radius mm 1645
Fork size mm 1150*175*70
Right angle stacking channel (1200 x1000mm) mm 2425
Traveling speed (loaded/ unloaded) mm/s 3.5/4
Lifting motor (S3-15%) kw 0.8
Travel motor (S2-60min) kw 1.5
Braking form   Electromagnetic braking
Steering form   Mechanical steering
Body weight kg 600
Battery weight kg 200
Climbing gradient (full load/ no load) % 5/8
Battery capacity v/ah 210
Charger v/a 30
Number of tires (front/ rear) (X= drive wheel)   4/1X+2
Drive wheel mm Φ230*75
Bearing wheel mm Φ85*70
Auxiliary wheel mm Φ100 *50
Lifting speed (full load/ no load) mm/s 27/35
Falling speed (full load/ no load) mm/s 35/35
Tire type   Polyurethane
Battery replacement method   Lifting type





FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 6  years.



Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you provide OEM service?

A4: Yes.We can provice OEM and ODM service.
