Electric Pallet Lifter Jack  Walkie Body Material OEM SUS 304 Load  2 Tons Mechanical Steering

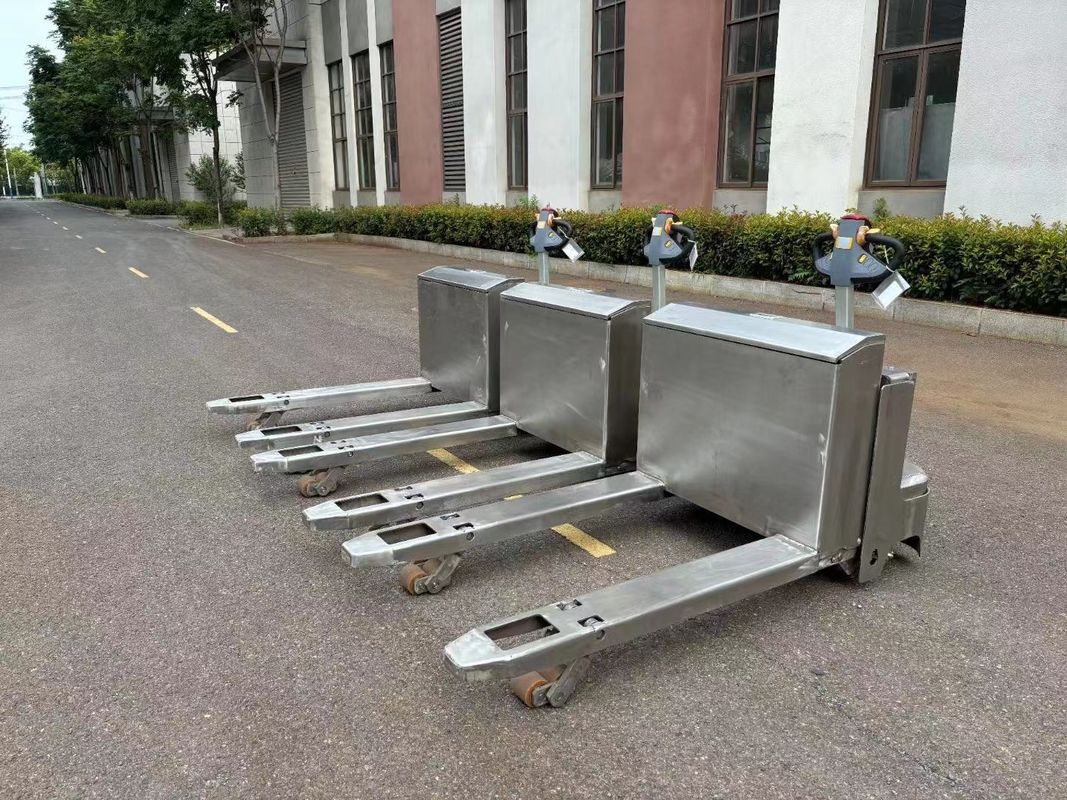

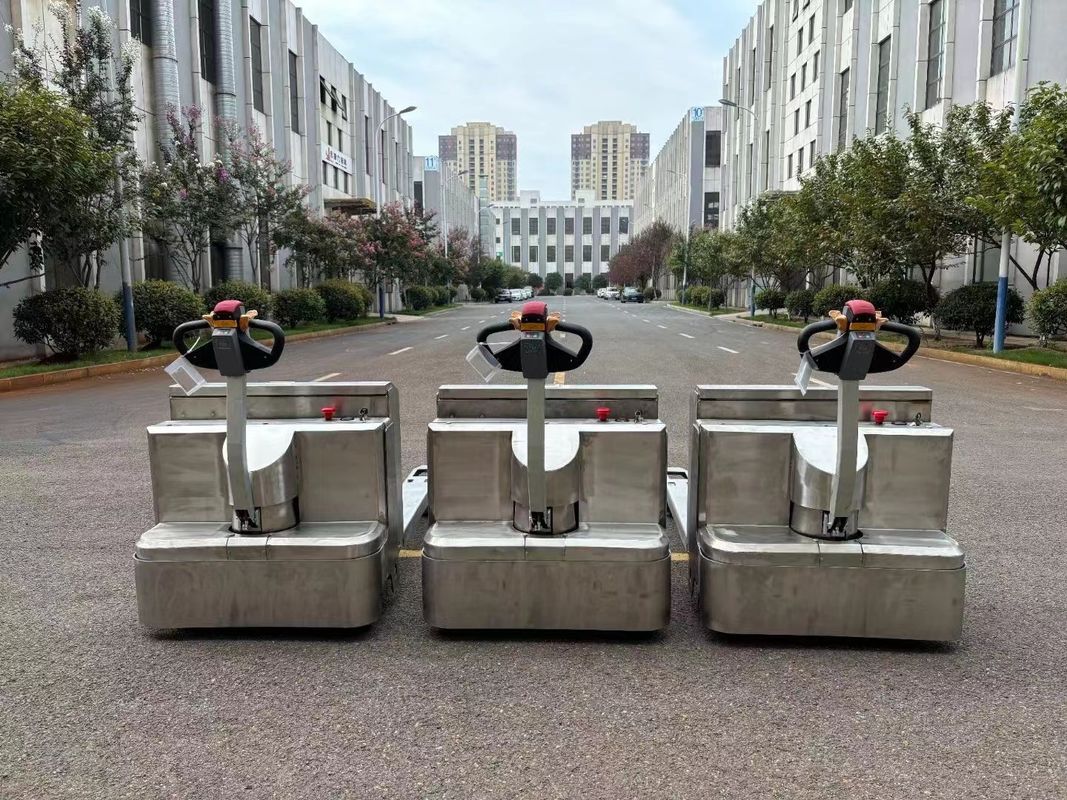

Electric Pallet Lifter Jack Walkie Body Material OEM SUS 304 Load 2 Tons Mechanical Steering

  • Rated Load Capacity
    2000 Kg
  • Fork Outer Lenght
    1295 Mm
  • Fork Outer Width
    915 Mm
  • Battery Capacity
    24V210AH
  • Body Material
    SUS 304
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CBD10
  • Minimum Order Quantity
    1 PC
  • Price
    $2800.00-$3800.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Electric Pallet Lifter Jack Walkie Body Material OEM SUS 304 Load 2 Tons Mechanical Steering

Here are the characteristics of an electric pallet truck :

  • Effortless Operation
  • Increased Productivity
  • Enhanced Maneuverability
  • Load Capacity
  • Long Battery Life
  • Safety Features
  • Low Maintenance
  • Environmental Benefits

Here are suitable work scenarios for pallet trucks/ Jacks

  • Pallet trucks are widely used in warehouses for moving goods from one area to another, especially in storage and distribution centers where large volumes of products are handled.
  • In retail environments, pallet trucks help in transporting products from the backroom or storage areas to the sales floor, making it easier to restock shelves.
  • Manufacturing facilities use pallet trucks to move raw materials and finished products between different stages of the production process.



Name   Electric pallet truck
Model   CBD20
Load kg 2000
Load center mm 600
Minimum ground clearance mm 90
Maximum ground clearance mm 200
Driving mode   Walking type
Overall width mm 915
Overall length mm 1070
Fork outer width mm 685/560
Maximum height of handle from the ground mm 1275
Turning Radius mm 1645
Fork size mm 1150*175*70
Right angle stacking channel (1200 x1000mm) mm 2425
Traveling speed (loaded/ unloaded) mm/s 3.5/4
Lifting motor (S3-15%) kw 0.8
Travel motor (S2-60min) kw 1.5
Braking form   Electromagnetic braking
Steering form   Mechanical steering
Body weight kg 600
Battery weight kg 200
Climbing gradient (full load/ no load) % 5/8
Battery capacity v/ah 210
Charger v/a 30
Number of tires (front/ rear) (X= drive wheel)   4/1X+2
Drive wheel mm Φ230*75
Bearing wheel mm Φ85*70
Auxiliary wheel mm Φ100 *50
Lifting speed (full load/ no load) mm/s 27/35
Falling speed (full load/ no load) mm/s 35/35
Tire type   Polyurethane
Battery replacement method   Lifting type





FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 6  years.



Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you provide OEM service?

A4: Yes.We can provice OEM and ODM service.
