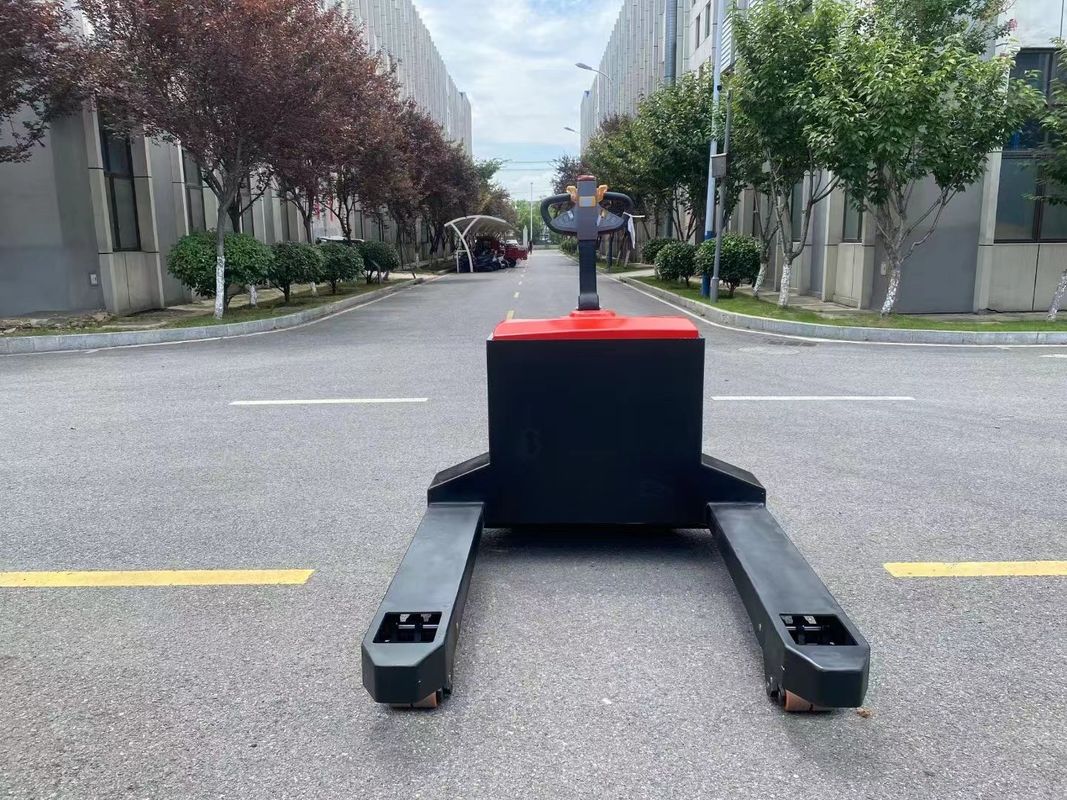

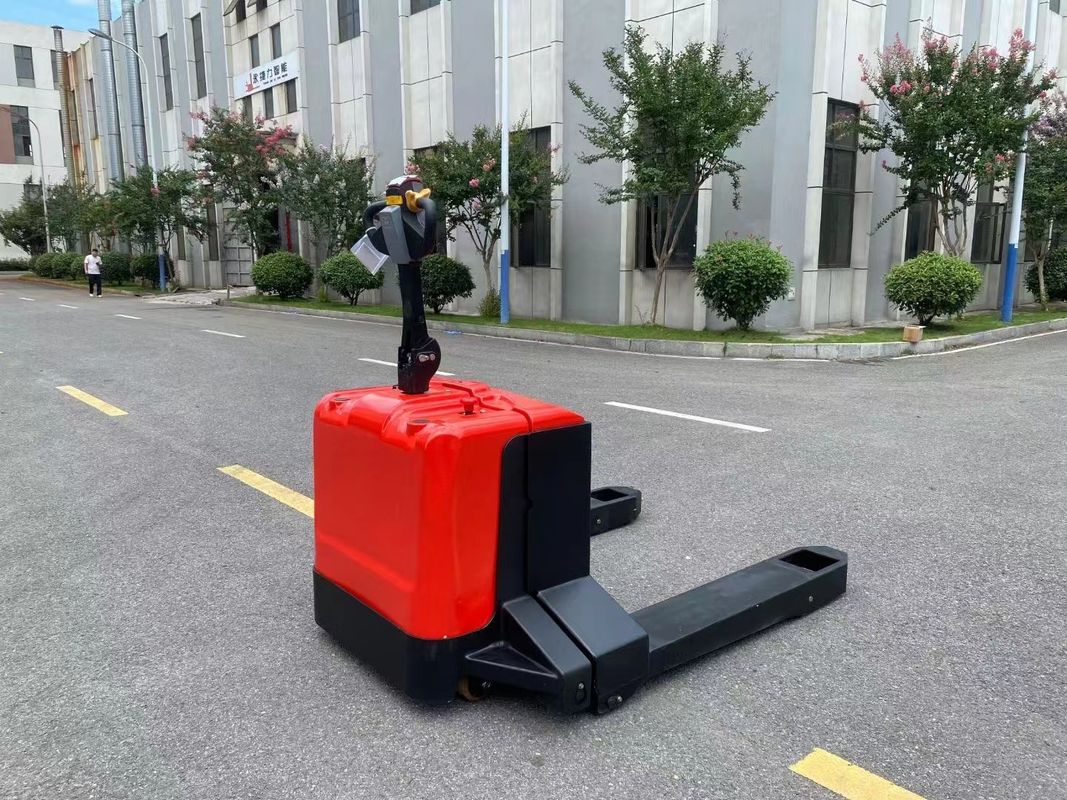

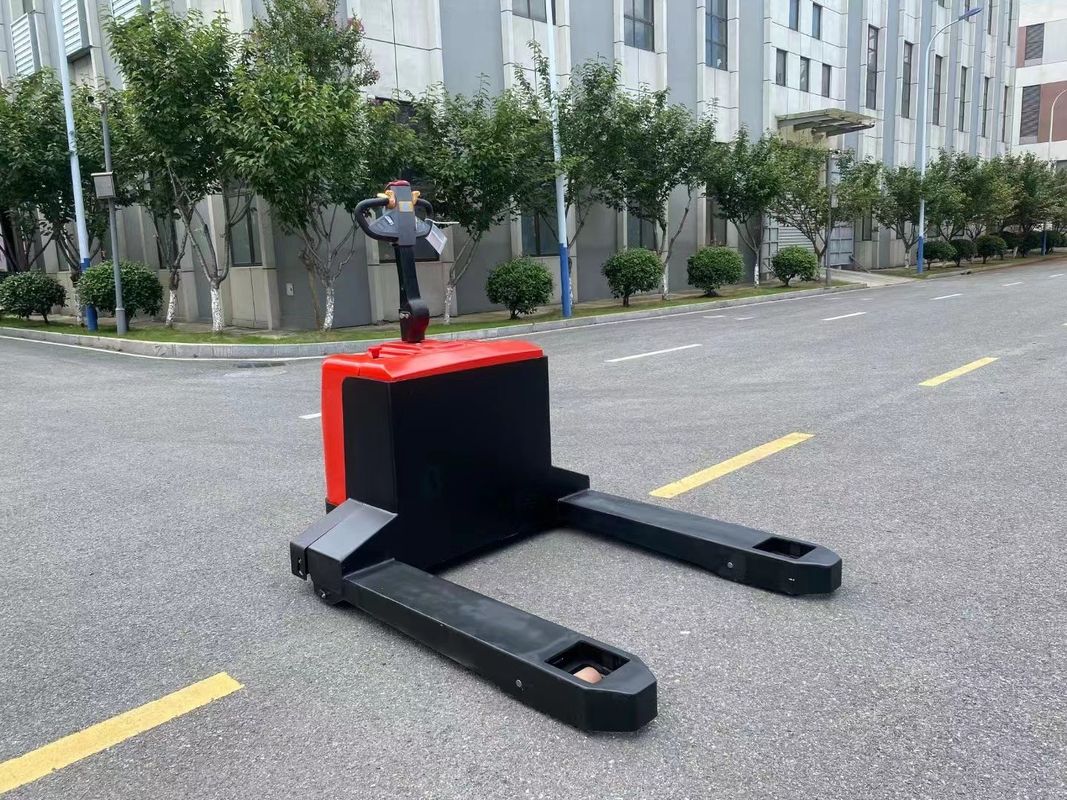

Electronic Steering Pedestrian Pallet Jack Stacker 6000 KGS with 24V 280AH Battery Capacity

Electronic Steering Pedestrian Pallet Jack Stacker 6000 KGS with 24V 280AH Battery Capacity

  • Highlight

    24V 280AH Battery Capacity Pallet Jack Stacker

    ,

    Electronic Steering Pallet Jack Stacker

    ,

    6000 KGS Pallet Jack Stacker

  • Rated Load Capacity
    6000 KGS
  • Fork Outer Lenght
    1300 Mm
  • Fork Outer Width
    1400 Mm
  • Battery Capacity
    24V280AH
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CBD10
  • Minimum Order Quantity
    1 PC
  • Price
    $2800.00-$3800.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Electronic Steering Pedestrian Pallet Jack Stacker 6000 KGS with 24V 280AH Battery Capacity

Improve space utilization
Pallet trucks help optimize warehouse layout, allowing for more compact arrangement of pallet goods and improving warehouse space utilization.

Improve security
The pallet truck is equipped with good directional control and braking system, making it safer and more stable to operate between narrow aisles and elevated shelves.

Strong compatibility
Most pallet trucks are suitable for various standard sizes of wooden, plastic, or steel pallets, with strong operational flexibility.


Easy to manage
The pallet truck can be equipped with functions such as barcode scanning and weight measurement, which is beneficial for automated management and traceability of cargo information.



Advantage:

  • Wide angle view, high-strength shock absorption mast
  • American CURTIS brand drive control system
  • Vertical drive system
  • Electronic steering, portable, mute
  • Integrated low-noise hydraulic pump
  • Electromagnetic hydraulic valve
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit, integrated thumb switch
  • Body damping system
Name   Electric pallet truck
Model   CBD60
Load kg 6000
Load center mm 600
Minimum ground clearance mm 90
Maximum ground clearance mm 200
Driving mode   Walking type
Overall width mm 1400
Overall length mm 1300
Fork outer width mm 685/560
Maximum height of handle from the ground mm 1275
Turning Radius mm 1645
Fork size mm 1150*175*70
Right angle stacking channel (1200 x1000mm) mm 2425
Traveling speed (loaded/ unloaded) mm/s 3.5/4
Lifting motor (S3-15%) kw 0.8
Travel motor (S2-60min) kw 1.5
Braking form   Electromagnetic braking
Steering form   Mechanical steering
Body weight kg 600
Battery weight kg 200
Climbing gradient (full load/ no load) % 5/8
Battery capacity v/ah 210
Charger v/a 30
Number of tires (front/ rear) (X= drive wheel)   4/1X+2
Drive wheel mm Φ230*75
Bearing wheel mm Φ85*70
Auxiliary wheel mm Φ100 *50
Lifting speed (full load/ no load) mm/s 27/35
Falling speed (full load/ no load) mm/s 35/35
Tire type   Polyurethane
Battery replacement method   Lifting type





FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 6  years.



Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you provide OEM service?

A4: Yes.We can provice OEM and ODM service.
