Electric pallet stacker is a lightweight indoor lifting and stacking equipment, with a relatively lightweight body. The force arm of the counterweight is extended through the support arm at the front of the body to balance the load. Due to the fulcrum being located outside the center of gravity of the load, the weight distribution arm is much larger than the load force arm, so smaller weights can lift larger loads.
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift with rich experience for more than 5 years.
Q2: How about the delivery time?
A2: About 30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM or ODM service?
A4: Yes. We provide both OEM and ODM service.
Advantage:

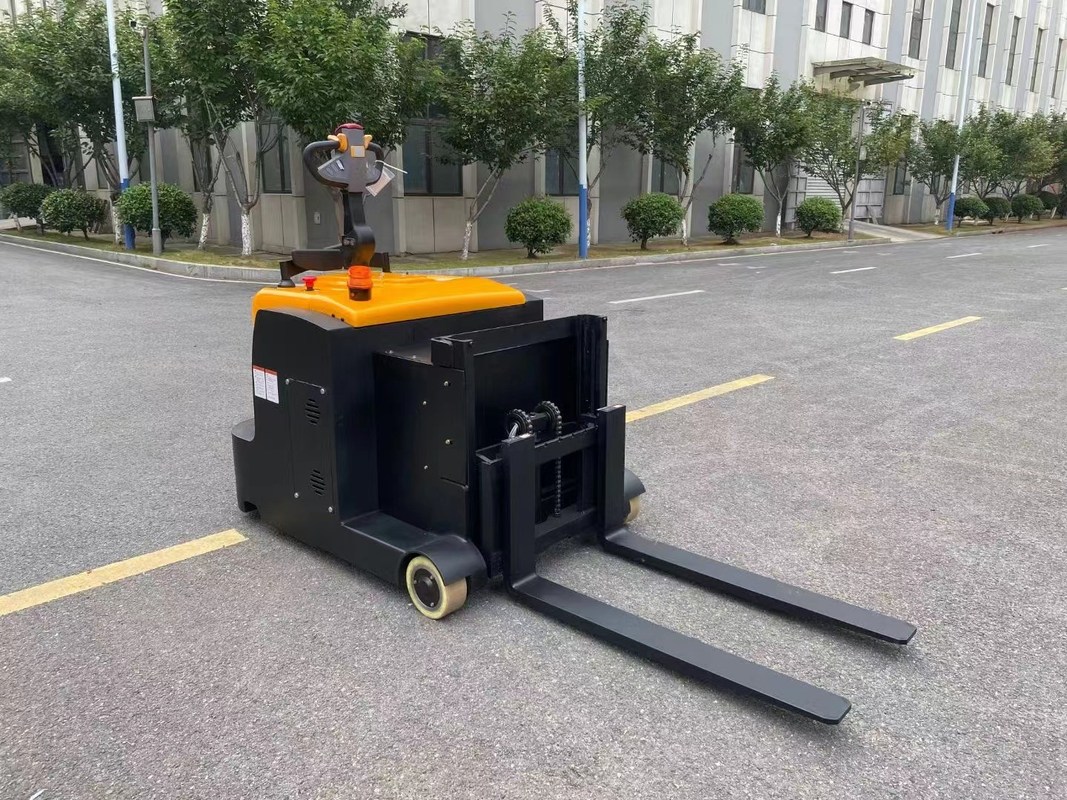

| Name | Electric pallet truck | |
| Model | CBD100 | |
| Load | kg | 10000 |
| Load center | mm | 600 |
| Min. ground clearance | mm | 145 |
| Max. ground clearance | mm | 265 |
| Control form | Side standing | |
| Vehicle width | mm | 1250 |
| Total length of vehicle body | mm | 2220 |
| Fork outer width | mm | 800 |
| Maximum ground clearance of steering wheel | mm | 1275 |
| Turning radius | mm | 2015 |
| Fork size | mm | 1200x340 |
| Right angle stacking channel | mm | 2720 (pallet size 1000*1000) |
| Traveling speed (loaded/ unloaded) | km/h | 5/ 6 |
| Lifting motor (S3-15%) | kw | 4.5 |
| Travel motor (S2-60min) | kw | 4.0 |
| Steering motor | kw | 0.5 |
| Braking form | Electromagnetic braking | |
| Steering form | Electronic steering | |
| Controller | CURTIS | |
| Body weight | kg | 1700 |
| Battery weight | kg | 500 |
| Climbing gradient (full load/ no load) | % | 3/8 |
| Battery capacity | v/ah | 48/300 |
| Charger | v/ah | 48/50 |
| Number of tires, front/ rear (X= drive wheel) | 4/1X+8 | |
| Drive wheel | mm | Φ343 *135 |
| Bearing wheel | mm | Φ125*100 |
| Auxiliary wheel | mm | Φ150*50 |
| Lifting speed (full load/ no load) | mm/s | 40/54 |
| Falling speed (full load/ no load) | mm/s | 55/45 |
| Tire type | Polyurethane | |
| Battery replacement method | Side pull type |
Our products are sold all over the world, you can rest assured.
