A walkie stacker is the next stage up from a pallet jack or truck.
The basic design is the same, except that the stacker is motorized.
The ‘truck’ aspect of the walkie stacker is similar to the fork alignment and design of a forklift truck.
The whole assembly can be moved around by hand, and pallets can be lifted to the second shelf of a warehouse
Why choose our products ?
You will obtian the following advantages:
Advantage:

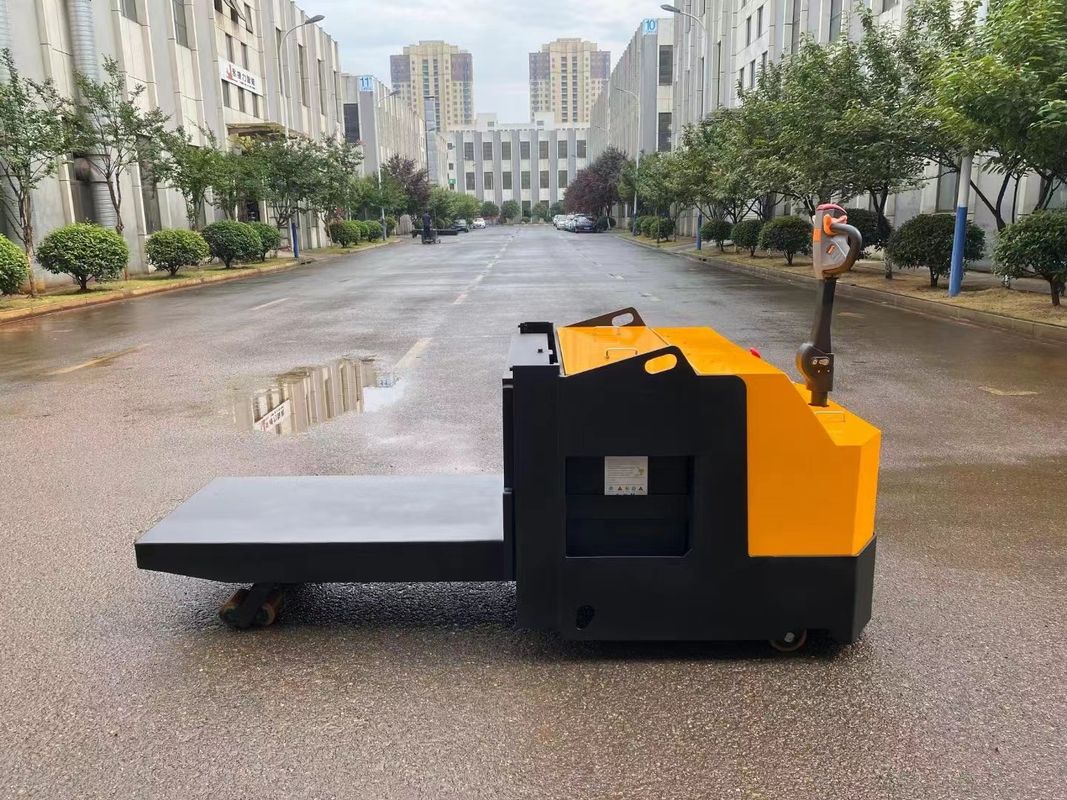

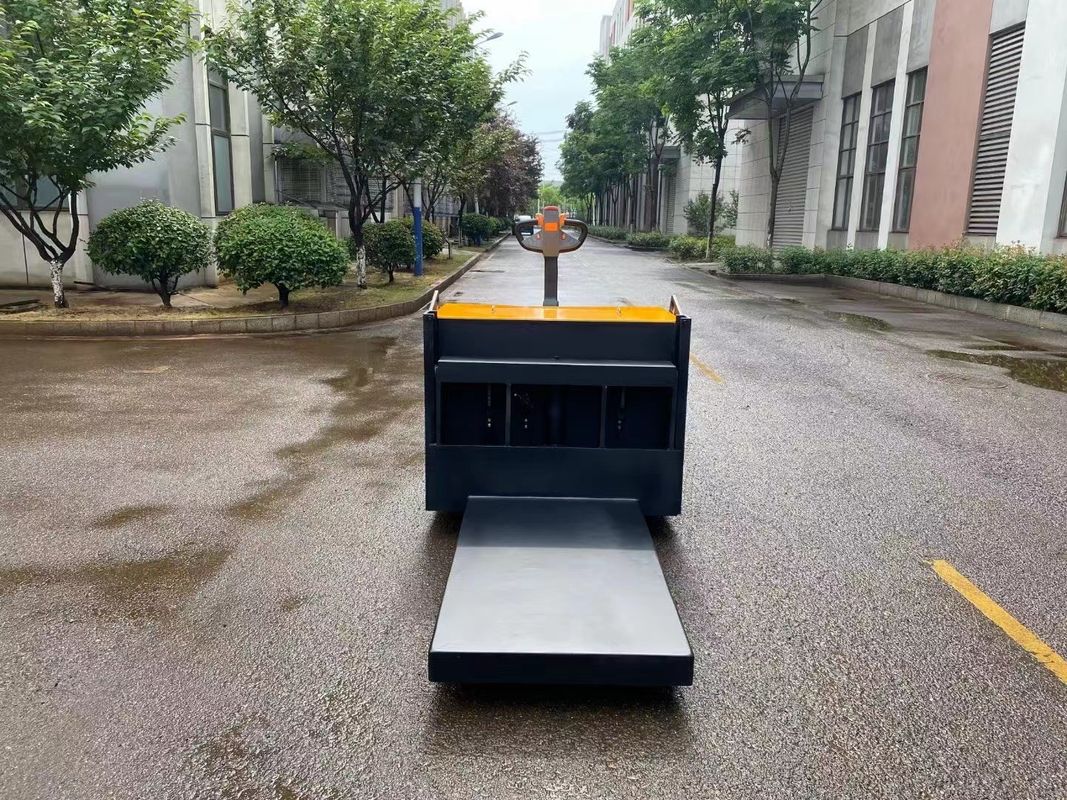

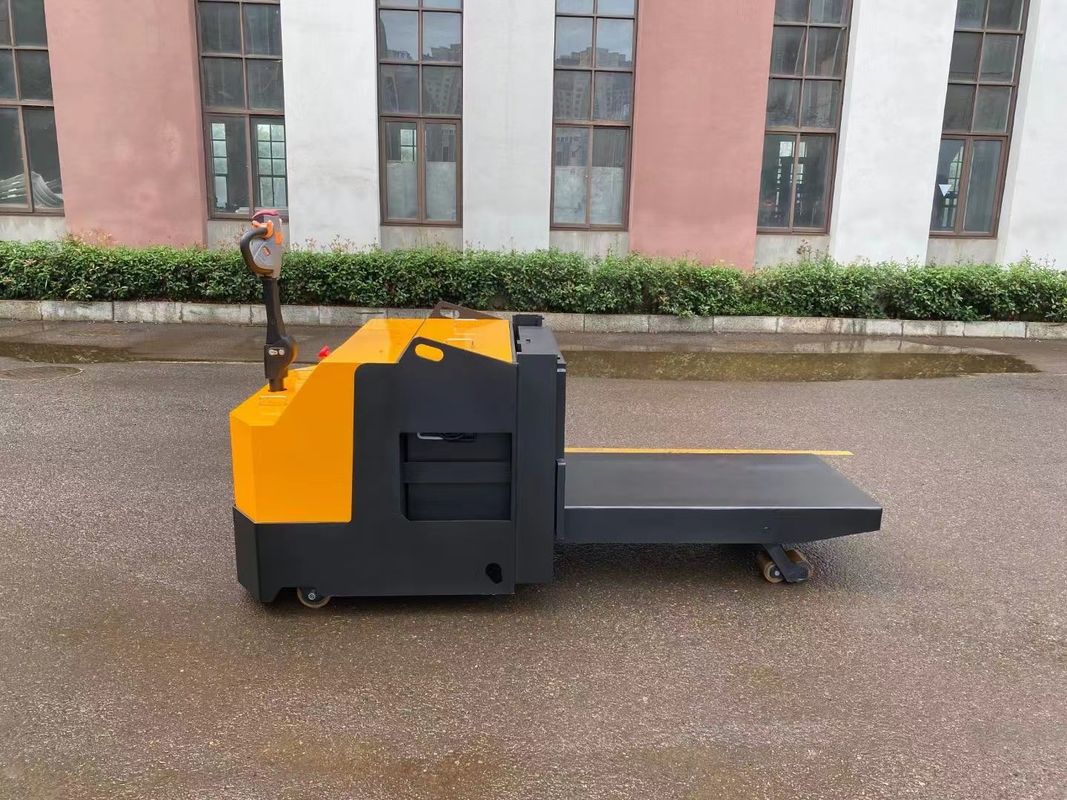

Non standard platform handling vehicle
Rated load capacity: 7000kg
Platform length: 1320mm
Platform width: 762mm
Lifting height: 356mm
Battery capacity: 48V400AH
Electronic Steering Pedestrian
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift for more than 6 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.We can provice OEM and ODM service.
Model | CDD30D-30 | |
Power type | Electric | |
Operation mode | Walking type | |
Rated load | kg | 3000 |
Load center distance | mm | 500 |
Tire type (front/ rear) | Polyurethane | |
Number of tires | 4/1X+1 | |
Mast type | Duplex mast | |
Standard lifting height | mm | 3000 |
Height of mast closed | mm | 2080 |
Mast height during lifting | mm | 3565 |
Minimum ground clearance of cargo depot | mm | 85 |
Overall length | mm | 2030 |
Wheelbase | mm | 1430 |
Overall width | mm | 850 |
Track width (front/ rear) | mm | 490/545 |
Fork specifications | mm | 1150*190*65 |
Fork side outer distance | mm | 680/560 |
Turning radius | mm | 1645 |
Channel width (1200x1000 pallets, 1200 horizontal) | mm | 2515 |
Travel speed (full load/ no load) | km/h | 4.0/4.5 |
Lifting speed (full load/ no load) | mm/s | 80/125 |
Descent speed (full load/ no load) | mm/s | 160/105 |
Gradient (full load/ no load) | % | 6/10 |
Drive motor power | kw | 1.5 |
Type of lifting motor | DC | |
Lifting motor power | kw | 2.2/3.0 |
Battery voltage/ capacity | v/ah | 24/100 |
Battery weight | kg | 75 |
Service weight (incl. battery) | kg | 850 |
Steering type | Manual operation | |
Parking brake type | Electromagnetism | |
Parking brake operation mode | Handle operation |
