Non Standard Pallet Stacker Truck Rated Load Capacity 2500 KG with AC Motor

Non Standard Pallet Stacker Truck Rated Load Capacity 2500 KG with AC Motor

  • High Light

    Non standard Pallet Stacker Truck

    ,

    2500 KG Pallet Stacker Truck

    ,

    AC Motor Pallet Stacker Truck

  • Power Souce
    AC Motor
  • Standard Battery
    24V280AH
  • Fork Size
    1430 MM
  • Rated Load Capacity
    3000 Kg
  • Lifting Height
    1200 Mm
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CBD10
  • Minimum Order Quantity
    1 PC
  • Price
    $2800.00-$3800.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

Non Standard Pallet Stacker Truck Rated Load Capacity 2500 KG with AC Motor

Pallet stacker: suitable for single sided pallets, cargo handling and stacking;

Standard load capacity: 1000-3000kg, non-standard customized 3500-100000kg.

The length of the 1-2 ton cargo fork is 1150mm, the outer width of the cargo fork is 685/560mm

The minimum ground clearance of the cargo fork is 90mm, the lifting height is 1600-600mm, and 3500-10000kg.

Customized according to customer requirements.

Pallet stackers are commonly used for stacking goods between shelves.

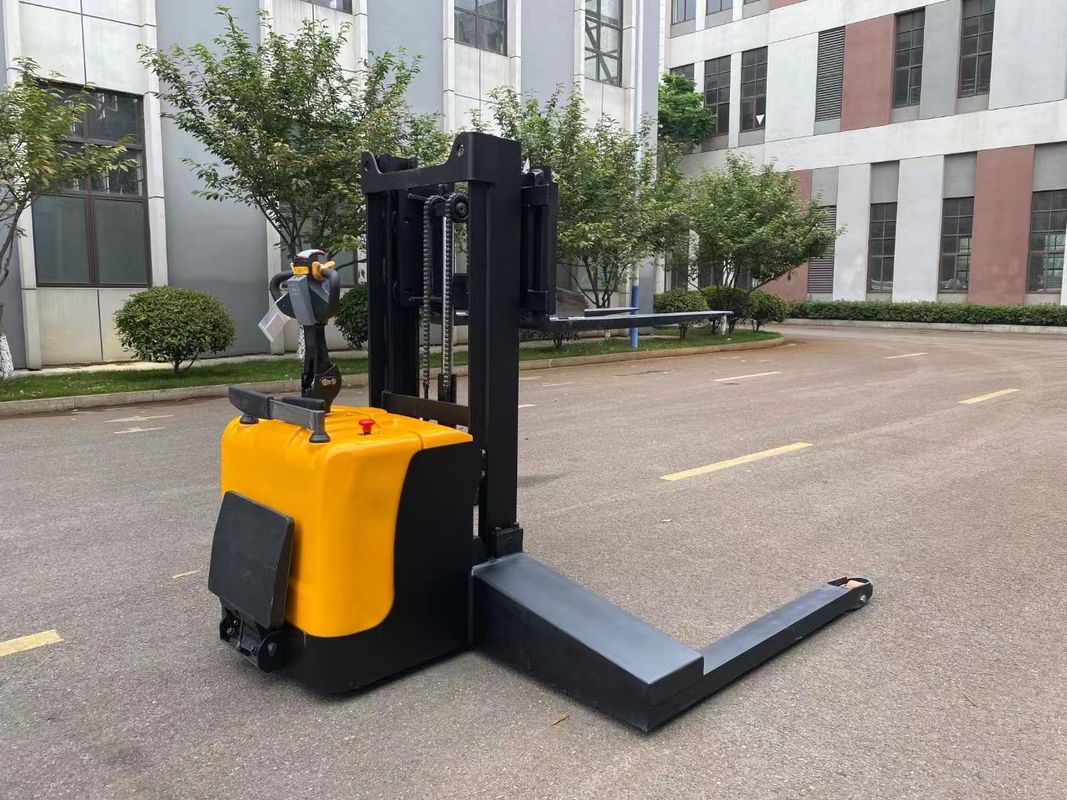

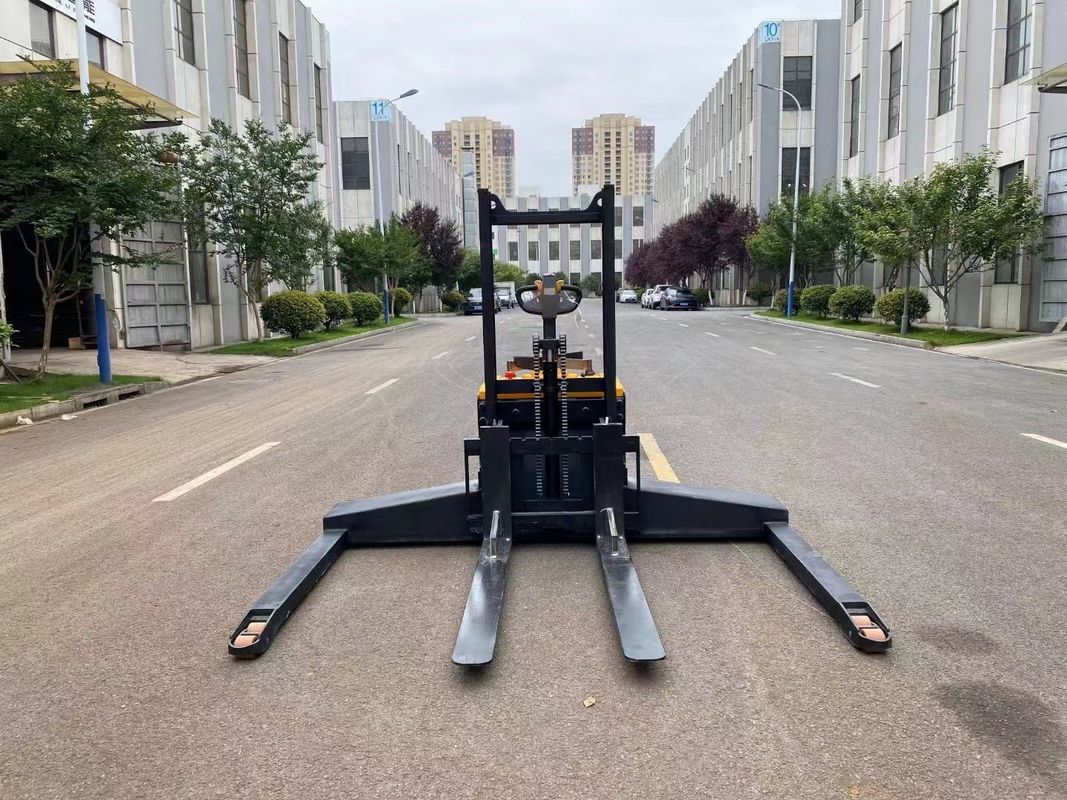

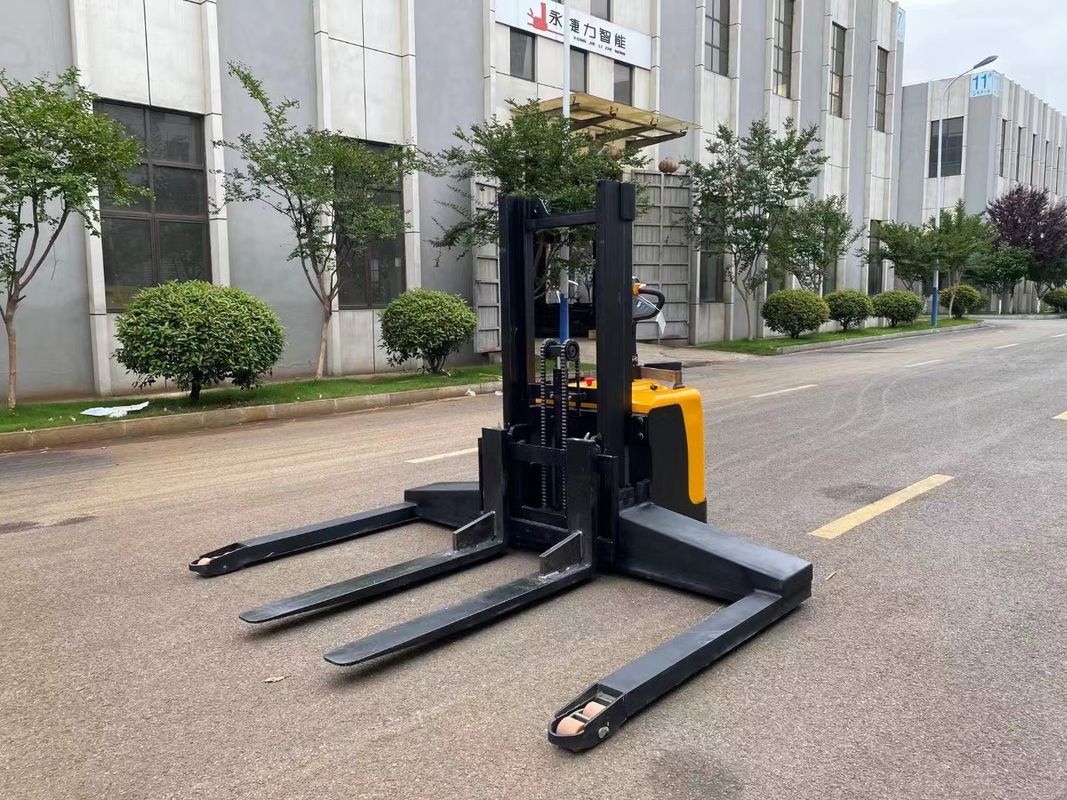

Non standard pallet stacker truck
Rated load capacity: 2500kg
Lifting height: 1200mm
Fork length: 1430mm
Fork outer width: 400-880mm
Crossleg widening: 2280mm
Battery capacity: 24V280AH
Electronic steering pedal protection arm
Password lock magnetic card key



FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 20 years.



Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you provide OEM service?

A4: Yes.



Model   CDD30D-30
Power type   Electric
Operation mode   Walking type
Rated load kg 3000
Load center distance mm 500
Tire type (front/ rear)   Polyurethane
Number of tires   4/1X+1
Mast type   Duplex mast
Standard lifting height mm 3000
Height of mast closed mm 2080
Mast height during lifting mm 3565
Minimum ground clearance of cargo depot mm 85
Overall length mm 2030
Wheelbase mm 1430
Overall width mm 850
Track width (front/ rear) mm 490/545
Fork specifications mm 1150*190*65
Fork side outer distance mm 680/560
Turning radius mm 1645
Channel width (1200x1000 pallets, 1200 horizontal) mm 2515
Travel speed (full load/ no load) km/h 4.0/4.5
Lifting speed (full load/ no load) mm/s 80/125
Descent speed (full load/ no load) mm/s 160/105
Gradient (full load/ no load) % 6/10
Drive motor power kw 1.5
Type of lifting motor   DC
Lifting motor power kw 2.2/3.0
Battery voltage/ capacity v/ah 24/100
Battery weight kg 75
Service weight (incl. battery) kg 850
Steering type   Manual operation
Parking brake type   Electromagnetism
Parking brake operation mode   Handle operation
