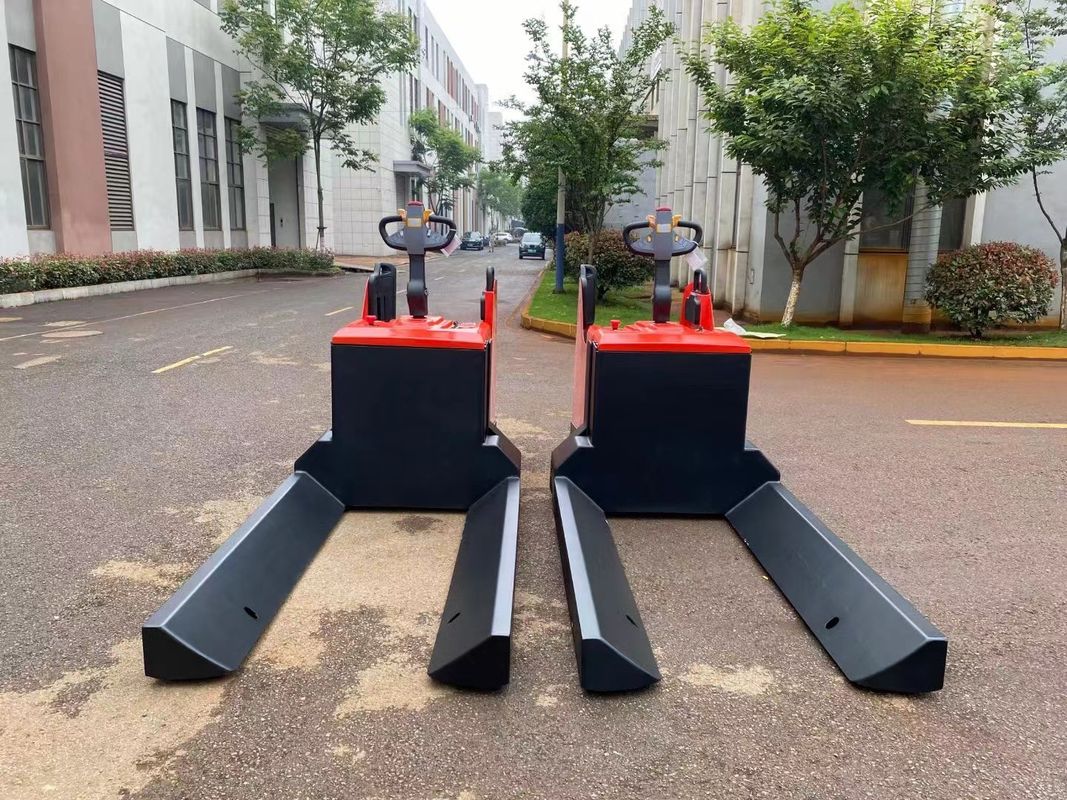

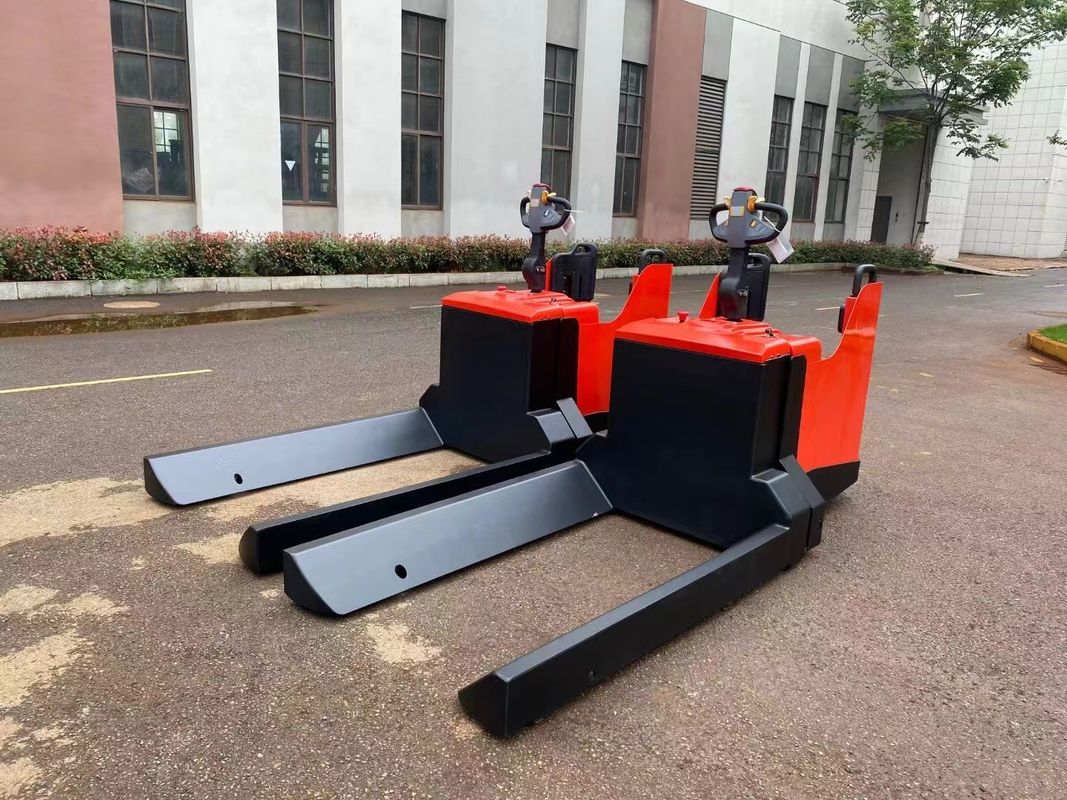

3000 KG Electric Pallet Stacker Dual Purpose Paper Roll Or Tray Lifting Stroke 160mm

3000 KG Electric Pallet Stacker Dual Purpose Paper Roll Or Tray Lifting Stroke 160mm

  • High Light

    160mm Electric Pallet Stacker


    3000 KG Electric Pallet Stacker


    Dual Purpose Electric Pallet Stacker

  • Fork Length
    1600 Mm
  • Power Souce
    AC Motor
  • Standard Battery
  • Fork Size
    850-1250 Mm
  • Rated Load Capacity
    3000 Kg
  • Lifting Stroke
    160 Mm
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 PC
  • Price
  • Packaging Details
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability

3000 KG Electric Pallet Stacker Dual Purpose Paper Roll Or Tray Lifting Stroke 160mm

 Walkie stackers

A walkie stacker is the next stage up from a pallet jack or truck.

The basic design is the same, except that the stacker is motorized.

The ‘truck’ aspect of the walkie stacker is similar to the fork alignment and design of a forklift truck.

The whole assembly can be moved around by hand, and pallets can be lifted to the second shelf of a warehouse




Why choose our products ?

You will obtian the following advantages:



  • Wide angle view, high-strength shock absorption mast
  • American CURTIS brand drive control system
  • Vertical drive system
  • Electronic steering, portable, mute
  • Integrated low-noise hydraulic pump
  • Electromagnetic hydraulic valve
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit, integrated thumb switch
  • Body damping system



Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift for more than 20 years.


Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.


Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.


Q4: Can you provide OEM service?

A4: Yes.


Model   CDD30D-30
Power type   Electric
Operation mode   Walking type
Rated load kg 3000
Load center distance mm 500
Tire type (front/ rear)   Polyurethane
Number of tires   4/1X+1
Mast type   Duplex mast
Standard lifting height mm 3000
Height of mast closed mm 2080
Mast height during lifting mm 3565
Minimum ground clearance of cargo depot mm 85
Overall length mm 2030
Wheelbase mm 1430
Overall width mm 850
Track width (front/ rear) mm 490/545
Fork specifications mm 1150*190*65
Fork side outer distance mm 680/560
Turning radius mm 1645
Channel width (1200x1000 pallets, 1200 horizontal) mm 2515
Travel speed (full load/ no load) km/h 4.0/4.5
Lifting speed (full load/ no load) mm/s 80/125
Descent speed (full load/ no load) mm/s 160/105
Gradient (full load/ no load) % 6/10
Drive motor power kw 1.5
Type of lifting motor   DC
Lifting motor power kw 2.2/3.0
Battery voltage/ capacity v/ah 24/100
Battery weight kg 75
Service weight (incl. battery) kg 850
Steering type   Manual operation
Parking brake type   Electromagnetism
Parking brake operation mode   Handle operation
