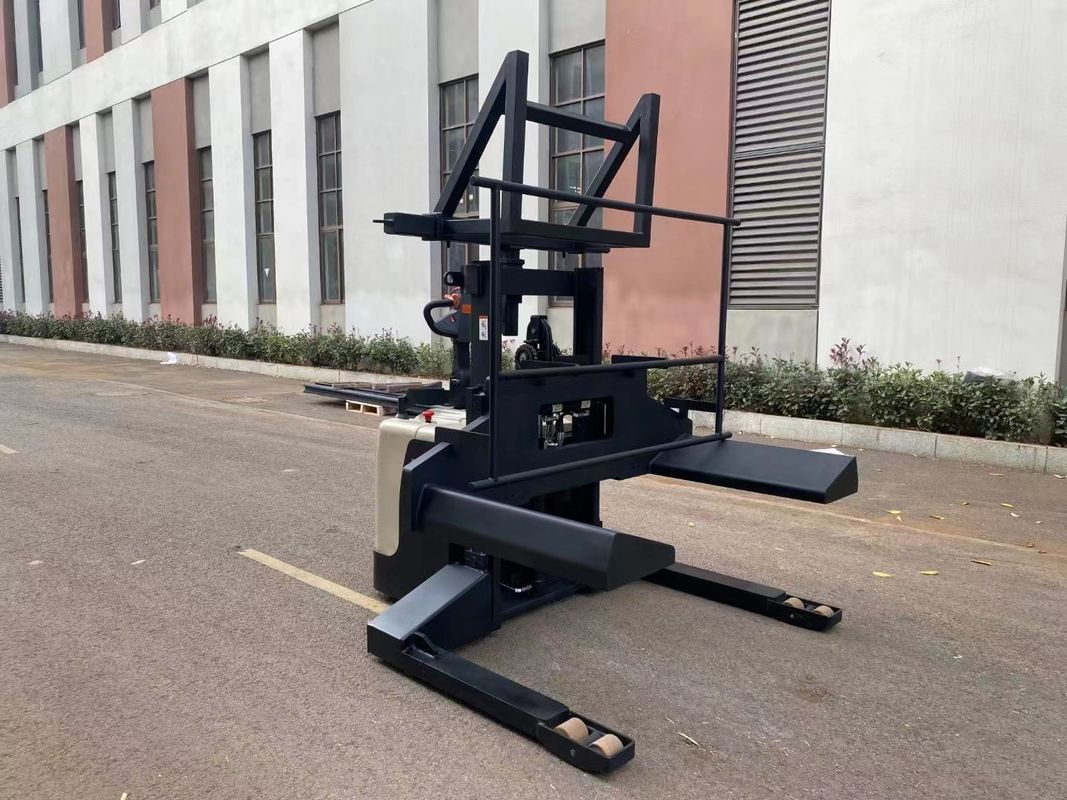

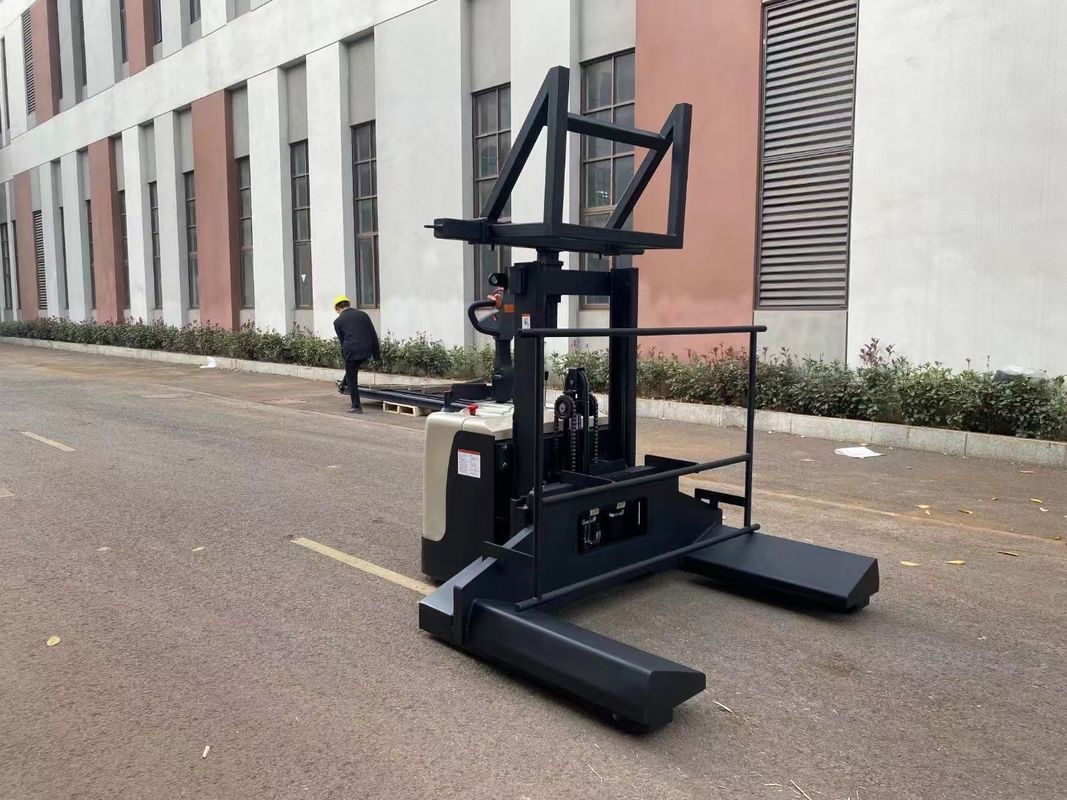

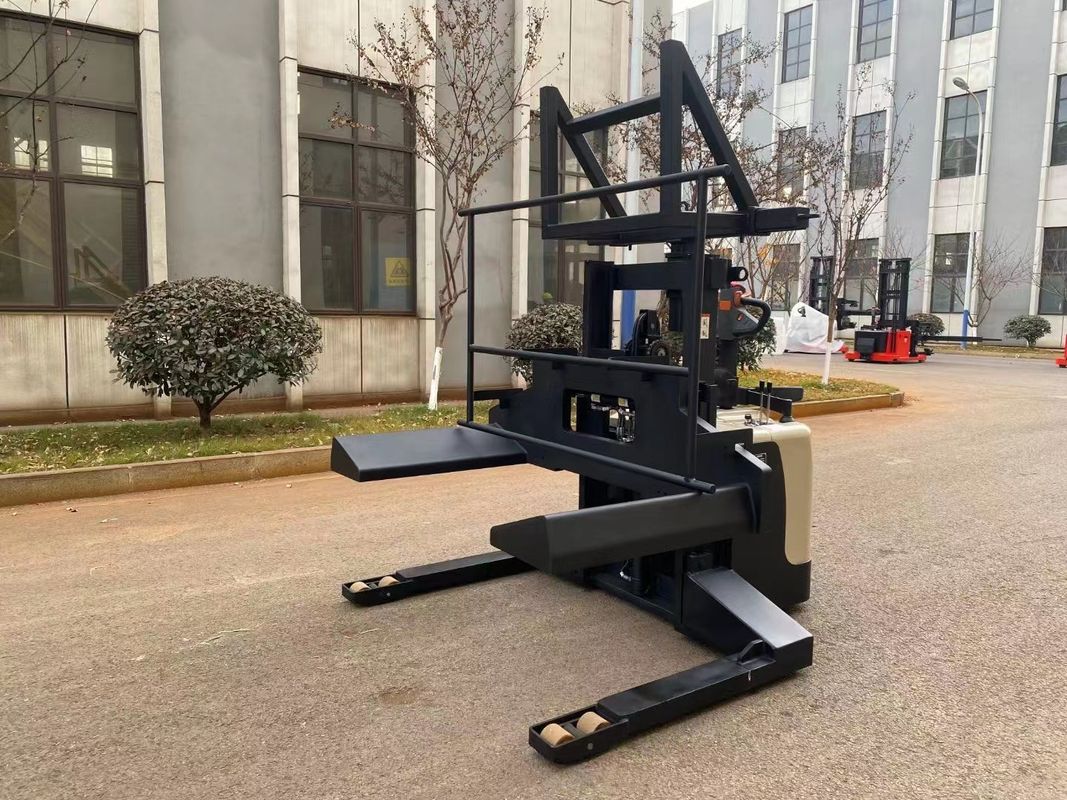

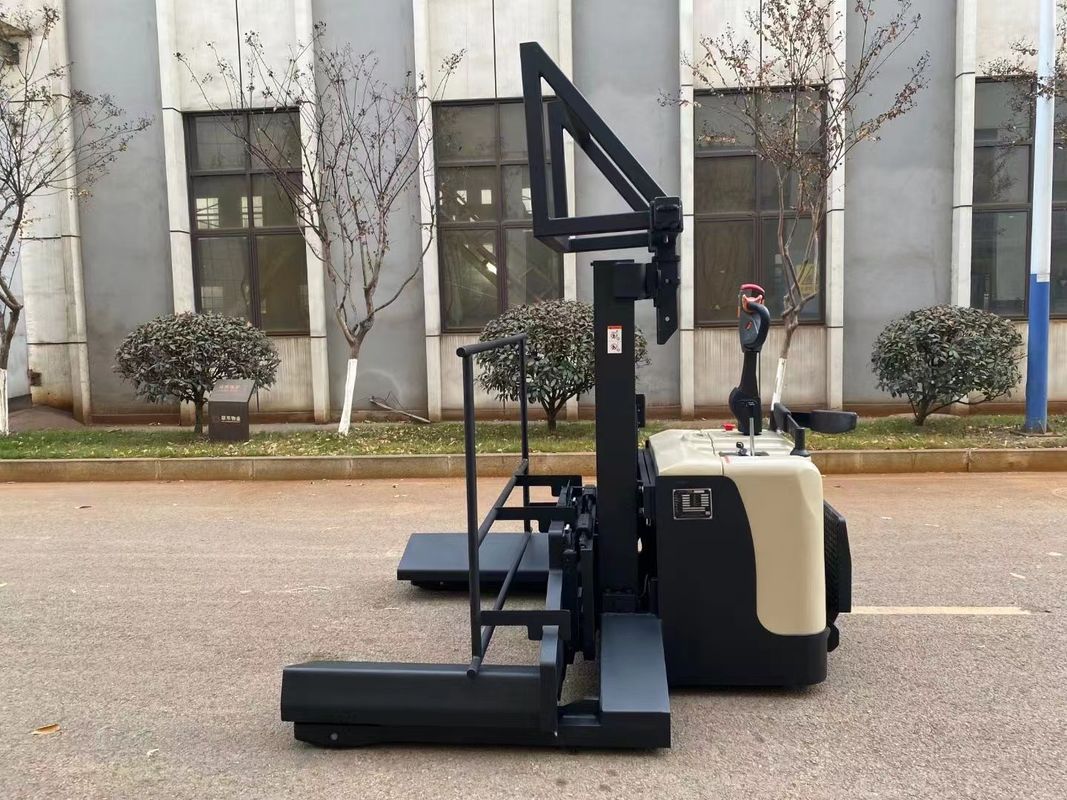

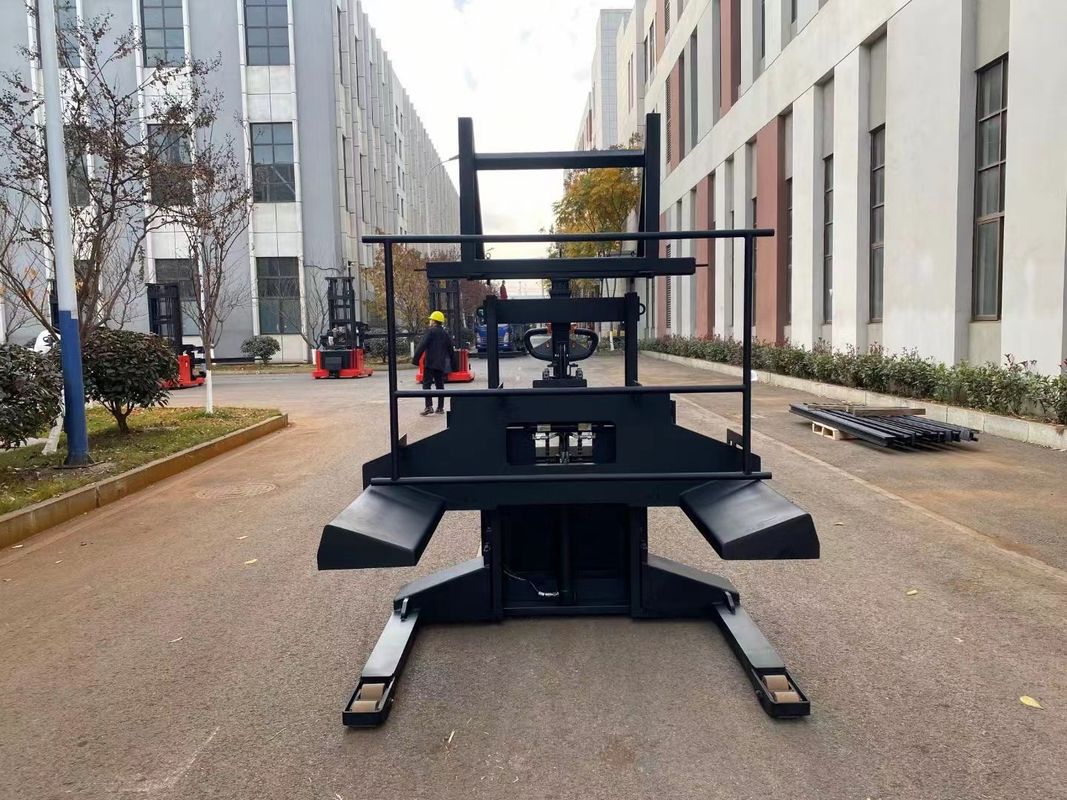

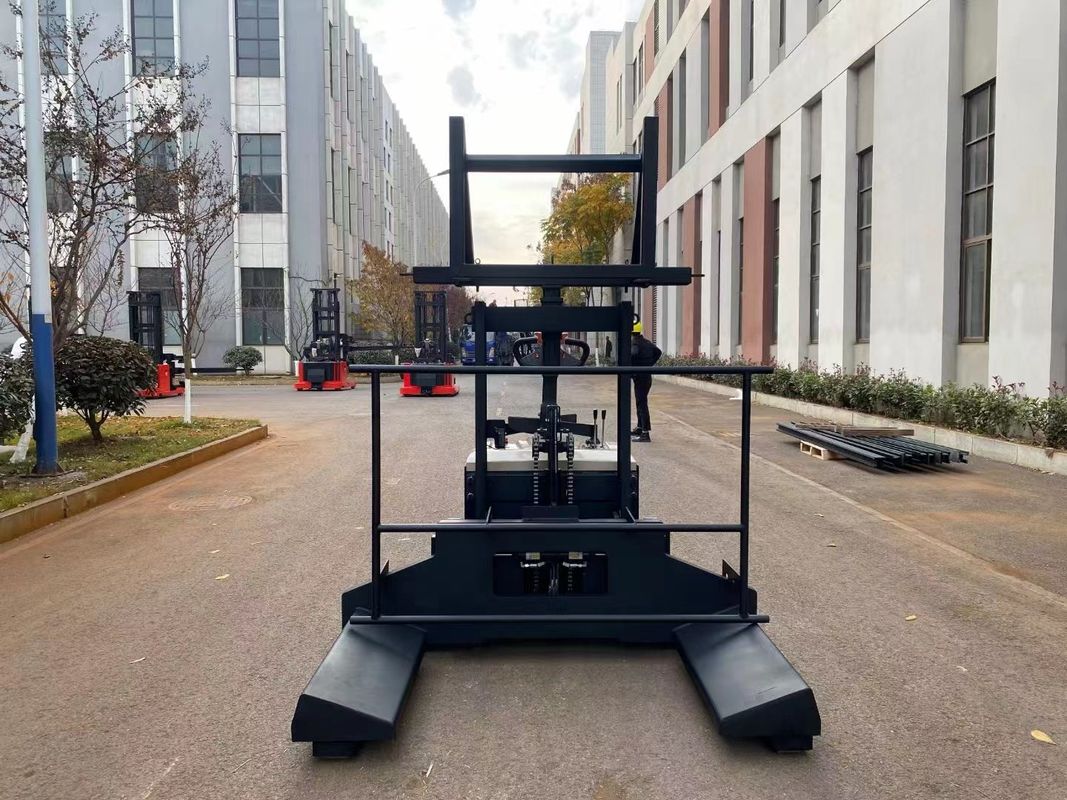

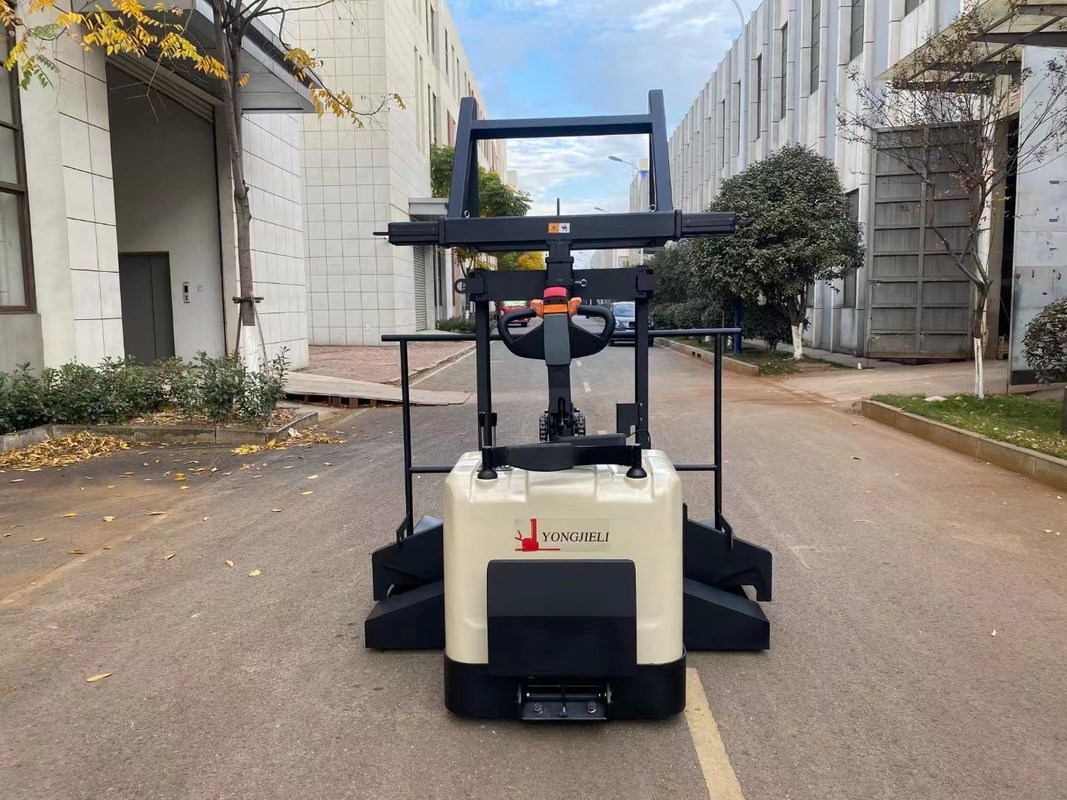

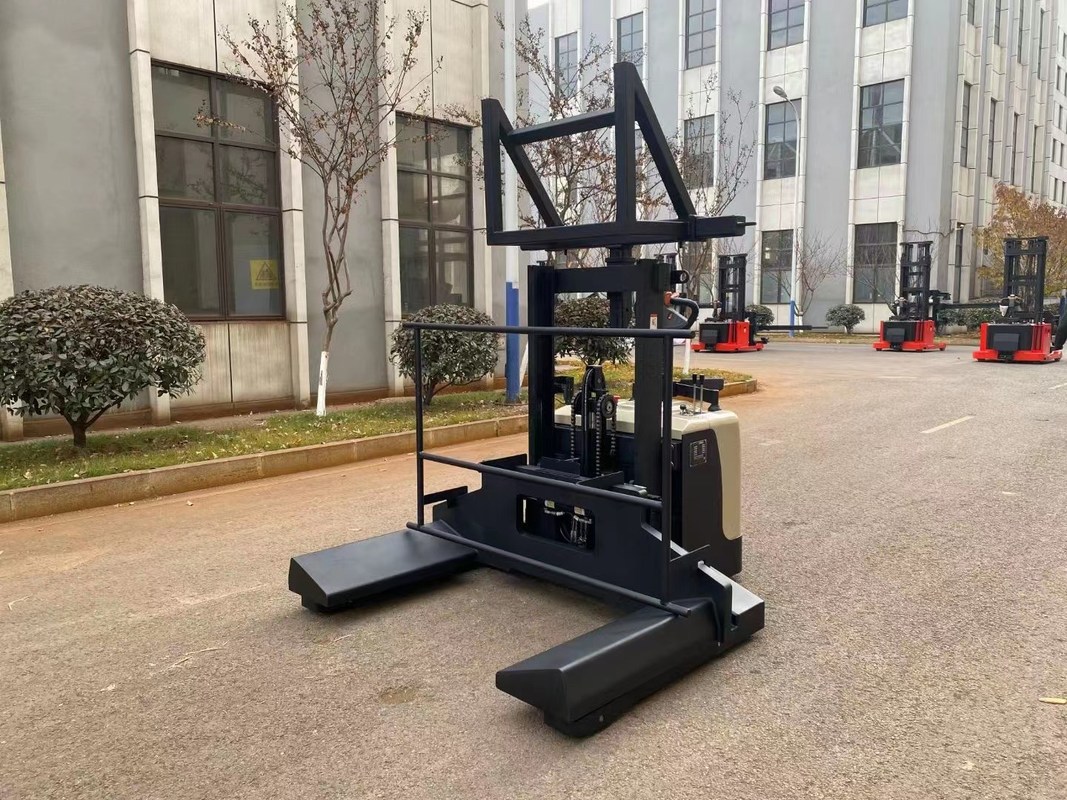

Moer Specification:
Special tool vehicle for construction machinery
Rated load capacity: 2000kg
Lifting height: 600mm
Fork length: 800mm
Tire outer diameter: 2150-2700mm
Lateral displacement distance: ± 60mm
Lithium battery: 25.6V160AH
Electronic steering pedal protection arm
| Model | CDD40(Walking style) |
| Load Capacity(KG) | 4000 |
| Max.Lift Height(mm) | 2500 |
| Load Center(mm) | 500 |
| Max.Load Capacity at Max.Height(kg) | 2500 |
| Tire Material | Polyurethane Solid Tire |
| Fork Dimension(mm) | 1070*120 |
| Mast Type | Two Stage Mast |
| Fork Adjustment Range(mm) | 400-800 |
| Fork Leg Inner Width(mm) | 1280 |
| Overall Lenght(mm) | 2265 |
| Overall Width(mm) | 1520 |
| Height of Closed Mast(mm) | 1750 |
|
Max.Height of Lifting Fork (Including Fork)(mm) |
3360 |
| Tuning Radius(mm) | 1790 |
| Min.channel of Stacking(mm) | 2650 |
| Max.Driving Speed Km/h | 4.0/5.0 |
| Climing Capacity % | 3/6 |
| Total Weight (kg) | 1250 |
| Driving Wheel(mm) | 230*75 |
