More Specificaton:

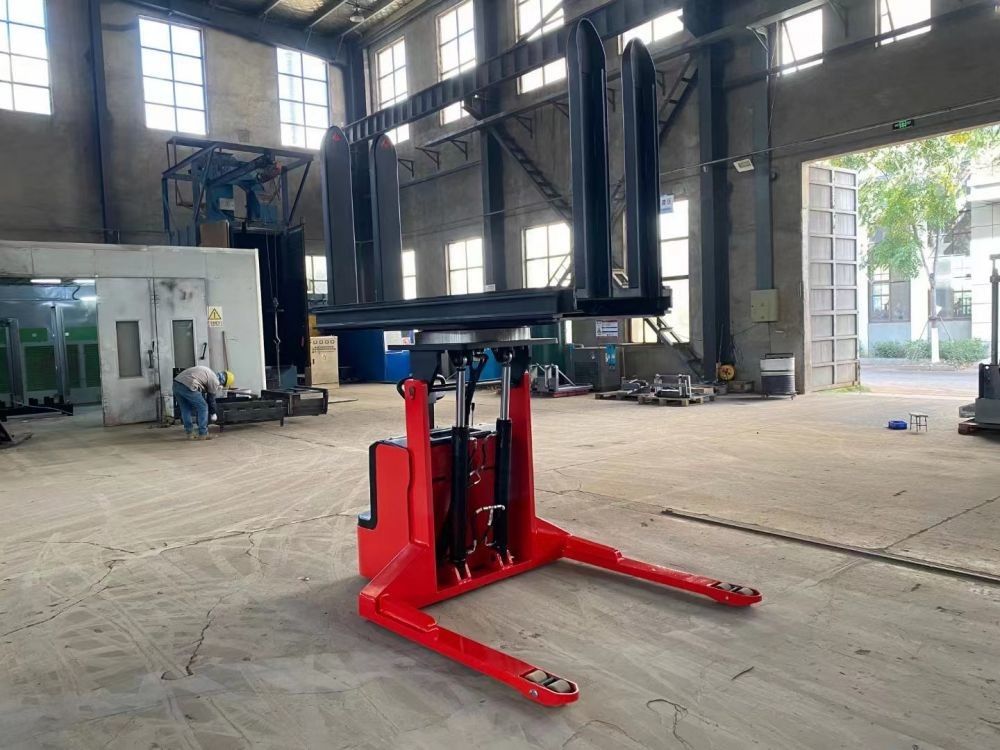

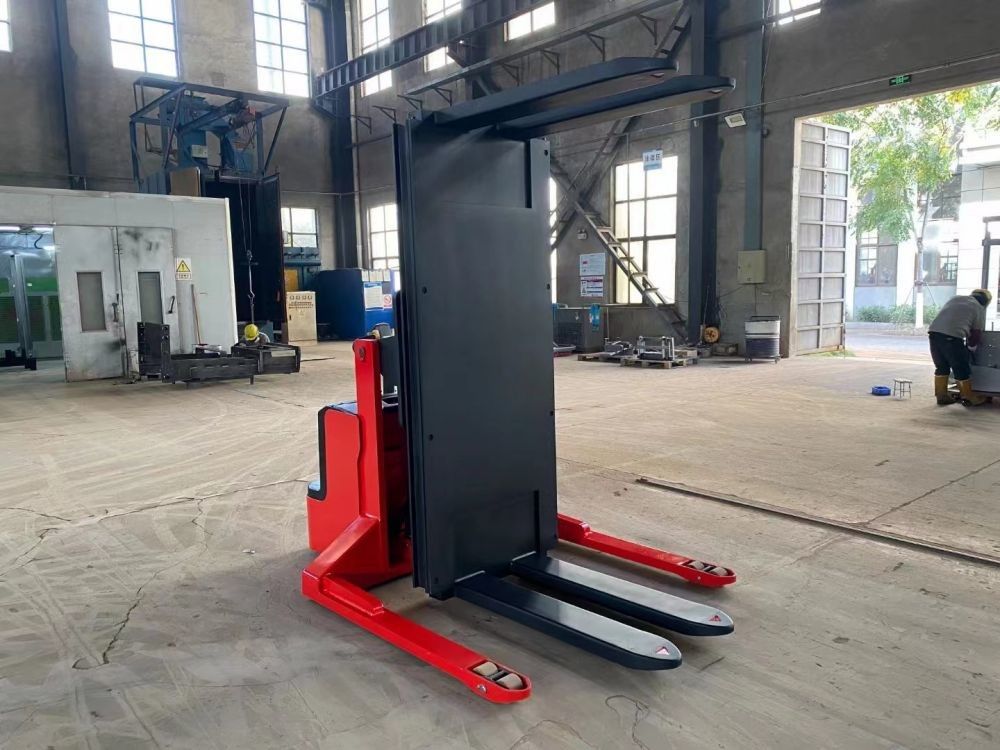

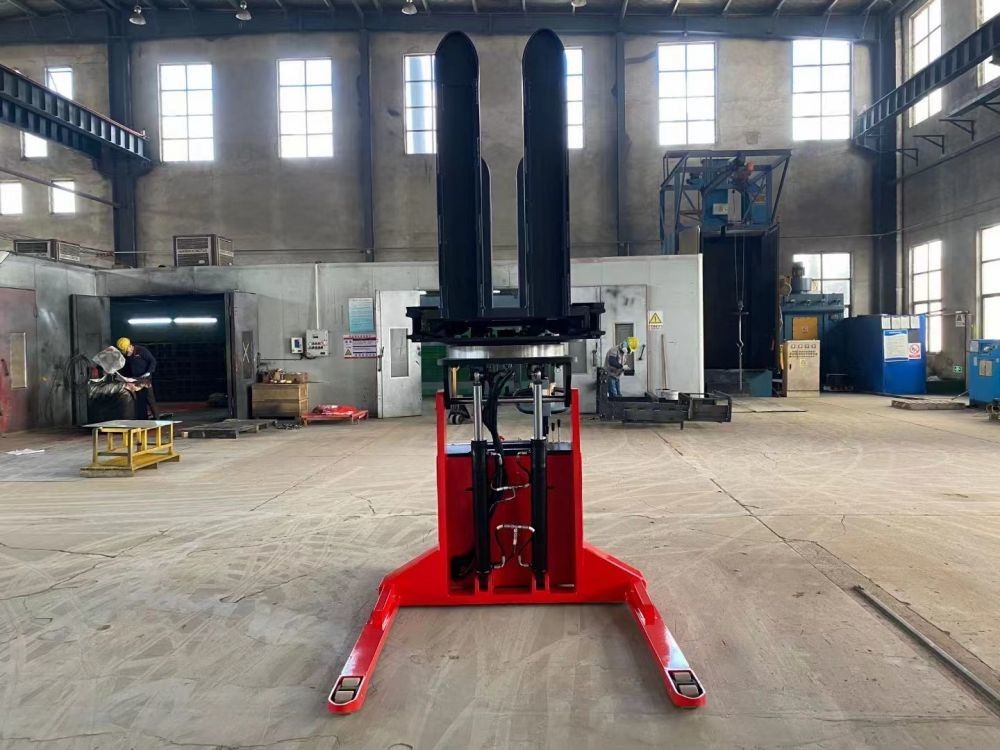

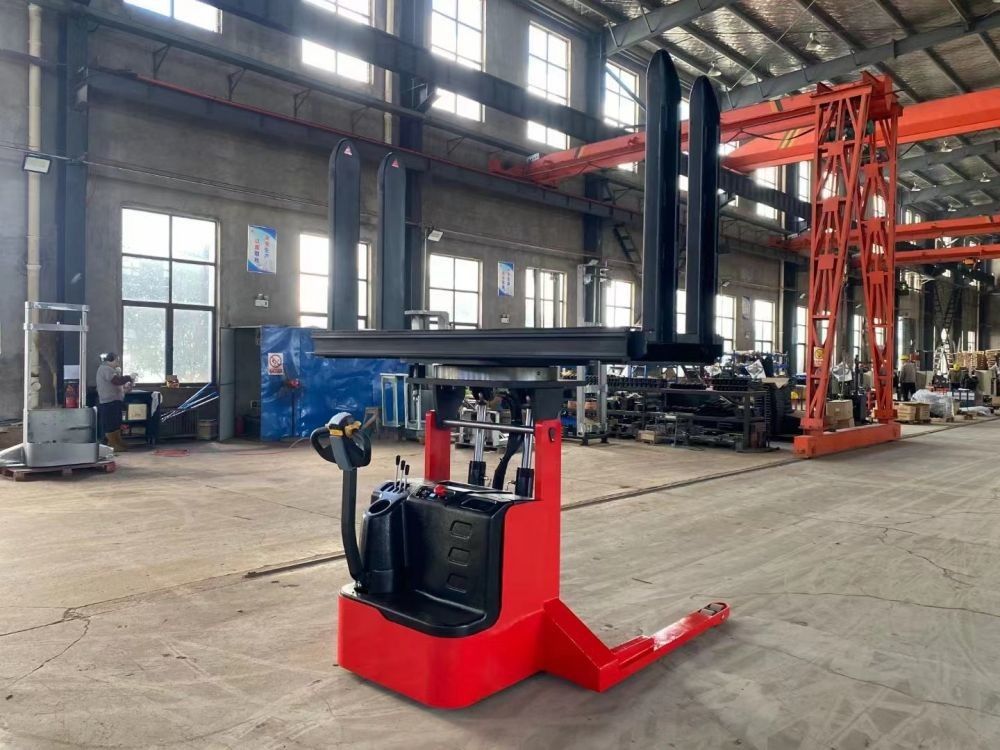

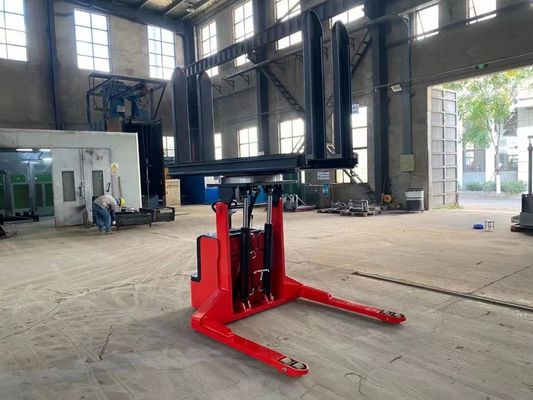

Paper flipper
Rated load capacity: 1500kg
Fork spacing: 2000mm
Fork length: 1150mm
Fork outer width: 560mm
Gantry rotates upwards: 90 °
Horizontal rotation of the gantry: 180 °
Pedestrian mechanical steering
| Model | CDD15A | |
| Power type | Electric | |
| Operation mode | Walking handle type | |
| Rated load | kg | 1500 |
| Load center distance | mm | 500 |
| Tire type (front/ rear) | Polyurethane | |
| Carrier wheel | mm | Φ85*70 |
| Drive wheel | mm | Φ210*70 |
| Auxiliary wheel | mm | Φ130*55 |
| Number of tires (front/ rear) (X= drive) | 2/1X+1 | |
| Mast type | Duplex mast | |
| Standard lifting height | mm | 3000 |
| Free lifting height | mm | 0 |
| Height of mast closed | mm | 2080 |
| Height of mast open | mm | 3560 |
| Min. ground clearance of fork surface | mm | 85 |
| Overall length | mm | 1710 |
| Wheelbase | mm | 1185 |
| Overall width | mm | 800 |
| Track width (front/ rear) | mm | 525/535 |
| Fork specifications | mm | 1150*160*60 |
| Outside distance of fork | mm | 685/560 |
| Channel width (1000*1200 pallets) | mm | 2205 |
| Channel width (800*1200 pallets) | mm | 2145 |
| Turning radius | mm | 1366 |
| Travel speed (full load/ no load) | km/h | 3.5/ 4 |
| Lifting speed (full load/ no load) | mm/s | 80/125 |
| Descent speed (full load/ no load) | mm/s | 150/100 |
| Climbing gradient (S2-5) (full load/ no load) | % | 3/6 |
| Drive motor power | kw | 0.75 |
| Lifting motor power | kw | 2.0 |
| Battery voltage/ capacity | v/ah | 24/ 60 |
| Battery weight | kg | 20 |
| Vehicle weight (including battery) | kg | 625 |
| Steering type | Hand movement | |
| Parking brake type | Electromagnetic braking | |
| Parking brake operation mode | Handle operation |
