Customization Air Shaft Electric Pallet Lifts 500 KG With Heavy Fork Tilts

Customization Air Shaft Electric Pallet Lifts 500 KG With Heavy Fork Tilts

  • High Light

    Air Shaft Electric Pallet Lifts

    ,

    Electric Pallet Lifts 500 KG

  • Power Type
    Battery
  • Tire Type
    Polyurethane
  • Mast Type
    Duplex Mast
  • Steering Type
    Electronic Steering
  • Parking Brake Type
    Electromagnetic Braking
  • Name
    Electric Pallet Stacker
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD05B
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

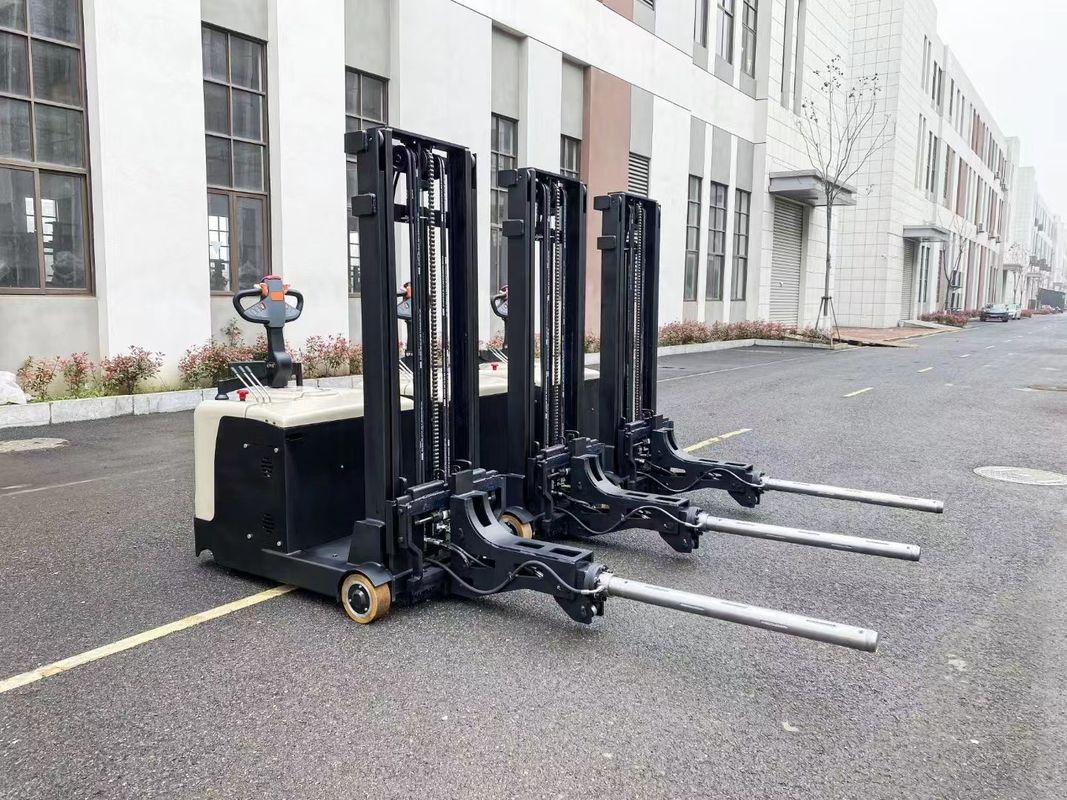

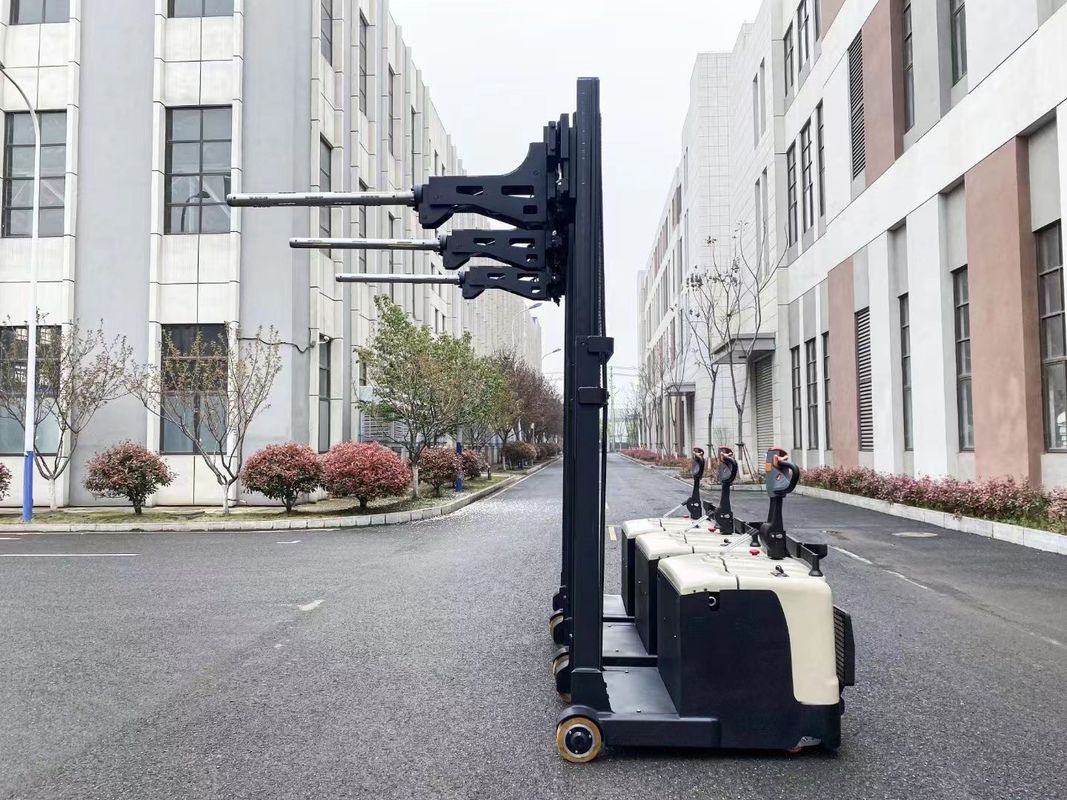

Customization Air Shaft Electric Pallet Lifts 500 KG With Heavy Fork Tilts

Customization Air Shaft Load Capacity 500 KG Electric Pallet Stacker With Heavy Fork Tilts Forward And Backward

Model   CDD05B
Power type   Battery
Operation mode   Standing type
Rated load kg 500
Load center distance mm 500
Installation level and form   2A
Tire type   Polyurethane
Tire specification (front wheel) mm Φ210*85
Tire specification (drive wheel) mm Φ230*75
Tire specification (multidirectional wheel) mm Φ130*55
Number of tires (front/ rear) (X= drive wheel)   2/1X+2
Mast type   Duplex mast
Mast tilt angle (forward tilt/ backward tilt) (optional) ° 3/5
Standard lifting height mm 2500
Free lifting height mm /
Height of mast closed mm 1830
Height of mast open (incl. blocking rack) mm 3485
Min. ground clearance mm 70
Overall length (pedal deployment/ retraction) mm 3200/2695
Wheelbase mm 1200
Front overhang distance mm 145
Overall width (front/ rear) mm 990/ 900
Track width (front/ rear) mm 895/ 684
Fork specifications mm 1070*100*35
Outside distance of fork mm 240-700
Channel width (1000*1200 tray) (pedal unfold/ fold) mm 3420/ 3000
Turning radius (pedal unfold/ fold) mm 1920/ 1500
Walking speed (full load/ no load) km/h 4.0/5.0
Lifting speed (full load/ no load) mm/s 80/150
Descent speed (full load/ no load) mm/s 160/105
Climbing gradient (S2-5) (full load/ no load) % 6/8
Drive motor power kw 1.5
Lifting motor power kw 2.2
Battery (voltage/ capacity) v/ah 24/210
Battery weight kg 200
Vehicle weight (incl. battery) kg 1815
Steering type   Electronic steering
Parking brake type   Electromagnetic braking
Battery replacement method   Lifting type
