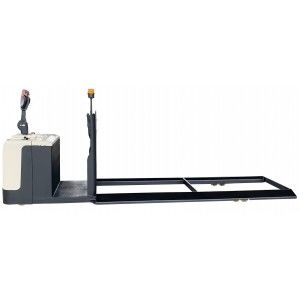

1000 KG Customization Order Picking Forklift Truck American CURTIS Brand Electromagnetic Hydraulic Valve
Why choose our products ? You will obtian the following advantages:
Advantage:
Security:
AC EPS
Low noise hydraulic
Optional lithium battery
| Model | CXD10-45 | |
| Rated lifting capacity | kg | 1000 |
| Load center | mm | 450 |
| Power type | Electric | |
| Operator type | Standing | |
| Total weight | 2600 | |
| Drive wheel | mm | φ230×75 |
| Front wheel | mm | φ150×90 |
| Auxiliary wheel | φ130×55 | |
| Lifting height | mm | 4260 |
| Max. lifting height of fork | mm | 4860 |
| Overall length | mm | 2830 |
| Overall width | mm | 1160 |
| Height of mast closed | 2310 | |
| Maximum height when rising to the maximum | mm | 6510 |
| Height of roof protection frame | mm | 2250 |
| Min. ground clearance | mm | 50 |
| Min. height of operating table from the ground | mm | 240 |
| Auxiliary lifting height | mm | 600(optional) |
| Max. lifting height of operating table | mm | 4500 |
| Fork length | mm | 920*100*40 |
| Fork outer width | mm | 680 |
| Turning Radius | mm | 1735 |
| Right angle channel (1200 horizontal x 1000) | 3285 | |
| Traveling speed (full load/ no load) | km/h | 4/5 |
| Climbing gradient | % | 0 |
| Braking mode | Electromagnetism | |
| Drive motor | v/kw | 24/1.6 |
| Lifting motor | v/kw | 24 /3.0 |
| Battery | v/ah | 24/360 |
| Lifting speed (no load/ full load) | mm/s | 115/100 |
| Descent speed (no load/ full load) | mm/s | 125/200 |
Our products are sold all over the world, you can rest assured.
