2.5 Ton CQD25 Electric Stacker Truck Endless Speed Regulation

2.5 Ton CQD25 Electric Stacker Truck Endless Speed Regulation

  • High Light

    CQD25 Electric Stacker Truck

    ,

    2.5 Ton Electric Stacker Truck

    ,

    electric pallet stacker Speed Regulation

  • Power Type
    Battery
  • Tire Type
    Polyurethane
  • Mast Type
    Duplex Mast
  • Steering Type
    Electronic Steering
  • Parking Brake Type
    Electromagnetic Braking
  • Name
    Electric Pallet Stacker
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, , MoneyGram
  • Supply Ability
    50 SETS PER MONTH

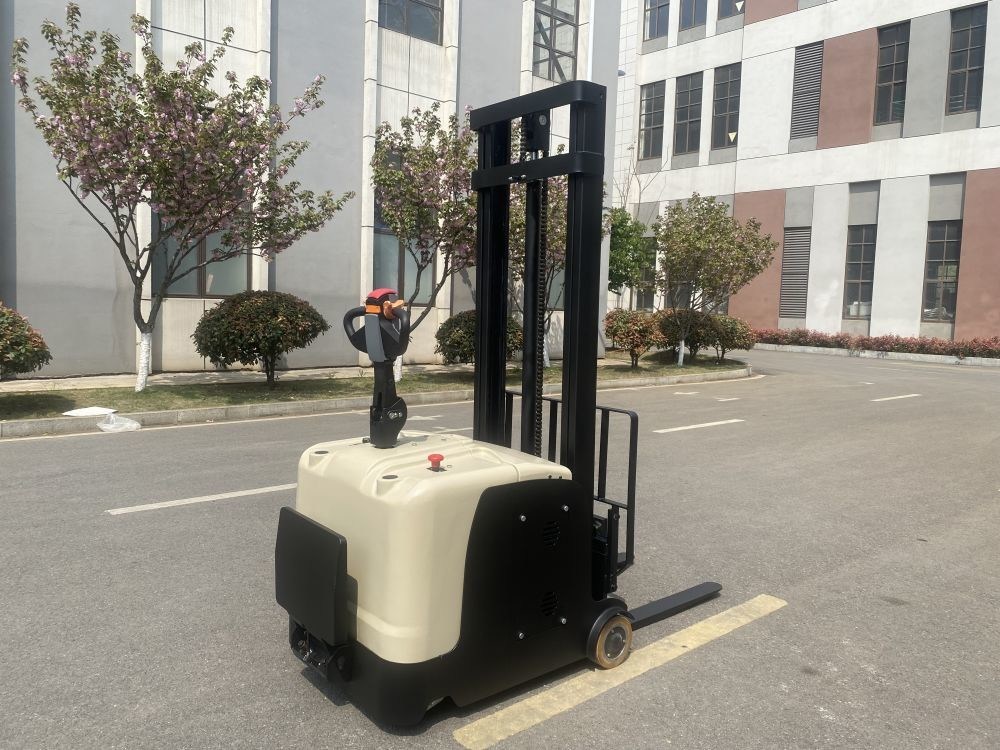

2.5 Ton CQD25 Electric Stacker Truck Endless Speed Regulation

2.5 Ton CQD25 Standard Drive Endless Speed Regulation Electric Seat Sytle Pallet Stacker2.5 Ton CQD25 Electric Stacker Truck Endless Speed Regulation 0

Model   CQD25
Power type   Electric
Operation mode   Seated type
Rated load kg 2500
Load center distance mm 600
Tire type mm Solid PU
Front wheel specification mm 267*114
Specification of driving wheel mm 343*135
Number of tires   2/1X
Fork inclination (forward / backward)   3/5
Standard lifting height mm 7500
Free lifting height mm 2585
Height of mast closed mm 3250
Maximum height during lifting mm 8485
Height of roof protection frame mm 2190
Fork leg height mm 310
First pedal height mm 320
Second pedal height mm 530
Seat height mm 975
Distance between the second pedal and the roof protection frame mm 1615
Ground clearance of fork leg mm 110
Floor clearance of underbody mm 80
Overall length mm 2500
Reach distance mm 650
Front overhang distance mm 160
Wheelbase mm 1665
Overall width mm 1270
Track width (front / rear) mm 1158/0
Outside width of fork mm 260-820
Fork specifications mm 1070*122*40
Channel width (1000*1000mm tray) mm 2975
Turning radius mm 1945
Walking speed km/h 7.5/8
Lifting speed mm/s 150/260
Descent speed mm/s 350/160
Gradient % 6/8
Drive motor power kw 6.5
Lifting motor power kw 8.6
Battery voltage/ capacity v/ah 48/420
Battery weight kg 700
Vehicle weight kg 3650
Steering type   Electronic transformation
Parking brake type   Electromagnetic braking
