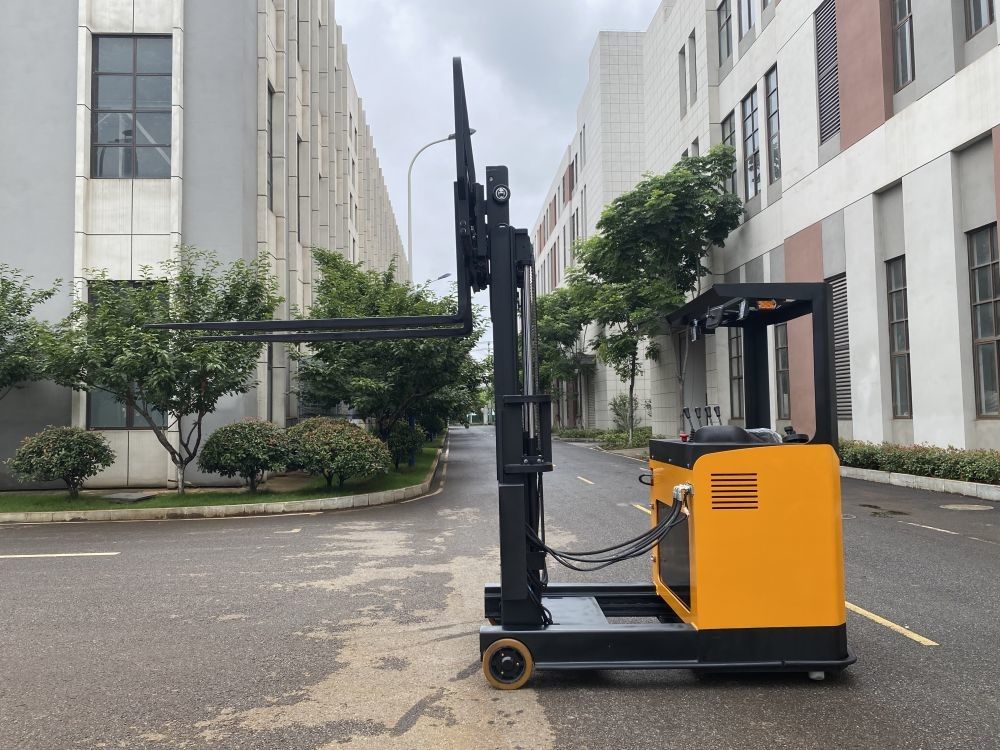

2.5 Ton CQD25 Customization Inductive Safety Seat Electric Seat Sytle Pallet Stacker
Advantage:
Safety:
AC EPS
Low noise hydraulic
High automatic deceleration
Optional lithium battery
Provide non-standard customization
Model | CQD25 | |
Power type | Electric | |
Operation mode | Seated type | |
Rated load | kg | 2500 |
Load center distance | mm | 600 |
Tire type | mm | Solid PU |
Front wheel specification | mm | 267*114 |
Specification of driving wheel | mm | 343*135 |
Number of tires | 2/1X | |
Fork inclination (forward / backward) | 3/5 | |
Standard lifting height | mm | 7500 |
Free lifting height | mm | 2585 |
Height of mast closed | mm | 3250 |
Maximum height during lifting | mm | 8485 |
Height of roof protection frame | mm | 2190 |
Fork leg height | mm | 310 |
First pedal height | mm | 320 |
Second pedal height | mm | 530 |
Seat height | mm | 975 |
Distance between the second pedal and the roof protection frame | mm | 1615 |
Ground clearance of fork leg | mm | 110 |
Floor clearance of underbody | mm | 80 |
Overall length | mm | 2500 |
Reach distance | mm | 650 |
Front overhang distance | mm | 160 |
Wheelbase | mm | 1665 |
Overall width | mm | 1270 |
Track width (front / rear) | mm | 1158/0 |
Outside width of fork | mm | 260-820 |
Fork specifications | mm | 1070*122*40 |
Channel width (1000*1000mm tray) | mm | 2975 |
Turning radius | mm | 1945 |
Walking speed | km/h | 7.5/8 |
Lifting speed | mm/s | 150/260 |
Descent speed | mm/s | 350/160 |
Gradient | % | 6/8 |
Drive motor power | kw | 6.5 |
Lifting motor power | kw | 8.6 |
Battery voltage/ capacity | v/ah | 48/420 |
Battery weight | kg | 700 |
Vehicle weight | kg | 3650 |
Steering type | Electronic transformation | |
Parking brake type | Electromagnetic braking |
