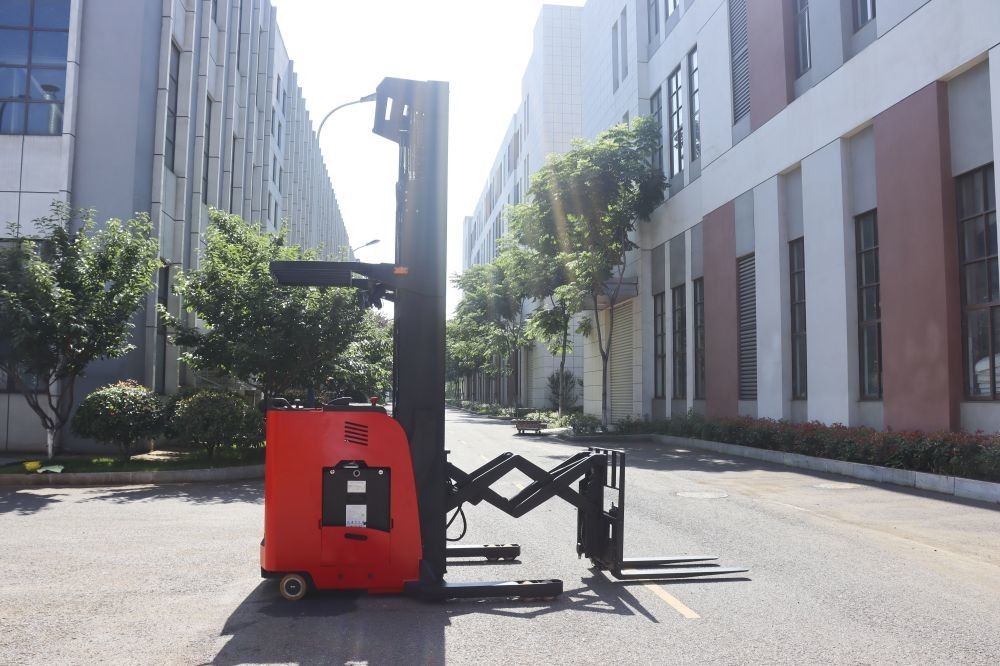

1.5 Ton Electric Pallet Lifts Polyurethane Tire With Electronic Steering

1.5 Ton Electric Pallet Lifts Polyurethane Tire With Electronic Steering

  • Highlight

    1.5 Ton Electric Pallet Lifts

    ,

    Electric Pallet Lifts Polyurethane Tire

    ,

    Electric Pallet Lifts Electronic Steering

  • Power Type
    Battery
  • Tire Type
    Polyurethane
  • Mast Type
    Duplex Mast
  • Steering Type
    Electronic Steering
  • Parking Brake Type
    Electromagnetic Braking
  • Name
    Electric Pallet Stacker
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, , MoneyGram
  • Supply Ability
    50 SETS PER MONTH

1.5 Ton Electric Pallet Lifts Polyurethane Tire With Electronic Steering

1.5 Ton Electric Pallet Lifts Polyurethane Tire With Electronic Steering 0

1.5 Ton CDD15A Customization Low Noise Hydraulic Pump Forward Shift Electric Pallet Stacker

Product parameters:

Model   CDD15-30 CDD25-30
Power type   Electric
Operation mode   Stand-on type
Rated load kg 1500 2500
Load center distance mm 500
Tire type (front/ rear)   Polyurethane
Number of tires   4/1X+2
Mast type   Duplex mast
Standard lifting height mm 3000
Free lifting height mm 0
Height of mast closed mm 2000
Height of mast open mm 3490
Min. ground clearance of fork mm 90
Overall length pedal (deployment/ retraction) mm 2515/ 2215 2525/2265
Wheelbase mm 1390
Overall width mm 850 850/12300
Track width (front/ rear) mm 490/604 505/1100
Fork specifications mm 1150*190*65 1150*205*65
Fork side outer distance mm 685/ 560 715
Turning radius pedal deployment/ retraction mm 2125/1715 2125/1720
Travel speed (full load/ no load) km/h 4.8/5.0 4.0/5.0
Lifting speed (full load/ no load) mm/s 100/150 80/125
Descent speed (full load/ no load) mm/s 150/105 160/105
Gradient (full load/ no load) % 6/ 8 5/ 8
Drive motor type   AC
Drive motor power kw 1.5 2.2
Type of lifting motor   DC
Lifting motor power kw 2.2 3
Battery voltage/ capacity v/ah 24/210
Battery weight kg 200
Vehicle weight (including battery) kg 1270 1300
Steering type   Electronic steering
Parking brake type   Electromagnetism
Parking brake operation mode   Handle operation



The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
