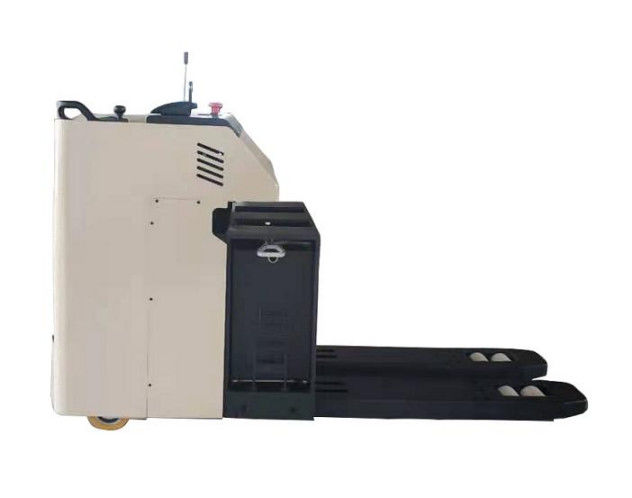

10000 KG Standing Pallet Jack Electronic Steering Integral Hydraulic Pump

10000 KG Standing Pallet Jack Electronic Steering Integral Hydraulic Pump

  • Highlight

    10000 KG Standing Pallet Jack

    ,

    Standing Pallet Jack Electronic Steering

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CBD100
  • Minimum Order Quantity
    1 SETS
  • Price
    USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

10000 KG Standing Pallet Jack Electronic Steering Integral Hydraulic Pump

10000 KG Double oil cylinders Multifunctional integrated handle Electric Pallet Truck Optional Lithium Battery

Advantage:

  •  Double oil cylinders
  • American CURTIS brand drive control system
  • Vertical transmission gearbox
  • Electronic steering, portable, mute
  • Integral hydraulic pump, solenoid valve
  • Short circuit and open circuit protection
  • Electromagnetic and regenerative braking system
  • High and low voltage limits, electrical overheating
  • Protection line fault detection, error code diagnosis



Safety:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Leisure backrest/ emergency braking device







Name   Electric pallet truck
Model   CBD100
Load kg 10000
Load center mm 600
Min. ground clearance mm 145
Max. ground clearance mm 265
Control form   Side standing
Vehicle width mm 1250
Total length of vehicle body mm 2220
Fork outer width mm 800
Maximum ground clearance of steering wheel mm 1275
Turning radius mm 2015
Fork size mm 1200x340
Right angle stacking channel mm 2720 (pallet size 1000*1000)
Traveling speed (loaded/ unloaded) km/h 5/ 6
Lifting motor (S3-15%) kw 4.5
Travel motor (S2-60min) kw 4.0
Steering motor kw 0.5
Braking form   Electromagnetic braking
Steering form   Electronic steering
Controller   CURTIS
Body weight kg 1700
Battery weight kg 500
Climbing gradient (full load/ no load) % 3/8
Battery capacity v/ah 48/300
Charger v/ah 48/50
Number of tires, front/ rear (X= drive wheel)   4/1X+8
Drive wheel mm Φ343 *135
Bearing wheel mm Φ125*100
Auxiliary wheel mm Φ150*50
Lifting speed (full load/ no load) mm/s 40/54
Falling speed (full load/ no load) mm/s 55/45
Tire type   Polyurethane
Battery replacement method   Side pull type
