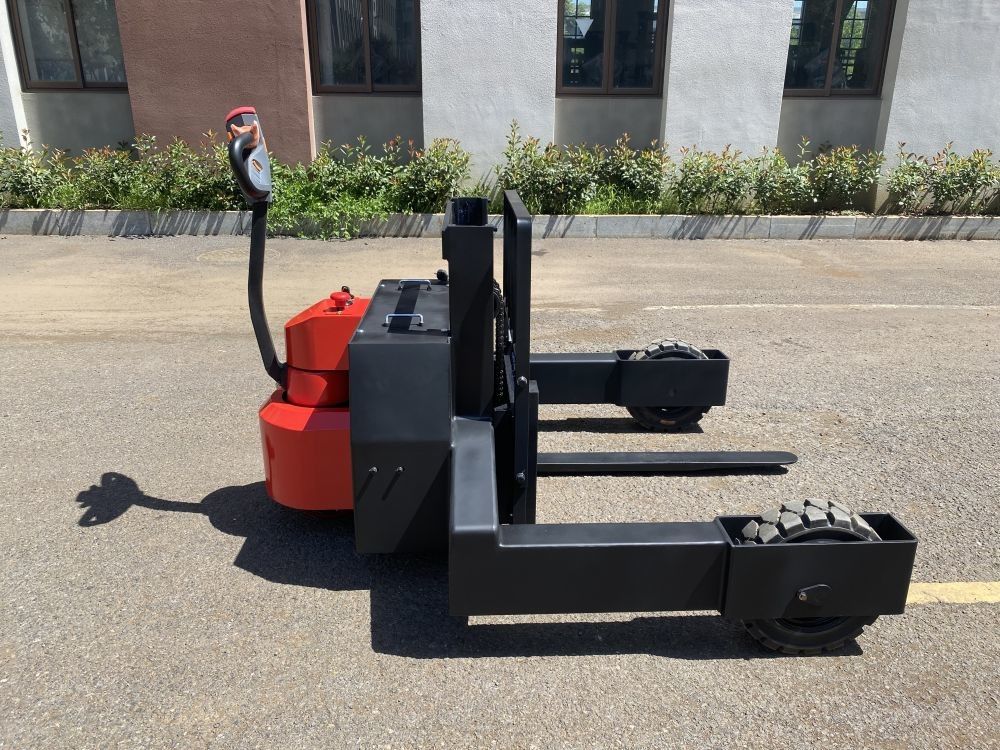

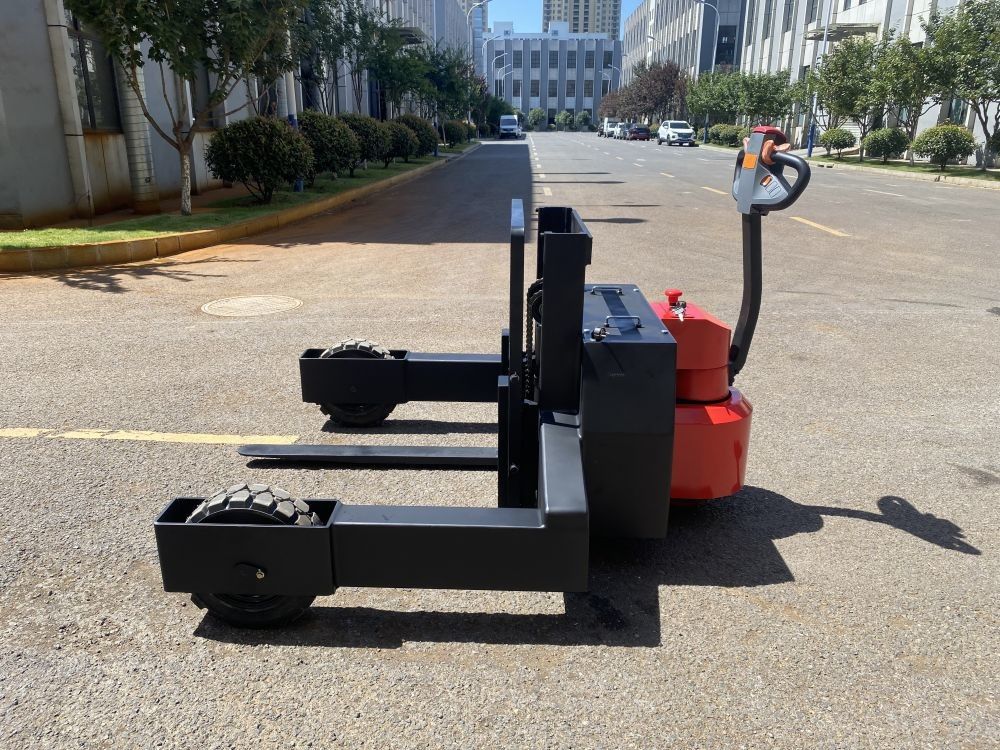

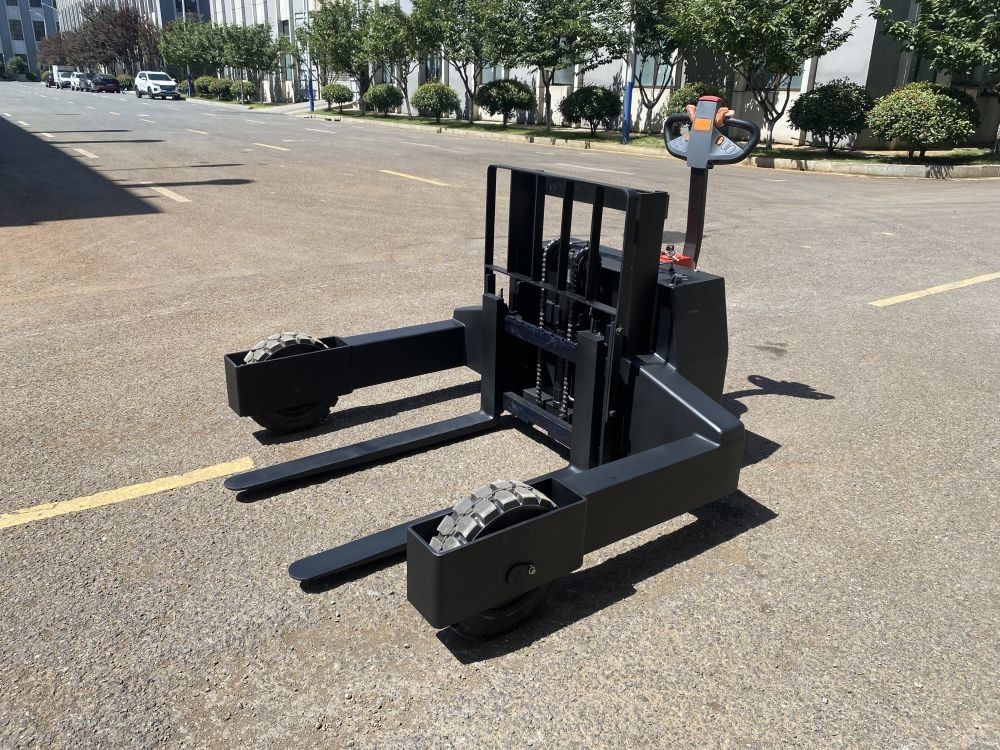

1500KG Electric Rough Terrain Pallet Stacker Lithium Battery

1500KG Rough Terrain Pallet Stacker Forged fork Optional Lithium Battery Applicable to Single Double-sided Trays

Advantage:

• AC drive motor, strong climbing force
• High strength fork legs, forged fork
• Special mast channel steel for high-strength forklift truck
• Large capacity maintenance free battery
• Built in special charger
• Multifunctional integrated handle
• Front wheel rubber solid tire
• High power lifting hydraulic pump station
• Excellent gradeability and trafficability

Safety:

• Drive stepless speed regulation, safety and mute
• Controller multiple automatic protection system
• Emergency reverse anti-collision device
• Curve deceleration

  Power type		Battery
  Driving mode		Walking type
  Rated load	kg	1500
  Load center	mm	600
  Dead weight	kg	785
  Tyre		Solid rubber wheel
  Drive wheel size	mm	Φ300*80
  Bearing wheel size	mm	Φ406*110
  Total height	mm	2130
  Lifting height	mm	1600
  Fork height above the ground (minimum)	mm	60
  Height of operating handle from the ground	mm	1320
  Overall length	mm	1960
  Overall width	mm	1580
  Fork length	mm	1070
  Fork adjustment range	mm	240-720
  Ground clearance of the whole vehicle	mm	120
  Inner width of the legs	mm	1270
  Turning radius	mm	1555
  Driving speed (full load/ no load)	km/h	3.5/4.5
  Lifting speed (full load/ no load)	mm/s	13/25
  Maximum climbing capacity (full load/ no load)	%	8/10
  Braking mode		Electromagnetic braking
  Drive motor power	kw	AC1.5
  Lifting motor power	kw	2.2
  Battery voltage/ capacity	v/ah	24/100
  Battery charger	v/a	24/15
