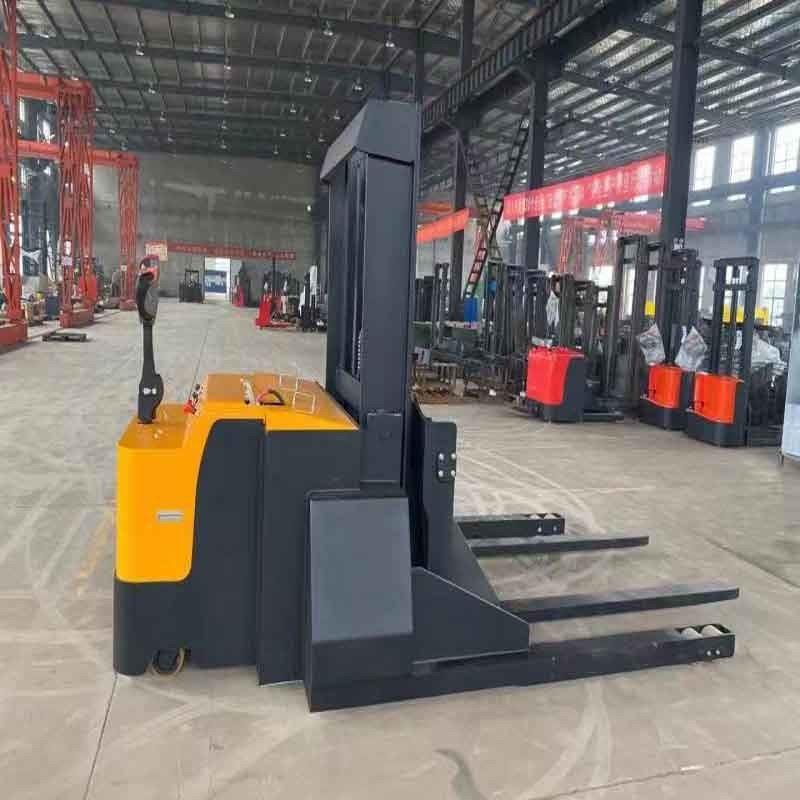

Battery Electric Pallet Stacker standing electric pallet jack 2500kg

Battery Electric Pallet Stacker standing electric pallet jack 2500kg

  • High Light

    Battery Electric Pallet Stacker


    Electric Pallet Stacker 2500kg


    Electric Pallet Jack 2500kg

  • Power Type
  • Tire Type
  • Mast Type
    Duplex Mast
  • Steering Type
    Electronic Steering
  • Parking Brake Type
    Electromagnetic Braking
  • Name
    Electric Pallet Stacker
  • Place of Origin
    Anhui, China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SET
  • Price
    $4,620.00~$4,950.00 PER SET
  • Packaging Details
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability

Battery Electric Pallet Stacker standing electric pallet jack 2500kg

Electric Pallet Stacker Standing American CURTIS Drive Control Germany Bucher Pump AC Drive Multifunctional Lever


  • Configuration and performance:
  • Wide angle view, high-strength shock absorption gantry
  • CURITS Brand Drive Control System in the United States
  • Zhongnan Transmission
  • Electronic steering, lightweight, silent
  • Shimadzu brand low noise hydraulic pumps and valves
  • Drive speed compensation short circuit and open circuit protection
  • Electromagnetic and regenerative braking system
  • High and low voltage limits, electrical overheating protection
  • Line fault detection and error code diagnosis
  • Torch brand 48V high capacity lead-acid battery



  • Automatic deceleration device for bends
  • Drive endless speed regulation
  • Controller multiple automatic protection system
  • Inductive safety seat
  • Cylinder safety shut-off valve
  • EPS AC
  • Low noise hydraulic pump
  • LED front headlights
  • Side pull battery





Model No. CDD25
Power Supply Battery
Driving Mode Stand-on
Load 2500kg
Load Center Distance 500mm
Tyre Material Polyurethane
Tyre Amount 4/1x+2
Mast type Double
Standard Lift Height 3000 mm
Free Lift Height /
Lowered Mast Height 2000 mm
Loading MAX. Height 3490 mm
MIN. Grounding clearance 85 mm
Overall Length 2515 mm /2115 mm
Axis 1390 mm
Overall Width 1230 mm
Track Front/Rear 505 mm/1100 mm
Fork Size 1150 mm/200 mm/65 mm
Distance of Unilateral External Fork 685 mm/560mm
Turning Radius 2125mm/1715mm
Driving Velocity (full/idle) 4.0/5.0 Km/h
Lifting Velocity (full/idle) 80/125 mm/s
Descending Velocity (full/idle) 160/105 mm/s
Climbing Velocity (full/idle) 5%/8%
Drive Motor AC
Drive Motor Power 1.5 kw
Lifting Motor DC
Lifting Motor Power 3 kw
Battery 24 V/210 AH
Battery Weight 200 kg
Weight (including battery) 1300 kg
Steering Type Electronic Steering
Brake System Electromagnetic
Brake Mode Lever Operation
