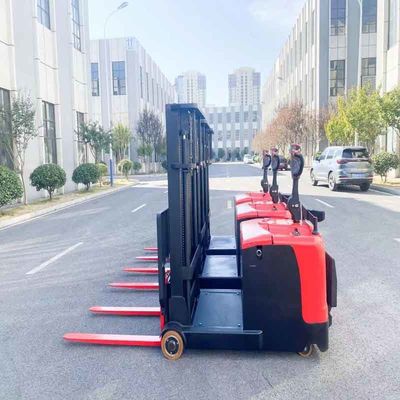

American CURTIS Drive Electric Pallet Lifts Multifunctional Lever

American CURTIS Drive Electric Pallet Lifts Multifunctional Lever

  • High Light

    Electric Pallet Lifts Multifunctional Lever

    ,

    CURTIS Drive Electric Pallet Lifts

  • Power Type
    Battery
  • Tire Type
    Polyurethane
  • Mast Type
    Duplex Mast
  • Steering Type
    Electronic Steering
  • Parking Brake Type
    Electromagnetic Braking
  • Name
    Electric Pallet Stacker
  • Place of Origin
    Anhui, China
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD25
  • Minimum Order Quantity
    1 SET
  • Price
    $2,470.00~2,999.00 PER PC
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    100 SETS PER MONTH

American CURTIS Drive Electric Pallet Lifts Multifunctional Lever

Electric Pallet Stacker Standing American CURTIS Drive Control Germany Bucher Pump AC Drive Multifunctional Lever



Model No. CDD25
Power Supply Battery
Driving Mode Stand-on
Load 2500kg
Load Center Distance 500mm
Tyre Material Polyurethane
Tyre Amount 4/1x+2
Mast type Double
Standard Lift Height 3000 mm
Free Lift Height /
Lowered Mast Height 2000 mm
Loading MAX. Height 3490 mm
MIN. Grounding clearance 85 mm
Overall Length 2515 mm /2115 mm
Axis 1390 mm
Overall Width 1230 mm
Track Front/Rear 505 mm/1100 mm
Fork Size 1150 mm/200 mm/65 mm
Distance of Unilateral External Fork 685 mm/560mm
Turning Radius 2125mm/1715mm
Driving Velocity (full/idle) 4.0/5.0 Km/h
Lifting Velocity (full/idle) 80/125 mm/s
Descending Velocity (full/idle) 160/105 mm/s
Climbing Velocity (full/idle) 5%/8%
Drive Motor AC
Drive Motor Power 1.5 kw
Lifting Motor DC
Lifting Motor Power 3 kw
Battery 24 V/210 AH
Battery Weight 200 kg
Weight (including battery) 1300 kg
Steering Type Electronic Steering
Brake System Electromagnetic
Brake Mode Lever Operation
