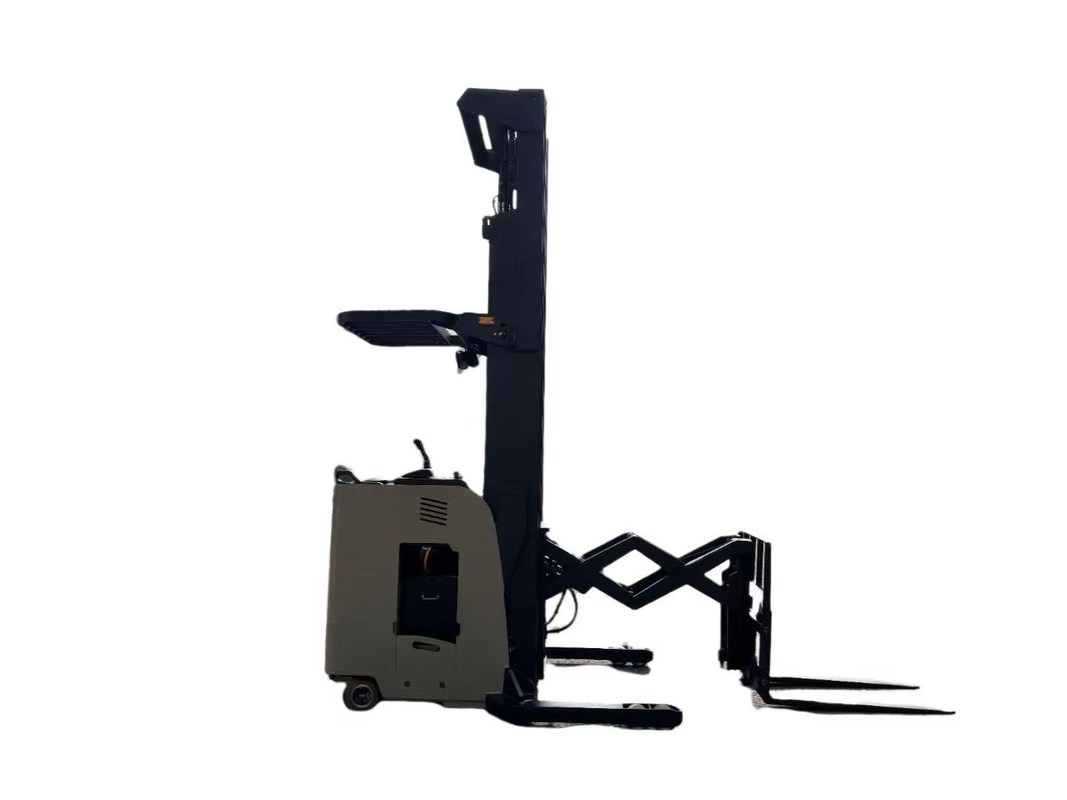

Double extension forward moving forklift
Rated load: 1600kg
Height increase: 8000mm
Forward travel: 1000mm
Forward and backward tilt: 3/5 °
Lithium battery: 51.2V320AH
Charging voltage: Three phase 230V
Curtis Control System
Electronic steering side station type
Wireless camera monitor
1. Dual extension design increases space utilization by 30%! Efficient handling, easier warehousing and logistics!
2. Forward moving flexible operation, smooth and unobstructed passage in narrow tunnels! Easily handle complex warehousing environments!
3. Strong power, with a load capacity of up to 2.5 tons! Double extension forward moving forklift, worry free heavy-duty handling!
4. Long battery life, working for 10 hours on a single charge! Meet the high-intensity homework requirements around the clock!
6. Dual extension and forward movement, combining dual advantages! Even in narrow spaces, efficient work can be done!
)
7. Special design for cold storage- Stable operation at 30 ° C low temperature! Double extension forward moving forklift, expert in cold storage operations!
8. Low noise, zero emissions, environmentally friendly and efficient! Double extension forward moving electric forklift, the preferred choice for green warehousing!
9. Double extension forward moving forklift, with high load capacity, long range, and flexible operation, solves storage problems in one stop!
10. Industry leading dual extension technology maximizes space utilization! Make your warehousing efficiency leap forward and improve
产品参数 Product parameter
| 型号 | Model | CQD20J | |
| 驱动方式 | Type of power | 铅酸电池Lead-acid battery | |
| 驾驶方式 | Driving type | 座驾/侧站Seated/Stand-on type | |
| 额定载荷 | Rated load | Q(kg) | 2000 |
| 起升高度 | Lifting height | h3(mm) | 6000 |
| 总长 | Overall length | L1(mm) | 2610 |
| 总宽 | Overall width | b1/b2 | 1260/1520 |
| 货叉尺寸 | Fork dimensions | s/e/(mm) | 1070/122/40 |
| 货叉外侧距 | Outside width of forks | b5(mm) | 266-720 |
| 支腿内侧距 | Inside width of support legs | b4(mm) | 1280 |
| 货叉前倾/后仰 | The fork lean forward/backward | 3/5. | |
| 门架闭合高度 | Mast closed height | h1(mm) | 2980 |
| 自由起升高度 | Free lifting height | h2(mm) | 2050 |
| 起升时门架最大高度(含挡货架) | Max height of mast duringlifting(including load backrest) | h4(mm) | 7065 |
| 护顶架高度 | Height of overhead guard | h6(mm) | 2325 |
| 站板高度 | Height of station board | h7(mm) | 360 |
| 支腿离地高度 | Height of support legs off the ground | h8(mm) | 130 |
| 挡货架宽度(加螺栓) | Width of load backrest(add bolt) | b3(mm) | 850 |
| 前移距离 | Forward distance | L4(mm) | 600 |
| 门架离地间隙 | Min height of mast off the ground | mm | 130 |
| 整车离地间隙 | Height of vehicle off the ground | m(mm) | 50 |
| 蓄电池,电压/额定容量 | Battery,voltage/capacity | V/Ah | 48/400 |
| 电池重量 | Weight of battery | kg | 655 |
| 整车重量(含电池) | Vehicle weight (including battery) | kg | 4000 |
| 驱动电机功率(S2-60min) | Driving motor Power(S2-60MIN) | kw | 6.5(AC) |
| 起升电机功率 | Lifting motor power | kw | 8.6 |
| 轮胎 | Tire | 聚氨酯Polyurethane | |
| 轮胎尺寸,驱动轮 | Tire dimensions,drive wheel | mm | φ343x135 |
| 轮胎尺寸,承重轮 | Tire dimensions,bear whee | mm | φ130x85 |
| 平衡轮尺寸 | Tire dimensions,balance whee | mm | φ180x76 |
| 车轮数量,前/后(x=驱动轮) | Numberof wheels,front/rear(x=drive wheel) | 4/1X-2 | |
| 轮距,驱动侧 | Wheel track,drive Side | mm | 830 |
| 轮距,承重侧 | Wheel track,bear Side | mm | 1407 |
| 轴距 | Wheelbase | y(mm) | 1707 |
| 载荷中心 | Load center | C(mm) | 500 |
| 前悬距 | Front overhang | x(mm) | 280 |
| 转弯半径 | Turn radius | Wa(mm) | 1975 |
| 堆垛通道宽度(托盘1200x1000)1200跨货叉方 向 | Stacking channel width (pallet 1200x1000)1200 cross-fork direction | Ast(mm) | 3030 |
| 堆垛通道宽度(托盘1200x800)1200沿货叉方向 | Stacking channel width(pallet 1200x800)1200 along fork direction | Ast(mm) | 3080 |
| 满载时桥负荷,货叉前移,驱动侧/承重侧 | Full axle load,fork forward,drive side/bear side | kg | 1645/4355 |
| 满载时桥负荷,货叉收回,驱动侧/承重侧 | Full axle load,fork recovery,drive side/bear side | kg | 2365/3635 |
| 空载时桥负荷,驱动侧/承重侧 | No-load axle load,drive side/load-bear side | kg | 2510/1490 |
| 行驶速度,满/空载 | Driving speed,full load/no load | km/h | 7.8/8 |
| 起升速度,满/空载 | Lifting speed,full load/no load | mm/s | 140/260 |
| 下降速度,满/空载 | Descent speed,full load/no load | mm/s | 300/150 |
| 制动方式 | Braking type | 电磁制动Electromagnetic brake | |
| 转向方式 | Steering type | 电转向Electronic steering | |
| 电池更换方式 | Battery replacement method | 侧拉式Side pull type | |
| 备注:悬挂侧移器,总长L1增加65mm,堆垛通道宽度增加65mm.悬挂侧移器,货叉最大外侧距为700mm. | |||
| Remarks:the length of Ll increased by 65mm,.and the widthof stacking channel increased by 65mm.The maximum outside distance of the forkis700mm. | |||
Product Parameter
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the new which means has Novel manufacturer and professional produce of electric forklift for more than
10 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model.
For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM and ODM service?
A4: Yes. We can do it .
Our products are sold all over the world, you can rest assured.
