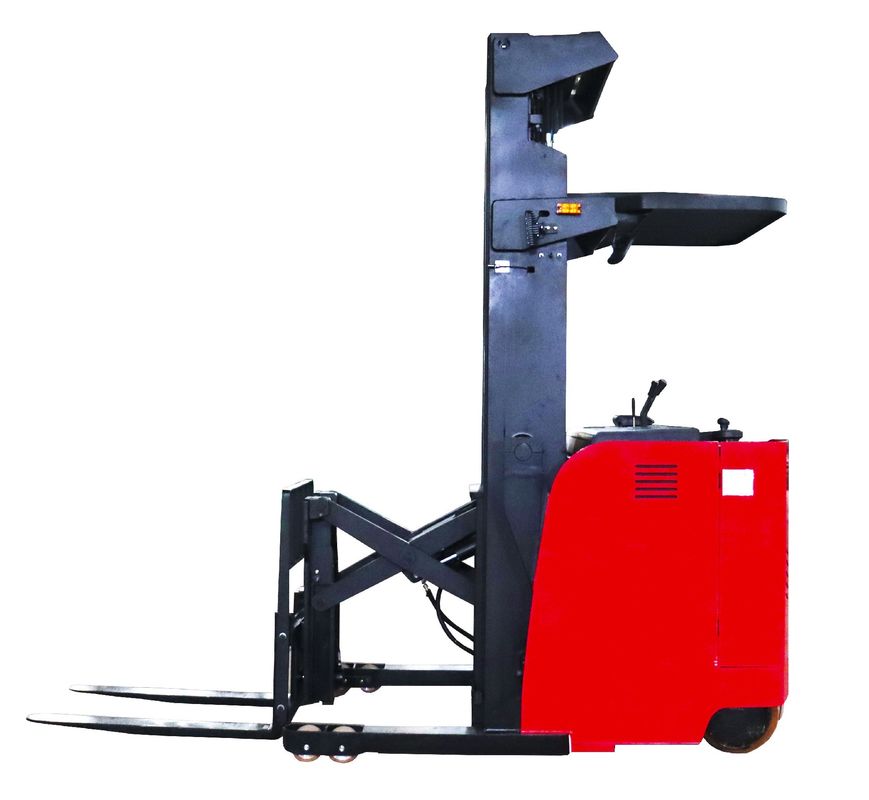

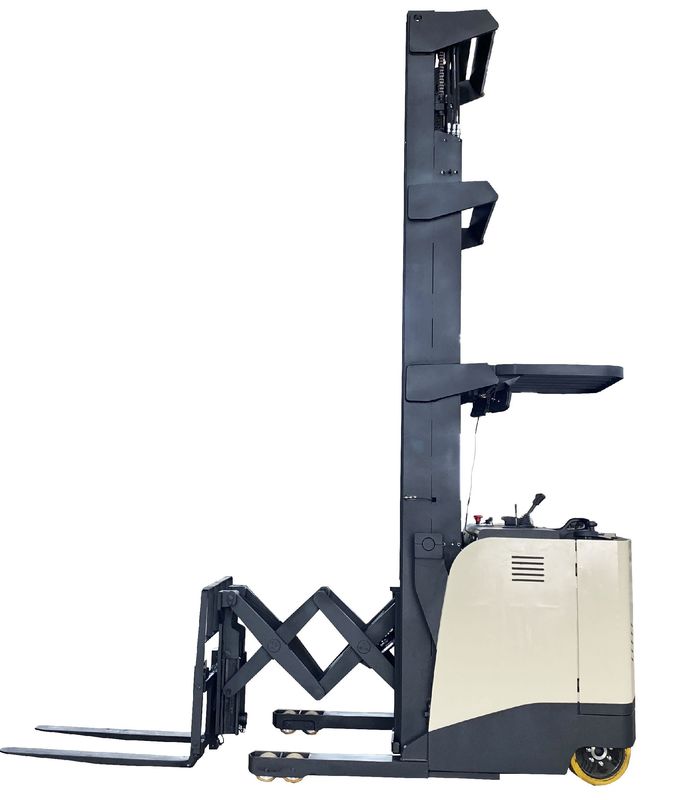

OEM/ODM Three Section Fully Free Gantry Rated Load 2.0 Ton Seat Style Double Extension Position
Wide angle view high-strength shock-absorbing gantry
CURTIS Brand Drive Control System in the United States
Zhongnan Transmission
Electronic steering, lightweight, silent
Shimadzu brand low noise hydraulic pumps and valves
Drive speed compensation short circuit and open circuit protection
AC drive, brushless, motor maintenance free
High and low voltage limited electrical overheating protection
Line fault detection error code diagnosis
Electromagnetic and regenerative braking system
Body damping system
security
Automatic deceleration device for bends
Automatic deceleration of forks at high cargo positions
Drive stepless speed regulation
Controller multiple automatic protection system
Emergency braking device
Cylinder safety shut-off valve
AC EPS
Low noise hydraulic
Standard fork front tilt back
Provide non-standard customization
| Model | CQD15 | CQD25 | |
| Power type | Electric | ||
| Operation mode | Seated type | ||
| Rated load | kg | 1600 | 2500 |
| Load center distance | mm | 600 | 600 |
| Tire type | mm | Solid PU | |
| Front wheel specification | mm | 267*114 | |
| Specification of driving wheel | mm | 343*135 | |
| Number of tires | 2/1X | ||
| Fork inclination (forward / backward) | 3/ 5 | ||
| Standard lifting height | mm | 7500 | |
| Free lifting height | mm | 2585 | |
| Height of mast closed | mm | 3150 | 3250 |
| Maximum height during lifting | mm | 8485 | |
| Height of roof protection frame | mm | 2190 | |
| Fork leg height | mm | 310 | |
| First pedal height | mm | 320 | |
| Second pedal height | mm | 530 | |
| Seat height | mm | 975 | |
| Distance between the second pedal and the roof protection frame | mm | 1615 | |
| Ground clearance of fork leg | mm | 110 | |
| Floor clearance of underbody | mm | 80 | |
| Overall length | mm | 2440 | 2500 |
| Reach distance | mm | 550 | 650 |
| Front overhang distance | mm | 160 | |
| Wheelbase | mm | 1495 | 1665 |
| Overall width | mm | 1270 | |
| Track width (front / rear) | mm | 1158/0 | |
| Outside width of fork | mm | 210-800 | 260-820 |
| Fork specifications | mm | 1070*100*35 | 1070*122*40 |
| Channel width (1000*1000mm tray) | mm | 2745 | 2975 |
| Turning radius | mm | 1775 | 1945 |
| Walking speed | km/h | 7.5/8 | |
| Lifting speed | mm/s | 150/260 | |
| Descent speed | mm/s | 300/160 | 350/160 |
| Gradient | % | 8/10 | 6/8 |
| Drive motor power | kw | 4.5 | 6.5 |
| Lifting motor power | kw | 6.3 | 8.6 |
| Battery voltage/ capacity | v/ah | 48/400 | 48/420 |
| Battery weight | kg | 650 | 700 |
| Vehicle weight | kg | 3500 | 3650 |
| Steering type | Electronic transformation | ||
| Parking brake type | Electromagnetic braking | ||
