Product parameters:

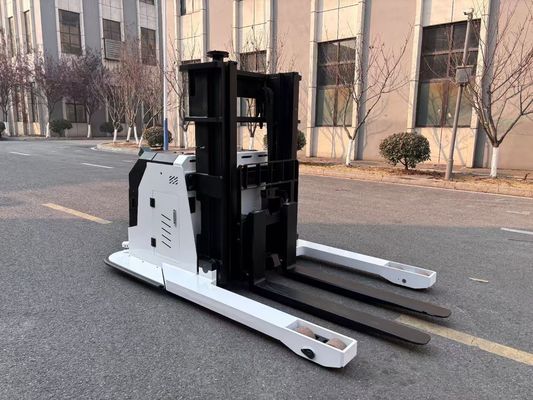

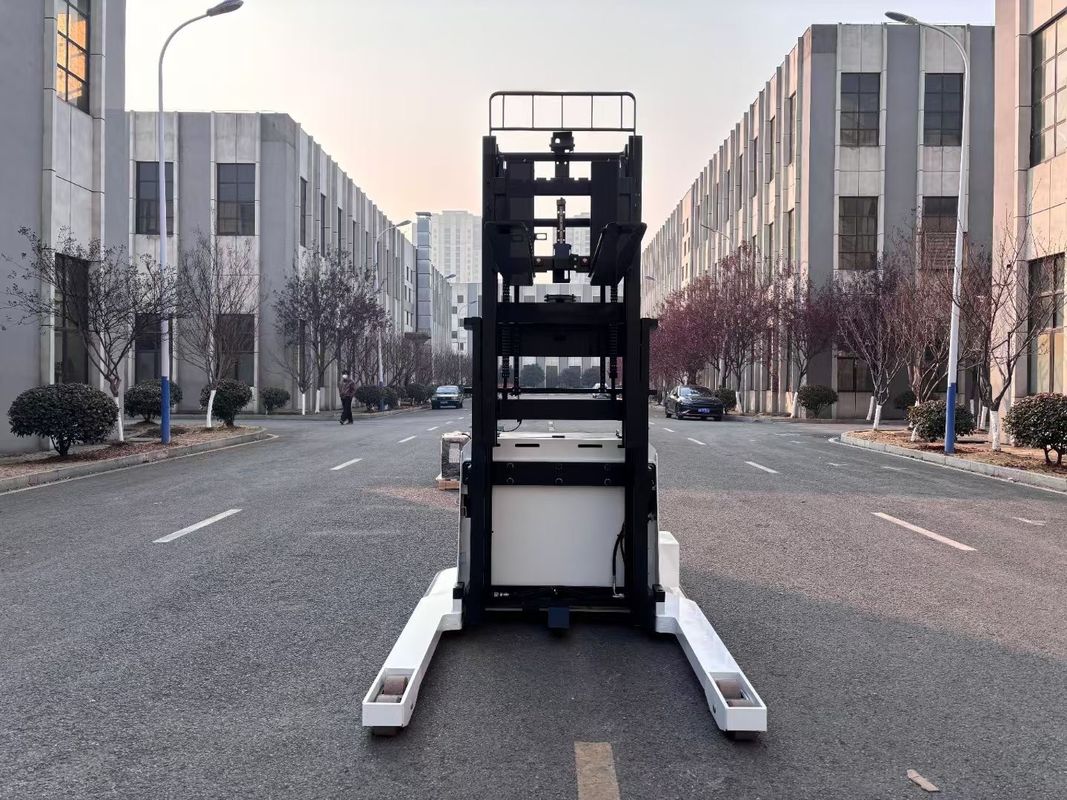

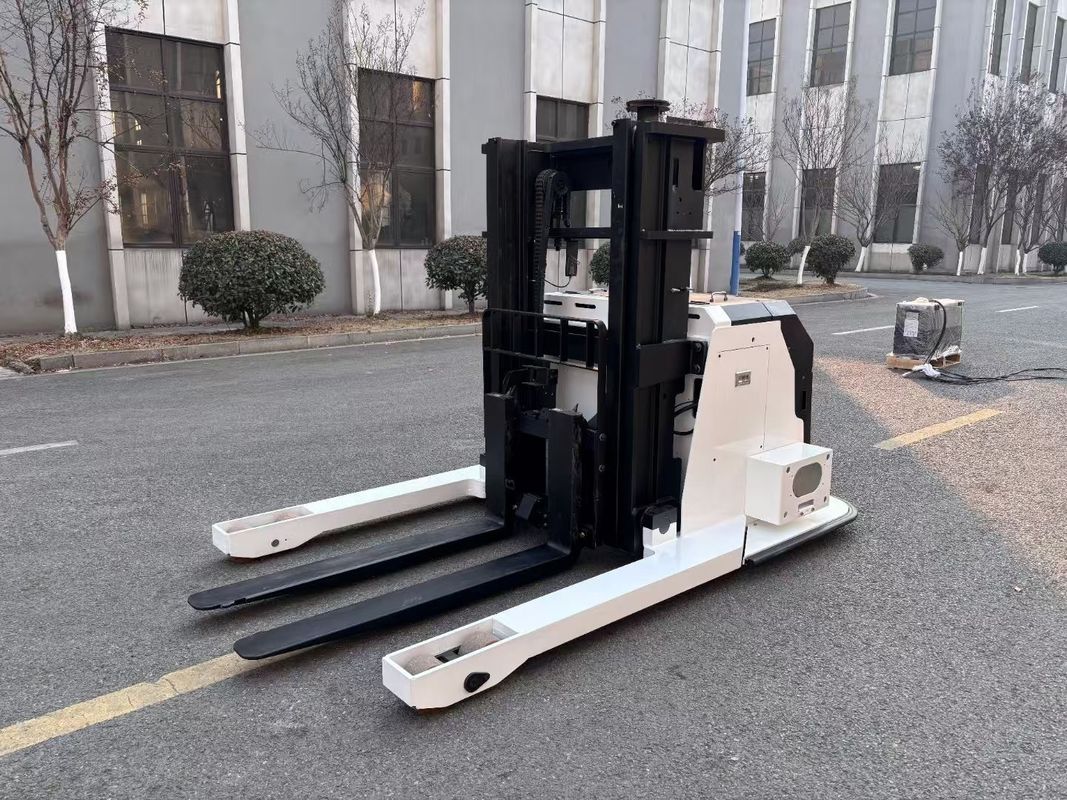

Non standard AGV body
Rated load capacity: 4000kg
Lifting height: 1800mm
Fork length: 1350mm
Fork adjustment range: 400-700mm
Curtis Control System
CAN communication
Install various switch brackets and electrical cabinets
Install a safety edge line control test handle
Advantage:
| Name | AGV forklift body | |
| Model | CDD40 | |
| Rated load | kg | 500 |
| Load center distance | mm | 500 |
| wheel base | mm | 895 |
| Vehicle weight | kg | 850 |
| Tire type | Polyurethane | |
| Mast type | Duplex mast | |
| Number of cylinders | piece | 2 |
| Bearing wheel | mm | 85*70 |
| Drive wheel | mm | 230*75 |
| Auxiliary wheel | mm | 100*50 |
| Lifting height | mm | 1350 |
| Overall length | mm | 1800 |
| Overall width | mm | 890 |
| Overall height (including laser fixed seat) | mm | 1950 |
| Fork size | mm | 1200*190*65 |
| Outside width of fork | mm | 780 |
| Min. ground clearance | mm | 29 |
| Turning radius (Wa) | mm | 1140 |
| Right angle stacking channel width (1200*1000, 1200 horizontal) | mm | 2000 (+150) |
| Driving speed (full load/ no load) | km/h | 5/5.5 |
| Lifting speed (full load/ no load) | mm/s | 90/120 |
| Descent speed (full load/ no load) | mm/s | 140/110 |
| Max. climbing capacity(full load/ no load) | 5/8 | |
| Braking mode | Electromagnetic type | |
| Drive motor power | kw | 1.5 |
| Lifting motor power | kw | 2 2 |
| Lithium battery, voltage/ rated capacity | v/ah | 24/160 |
| Battery weight | Electromagnetic braking | |
| Steering system | Electronic steering |
The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
