Customization Robotic Forklift Truck CAN Communication Wired Test Handle

Customization Robotic Forklift Truck CAN Communication Wired Test Handle

  • Highlight

    Customization Robotic Forklift Truck

    ,

    Robotic Forklift Truck CAN Communication

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD10J-16
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

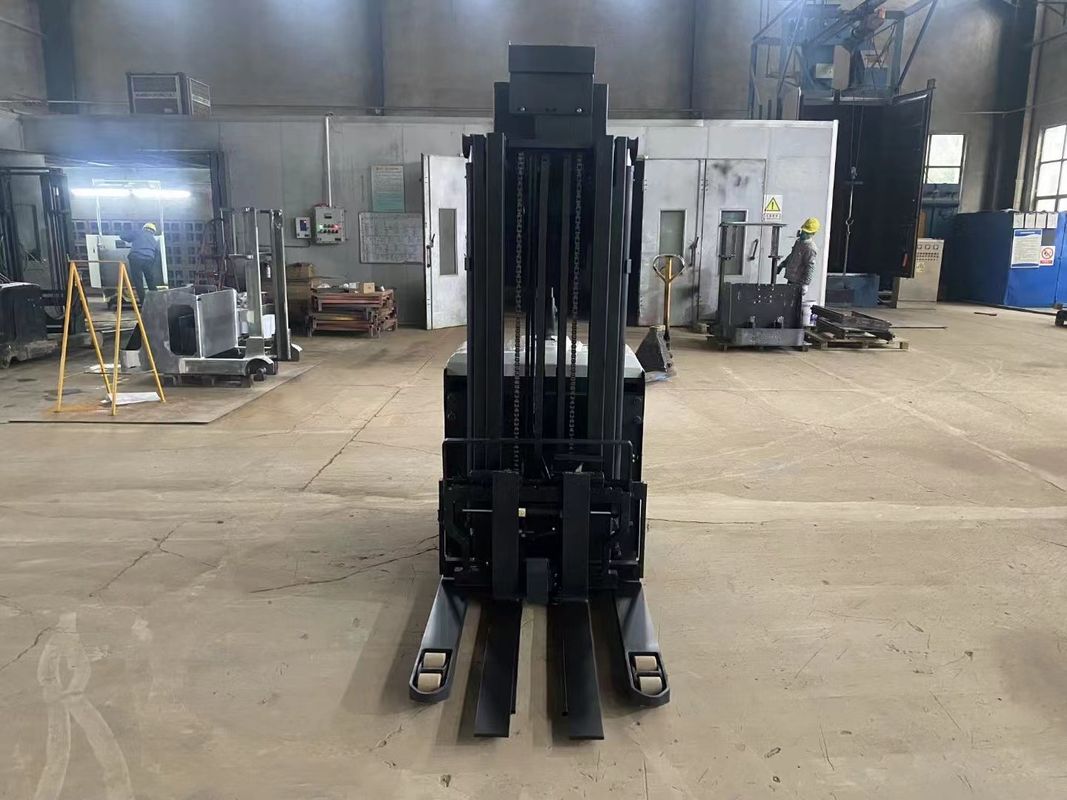

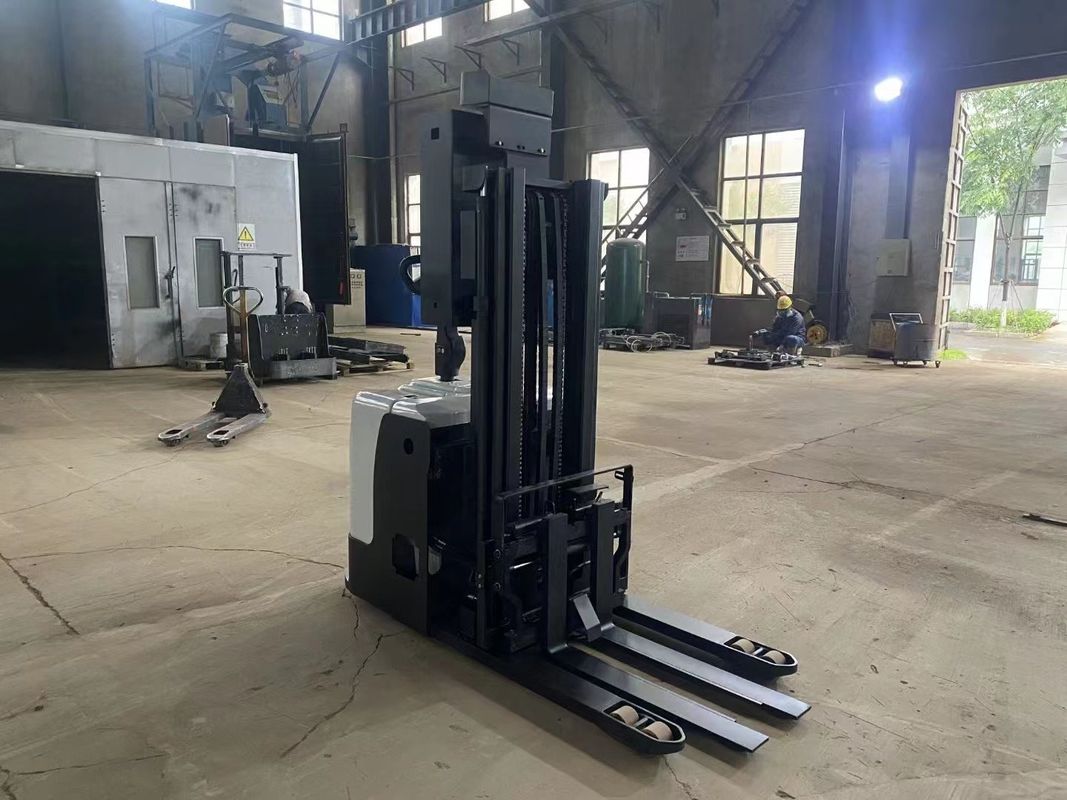

Customization Robotic Forklift Truck CAN Communication Wired Test Handle

Customization AGV Forklift Body Rated Load 1000 KG Lifting Height 1600 MM CAN Communication Wired Test Handle

Name   AGV forklift body
Model   CDD20J-16
Rated load kg 1000
Load center distance mm 500
wheel base mm 895
Vehicle weight kg 850
Tire type   Polyurethane
Mast type   Duplex mast
Number of cylinders piece 2
Bearing wheel mm 85*70
Drive wheel mm 230*75
Auxiliary wheel mm 100*50
Lifting height mm 1600
Overall length mm 1600
Overall width mm 890
Overall height (including laser fixed seat) mm 1950
Fork size mm 1150*190*65
Outside width of fork mm 780
Min. ground clearance mm 29
Turning radius (Wa) mm 1140
Right angle stacking channel width (1200*1000, 1200 horizontal) mm 2000 (+150)
Driving speed (full load/ no load) km/h 5/5.5
Lifting speed (full load/ no load) mm/s 90/120
Descent speed (full load/ no load) mm/s 140/110
Max. climbing capacity(full load/ no load)   5/8
Braking mode   Electromagnetic type
Drive motor power kw 1.5
Lifting motor power kw 2 2
Lithium battery, voltage/ rated capacity v/ah 24/160
Battery weight   Electromagnetic braking
Steering system   Electronic steering
