Customization AGV Body Electric Pallet Jack Truck Rated Load Capacity 4000 kg
-
Place of OriginANHUI, CHINA
-
Brand NameYONGJIELI
-
CertificationCE
-
Model NumberCDD
-
Minimum Order Quantity1 SETS
-
PriceNegotiation
-
Packaging DetailsBULK IN CONTAINER
-
Delivery Time30 WORK DAYS
-
Payment TermsL/C, T/T, D/A, D/P, Western Union
-
Supply Ability50 SETS PER MONTH

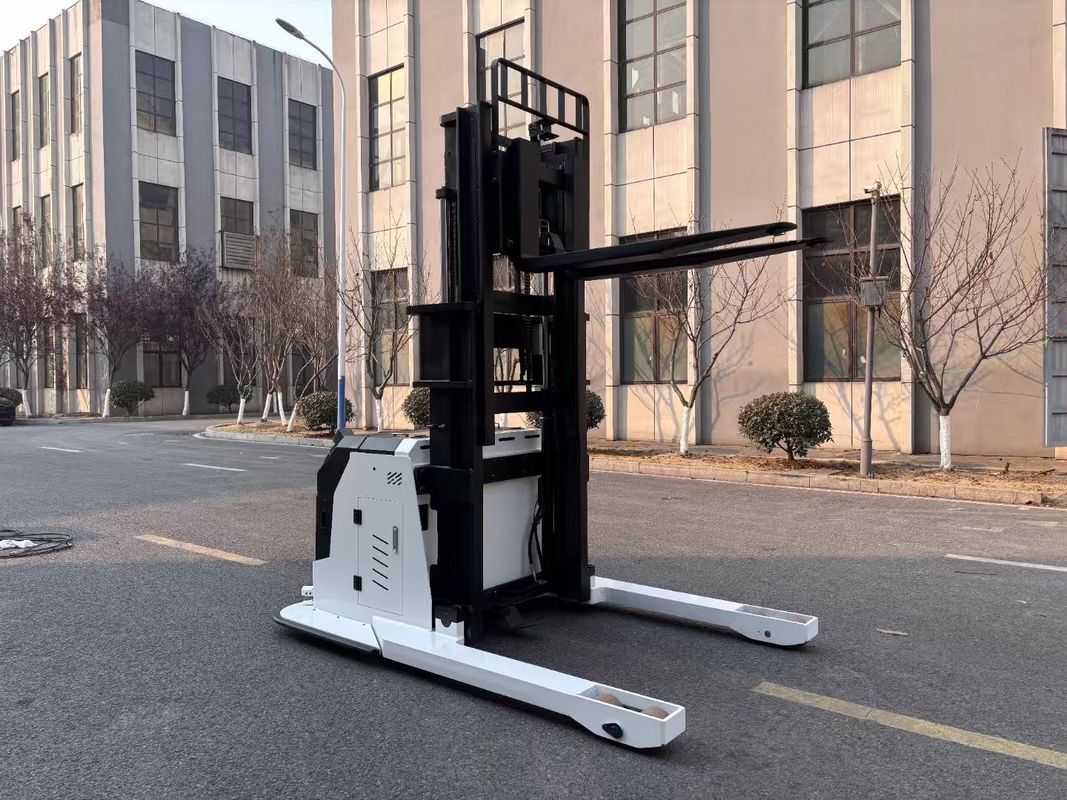

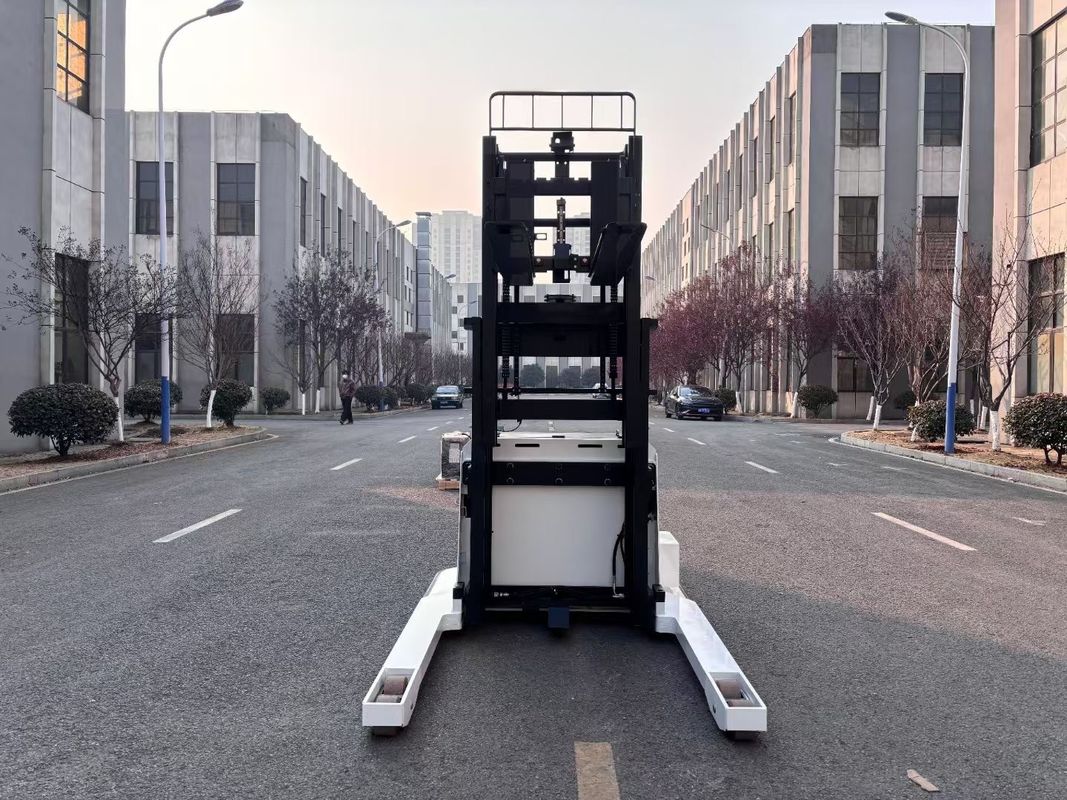

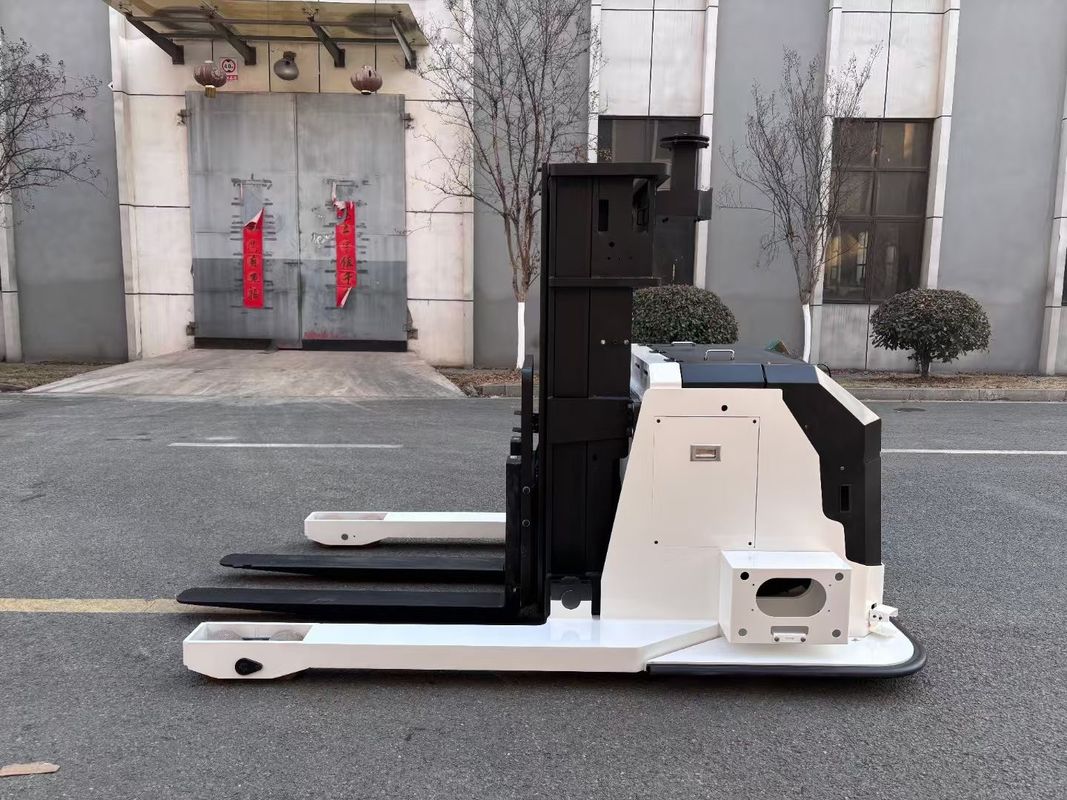

Customization AGV Body Electric Pallet Jack Truck Rated Load Capacity 4000 kg
Product parameters:
Non standard AGV body
Rated load capacity: 4000kg
Lifting height: 1800mm
Fork length: 1350mm
Fork adjustment range: 400-700mm
Curtis Control System
CAN communication
Install various switch brackets and electrical cabinets
Install a safety edge line control test handle
Advantage:
- Short wheelbase, ultra short body
- American CURTIS brand drive control system
- Integrated handle for debugging by wire
- Solenoid hydraulic valve, lowering proportional valve
- Low noise hydraulic pump, hydraulic pump control
- CAN communication, lithium battery
- Navigator fixed base
- Various induction switch brackets
- Body damping system
Safety:
- Curve automatic deceleration device
- Drive stepless speed regulation
- Controller multiple brake protection system
- Emergency braking device
- Cylinder safety shut-off valve
- Blue light warning
| Name | AGV forklift body | |
| Model | CDD40 | |
| Rated load | kg | 500 |
| Load center distance | mm | 500 |
| wheel base | mm | 895 |
| Vehicle weight | kg | 850 |
| Tire type | Polyurethane | |
| Mast type | Duplex mast | |
| Number of cylinders | piece | 2 |
| Bearing wheel | mm | 85*70 |
| Drive wheel | mm | 230*75 |
| Auxiliary wheel | mm | 100*50 |
| Lifting height | mm | 1350 |
| Overall length | mm | 1800 |
| Overall width | mm | 890 |
| Overall height (including laser fixed seat) | mm | 1950 |
| Fork size | mm | 1200*190*65 |
| Outside width of fork | mm | 780 |
| Min. ground clearance | mm | 29 |
| Turning radius (Wa) | mm | 1140 |
| Right angle stacking channel width (1200*1000, 1200 horizontal) | mm | 2000 (+150) |
| Driving speed (full load/ no load) | km/h | 5/5.5 |
| Lifting speed (full load/ no load) | mm/s | 90/120 |
| Descent speed (full load/ no load) | mm/s | 140/110 |
| Max. climbing capacity(full load/ no load) | 5/8 | |
| Braking mode | Electromagnetic type | |
| Drive motor power | kw | 1.5 |
| Lifting motor power | kw | 2 2 |
| Lithium battery, voltage/ rated capacity | v/ah | 24/160 |
| Battery weight | Electromagnetic braking | |
| Steering system | Electronic steering |
The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
