Working principle
- The gantry or fork frame of a forward moving forklift can move forward and backward.
- A gantry forward moving forklift refers to a forklift in which the gantry drives the fork to move forward during operation, extending beyond the front wheels to pick up or drop goods.
- When walking, the fork carries the goods back, so that the center of gravity of the goods is within the support surface;
- The fork forward moving forklift refers to the forklift that is driven by the shelf to move the fork forward beyond the front wheel for operation, and when walking, the fork frame drives the fork to retract back into the support plane.
- The forward moving forklift has two extended legs, which are higher and have two wheels at the front end. The function of the legs is to ensure the stability of the forklift when loaded.
- Compared with plug-in forklifts, the front wheels are larger and the support legs are higher.
- During operation, the support legs cannot be inserted into the bottom of the goods, while the gantry can move along the inner track of the support legs with the entire lifting mechanism.the fork can retract slightly after lifting the goods, ensuring the stability of forklift operation.
- The door frame of the forward moving forklift can move forward along the track on the inner side of the support legs, making it easy to pick up goods. After forking the goods, the gantry is raised to a certain height, and the gantry can return to its original position along the inner track of the support legs, so that the center of gravity of the goods is inside the front and rear support legs of the vehicle, thus ensuring good stability. Suitable for operations in workshops and warehouses.

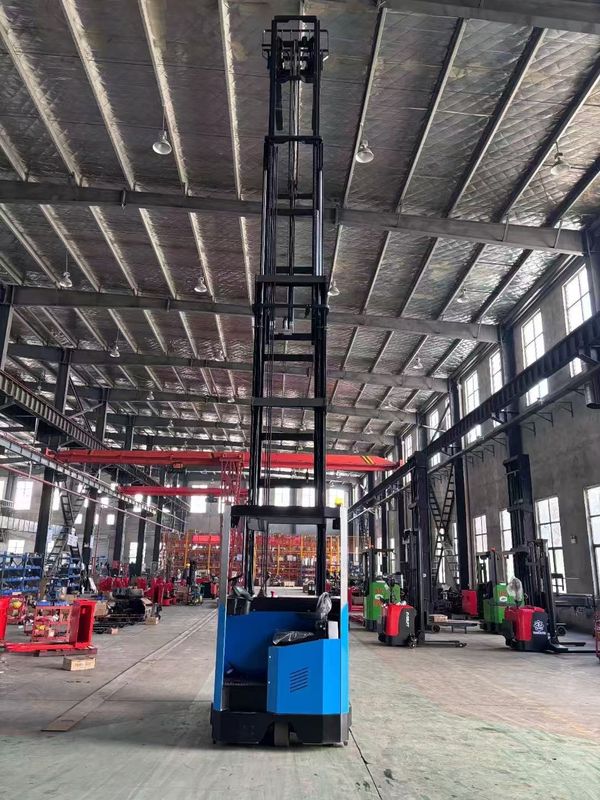

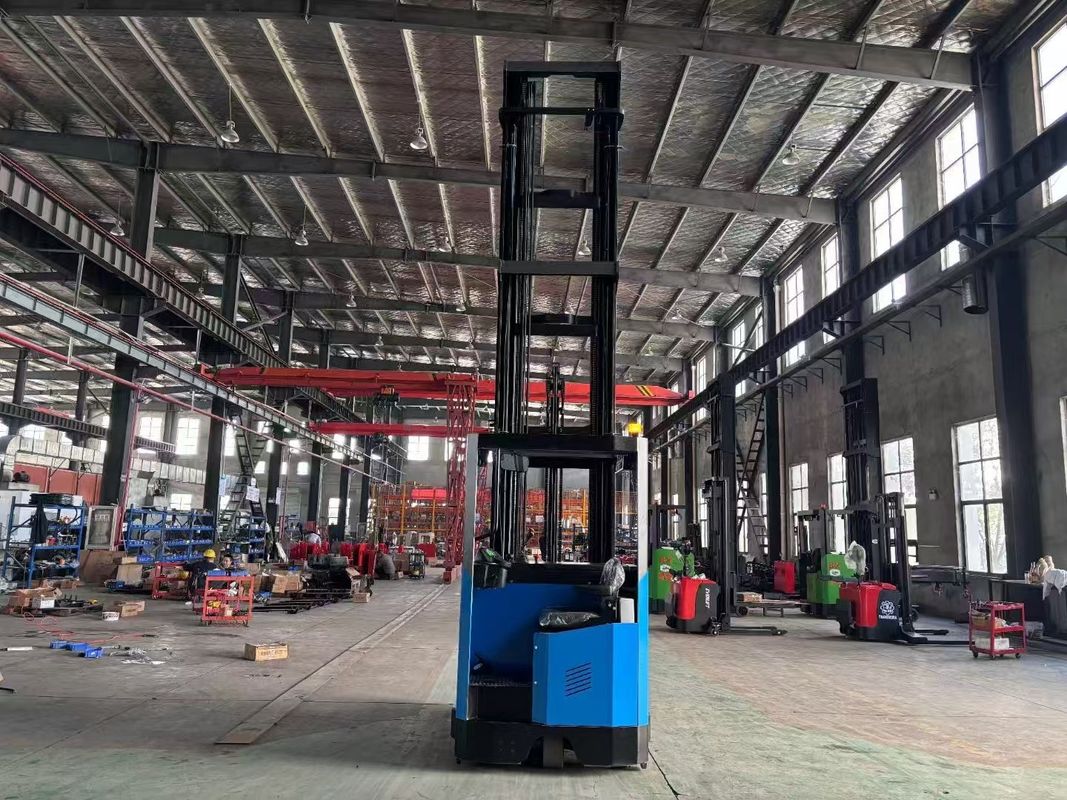

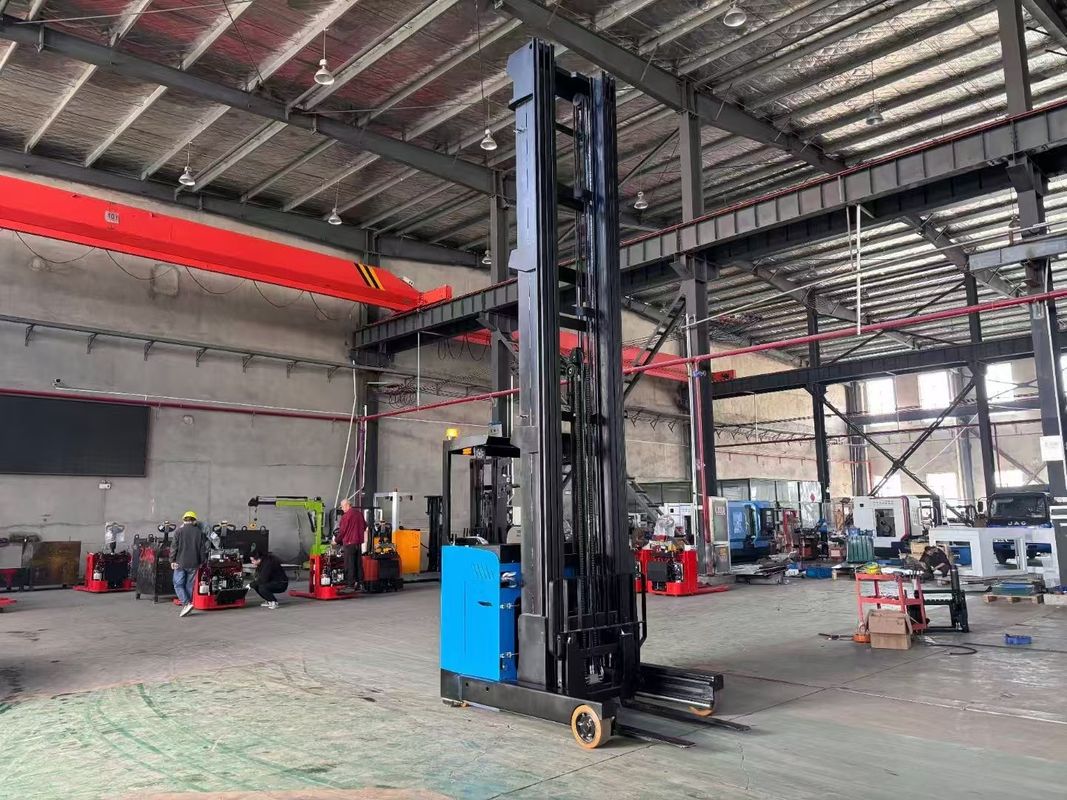

| Model |
|
CSD15GC |
| Rated load |
kg |
2000 |
| Maximum lifting height |
mm |
13500 |
| Load center |
|
500 |
| Tire configuration |
|
Polyurethane wheel |
| Operation mode |
|
Seated type |
| Mast tilt angle |
|
2/4 |
| Fork size |
mm |
1070*120*40 |
| Fork adjustment range |
mm |
260-720 |
| Mast forward movement distance |
mm |
550 |
| Mast type |
|
Triplex full free mast |
| Overall length |
mm |
2480 |
| Overall width |
mm |
1100 |
| Height of mast |
mm |
2655 |
| Max. height of fork lifting (including gear rack) |
mm |
6985 |
| Turning radius |
mm |
1755 |
| Height of roof protection frame |
mm |
2210 |
| Minimum stacking channel |
mm |
2850 (1000*1000mm pallet) |
| Minimum ground clearance |
mm |
70 |
| Maximum driving speed |
km/h |
4.0/5.0 |
| Rising speed |
mm/s |
90/140 |
| Gradeability |
% |
≤5 |
| Total weight |
kg |
2900 |
| Drive wheel |
mm |
230*90 |
| Front wheel |
mm |
210*85 |
| Auxiliary wheel |
mm |
150*50 |
| Battery voltage/ capacity |
v/ah |
48/500 |
| Lithium battery charger |
v/ah |
24/40 |
| Lifting motor |
kw |
3.0 |
| Drive motor |
kw |
2.2 |
| Travel speed regulation mode |
|
Hall accelerator |
| Braking mode |
|
Electromagnetic braking |
| Steering mode |
|
Electric steering |
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the new which means has Novel manufacturer and professional produce of electric forklift for more than
10 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model.
For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM and ODM service?
A4: Yes. We can do it .
Application Scenarios:
- Single-Reach Forklift: Suitable for warehouses with shallow racking depths and operations in narrow aisles.
- Double-Reach Forklift: Better suited for environments where deeper racking systems are used or in warehouses with limited floor space
