Polyurethane Tire Type Electric Stacker Lifter with 2 Tons Rated Load and 13500 mm Height Increase

Polyurethane Tire Type Electric Stacker Lifter with 2 Tons Rated Load and 13500 mm Height Increase

  • Highlight

    2 Tons Electric Stacker Lifter

    ,

    13500 mm Electric Stacker Lifter

    ,

    Polyurethane Tire Electric Stacker Lifter

  • Name
    Reach Electric Pallet Forklift
  • Power Type
    Electric
  • Operation Mode
    Side Seated
  • Parking Brake Type
    Electromagnetism
  • Tire Type (front/ Rear)
    Polyurethane
  • Drive Motor
    AC
  • Power Supply
    48V500AH
  • Rated Load Capacity
    2000 Kg
  • Lifting Height
    13500 Mm
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CSD15
  • Minimum Order Quantity
    1 SETS
  • Price
    USD8500.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    25 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

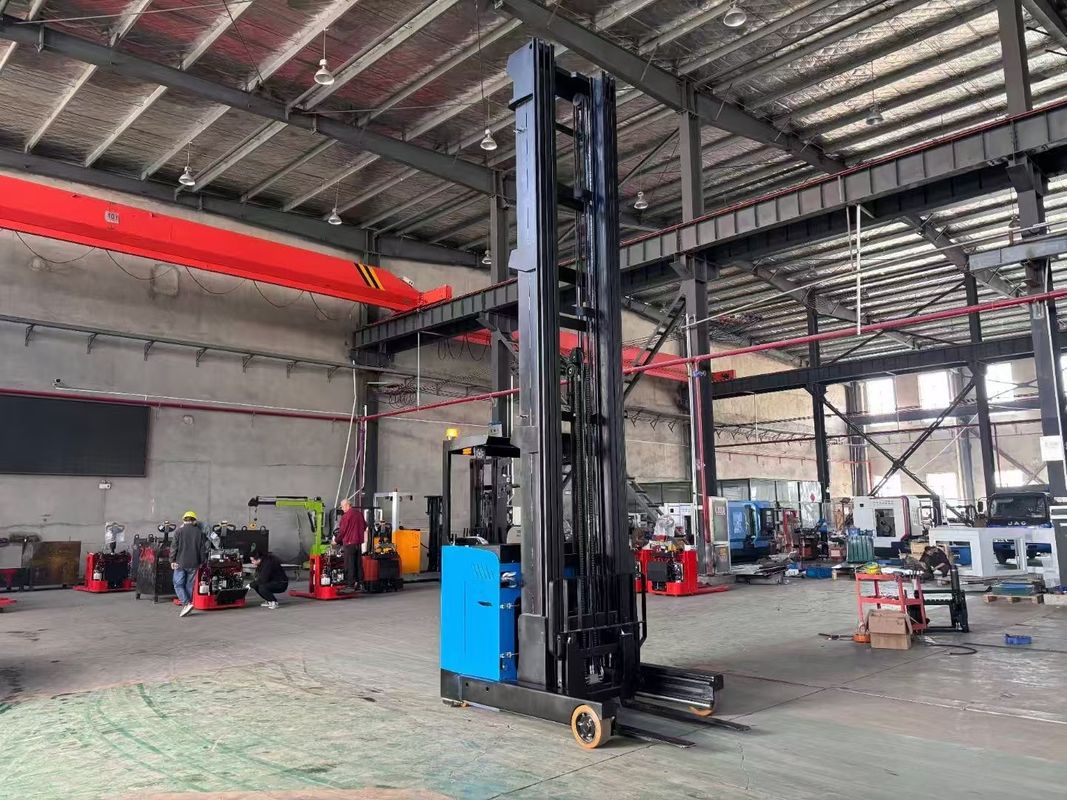

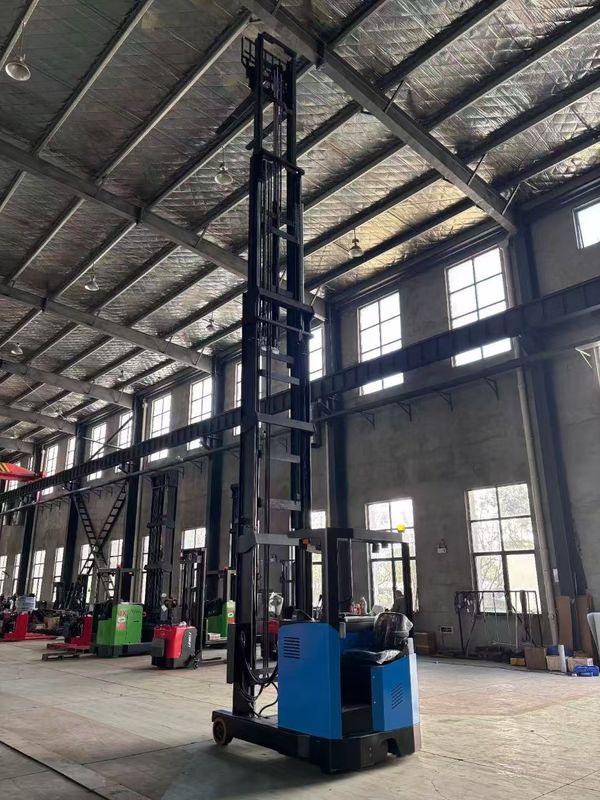

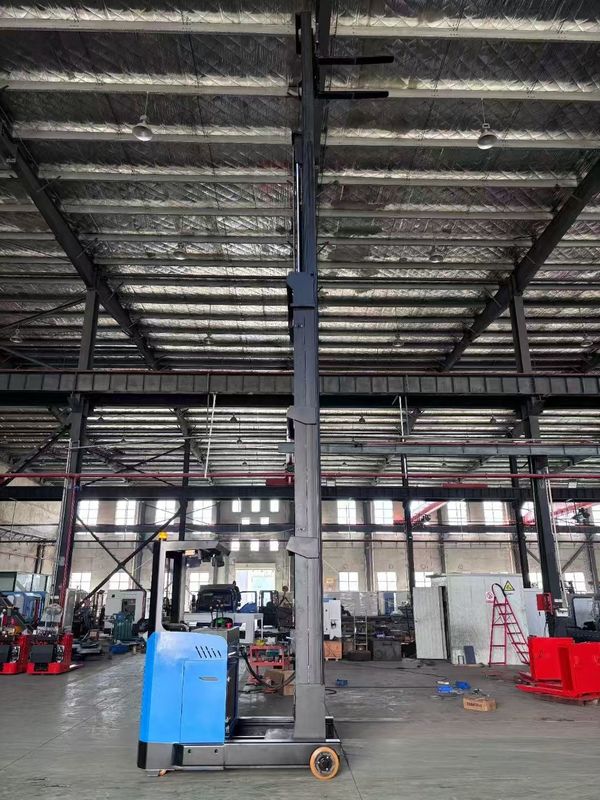

Polyurethane Tire Type Electric Stacker Lifter with 2 Tons Rated Load and 13500 mm Height Increase

Forward moving forklift:



The door frame of the forward moving forklift can move forward and the fork can tilt forward and backward;

Mainly suitable for high-speed logistics, high stacking quantity of goods, frequent stacking and picking up of goods, and efficient high-level storage warehouses.

Fast lifting speed, fast walking speed, and improved work efficiency;

Load capacity: 1000-3000kg, lifting height 3000-13500mm, optional battery capacity, side pull battery structure, quick battery replacement, lithium battery and lead-acid battery options.





Model   CSD15GC
Rated load kg 2000
Maximum lifting height mm 13500
Load center   500
Tire configuration   Polyurethane wheel
Operation mode   Seated type
Mast tilt angle   2/4
Fork size mm 1070*120*40
Fork adjustment range mm 260-720
Mast forward movement distance mm 550
Mast type   Triplex full free mast
Overall length mm 2480
Overall width mm 1100
Height of mast mm 2655
Max. height of fork lifting (including gear rack) mm 6985
Turning radius mm 1755
Height of roof protection frame mm 2210
Minimum stacking channel mm 2850 (1000*1000mm pallet)
Minimum ground clearance mm 70
Maximum driving speed km/h 4.0/5.0
Rising speed mm/s 90/140
Gradeability % ≤5
Total weight kg 2900
Drive wheel mm 230*90
Front wheel mm 210*85
Auxiliary wheel mm 150*50
Battery voltage/ capacity v/ah 48/500
Lithium battery charger v/ah 24/40
Lifting motor kw 3.0
Drive motor kw 2.2
Travel speed regulation mode   Hall accelerator
Braking mode   Electromagnetic braking
Steering mode   Electric steering






FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the new which means has Novel manufacturer and professional produce of electric forklift for more than

10 years.



Q2: How about the delivery time?

A2: About 20-30 days based on different model.

For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you provide OEM and ODM service?

A4: Yes. We can do it .





Application Scenarios:

  • Single-Reach Forklift: Suitable for warehouses with shallow racking depths and operations in narrow aisles.
  • Double-Reach Forklift: Better suited for environments where deeper racking systems are used or in warehouses with limited floor space
