Polyurethane Tyre Non-standard AGV with 3500 kgs Load Capacity and 1070mm Fork Length

Polyurethane Tyre Non-standard AGV with 3500 kgs Load Capacity and 1070mm Fork Length

Products - AGV Automated Guided Vehicle
  • High Light

    3500 kgs Load Capacity AGV

    ,

    1070mm Fork Length AGV

    ,

    Polyurethane Tyre AGV

  • Drive Motor
    AC
  • Power Supply
    Battery
  • Tyre Material
    Polyurethane
  • Steering Type
    Electronic Steering
  • Brake System
    Electromagnetic
  • Brake Mode
    Lever Operation
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD
  • Minimum Order Quantity
    1 SETS
  • Price
    USD2470.00 - USD4700.00
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    10 WORK DAYS
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union
  • Supply Ability
    50 SETS PER MONTH

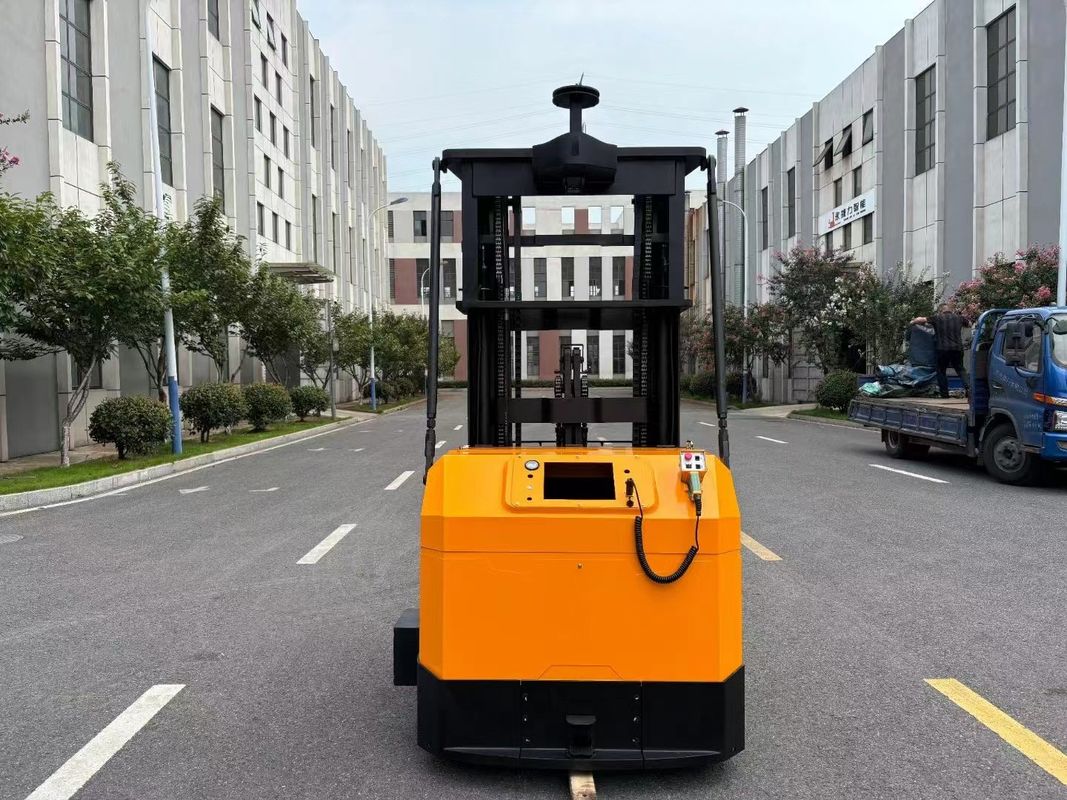

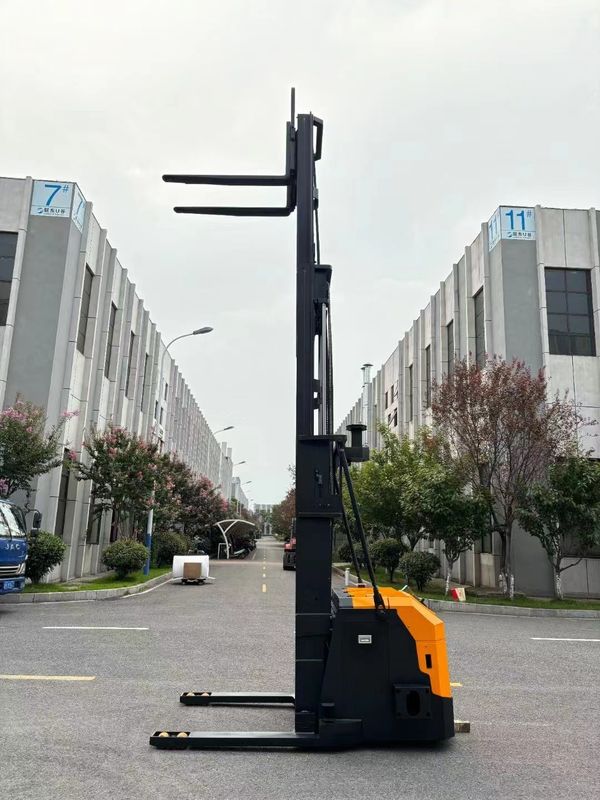

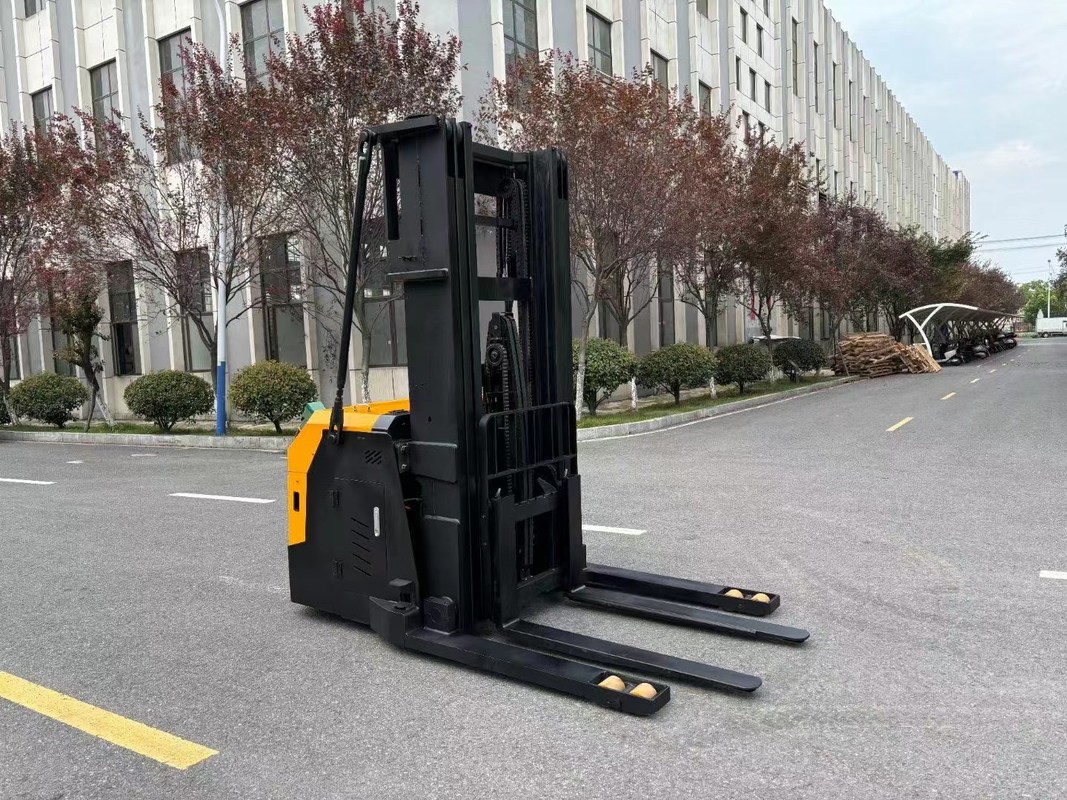

Polyurethane Tyre Non-standard AGV with 3500 kgs Load Capacity and 1070mm Fork Length

  • Polyurethane Tyre Non-standard AGV with 3500 kgs Load Capacity and 1070mm Fork Length
  • Polyurethane Tyre Non-standard AGV with 3500 kgs Load Capacity and 1070mm Fork Length
  • Polyurethane Tyre Non-standard AGV with 3500 kgs Load Capacity and 1070mm Fork Length
Get Price Contact Now
  • Stacking AGV body
  • Rated load: 3500kg
  • Height increase: 5000mm
  • Maximum load capacity: 2500kg
  • Fork length: 1070mm
  • Fork leg width: 1380mm
  • Battery capacity: 51.2V200AH
  • Electromagnetic hydraulic valve group descending proportional valve
  • Curtis controller CAN communication
  • Install various switch brackets
  • Three section fully free portal frame
  • Wire control test handle
  •
  • Automated Guided Vehicle (AGV),: commonly known as an AGV vehicle, refers to a transport vehicle equipped with electromagnetic or optical automatic guidance devices, capable of driving along a prescribed guidance path, with safety protection and various load transfer functions.
  • In industrial applications, it is a transport vehicle that does not require a driver and uses rechargeable batteries as its power source.
  • It is generally possible to control its travel route and behavior through a computer, or use electromagnetic tracks to set up its travel route.
  • The electromagnetic tracks are glued to the floor, and unmanned transport vehicles rely on the information brought by the electromagnetic tracks to move and move.



Name   AGV forklift body
Model   CDD20J-16
Rated load kg 3500
Load center distance mm 500
wheel base mm 895
Vehicle weight kg 850
Tire type   Polyurethane
Mast type   Duplex mast
Number of cylinders piece 2
Bearing wheel mm 85*70
Drive wheel mm 230*75
Auxiliary wheel mm 100*50
Lifting height mm 5000
Overall length mm 1600
Overall width mm 890
Overall height (including laser fixed seat) mm 1950
Fork size mm 1150*190*65
Outside width of fork mm 780
Min. ground clearance mm 29
Turning radius (Wa) mm 1140
Right angle stacking channel width (1200*1000, 1200 horizontal) mm 2000 (+150)
Driving speed (full load/ no load) km/h 5/5.5
Lifting speed (full load/ no load) mm/s 90/120
Descent speed (full load/ no load) mm/s 140/110
Max. climbing capacity(full load/ no load)   5/8
Braking mode   Electromagnetic type
Drive motor power kw 1.5
Lifting motor power kw 2 2
Lithium battery, voltage/ rated capacity v/ah 24/160
Battery weight   Electromagnetic braking
Steering system   Electronic steering
