Stacking AGV Chassis (Automated Generated Vehicle), Customized Solutions Provided

Stacking AGV Chassis (Automated Generated Vehicle), Customized Solutions Provided

  • Highlight

    200 AH AGV Body

    ,

    3500 kgs Handling AGV Body

    ,

    51.2V AGV Body

  • Power Supply
    Lithium Battery, 25.6V 160Ah
  • Steering Type
    Servo Steering
  • Fork Length
    1,070 Mm
  • Number Of Forks
    4
  • Lifting Height
    1,500 Mm
  • Load Capacity
    2,000 Kg
  • Place of Origin
    ANHUI, CHINA
  • Brand Name
    YONGJIELI
  • Certification
    CE
  • Model Number
    CDD
  • Minimum Order Quantity
    1 SETS
  • Price
    Negotiable
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    15~20 WORKING DAYS
  • Payment Terms
    L/C,T/T,D/A,D/P,Western Union
  • Supply Ability
    50 SETS PER MONTH

Stacking AGV Chassis (Automated Generated Vehicle), Customized Solutions Provided

Product Name:

Stacking AGV Chassis


Desciption

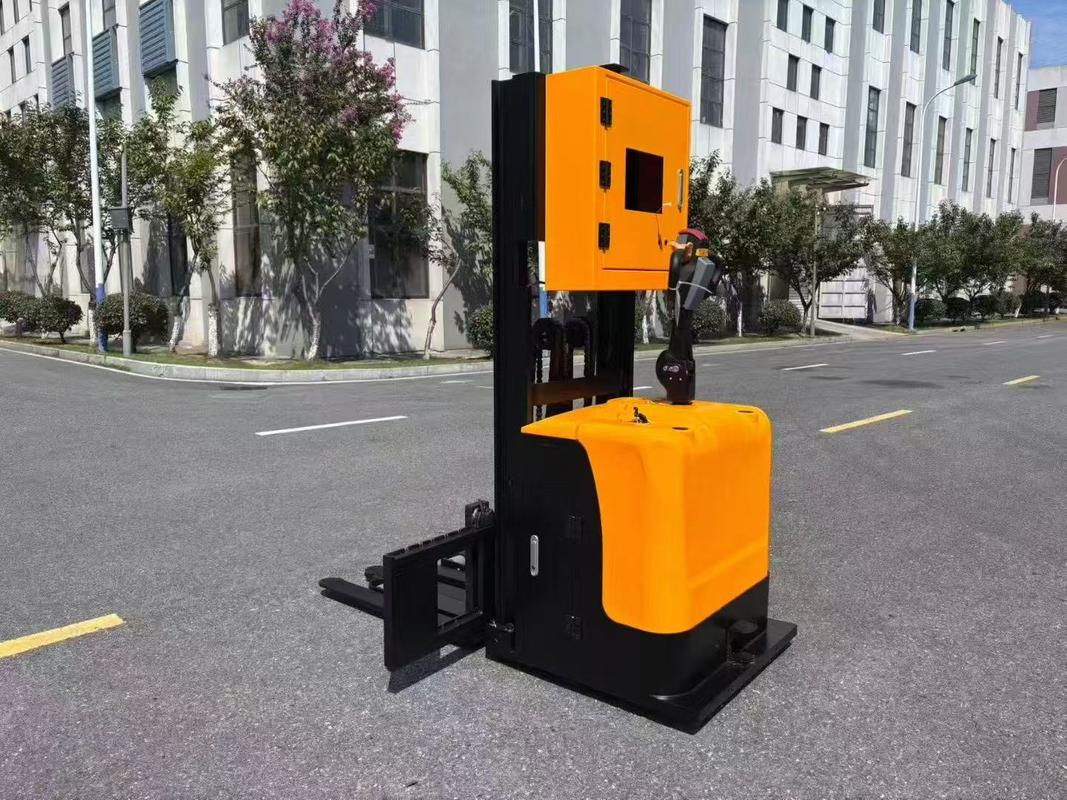

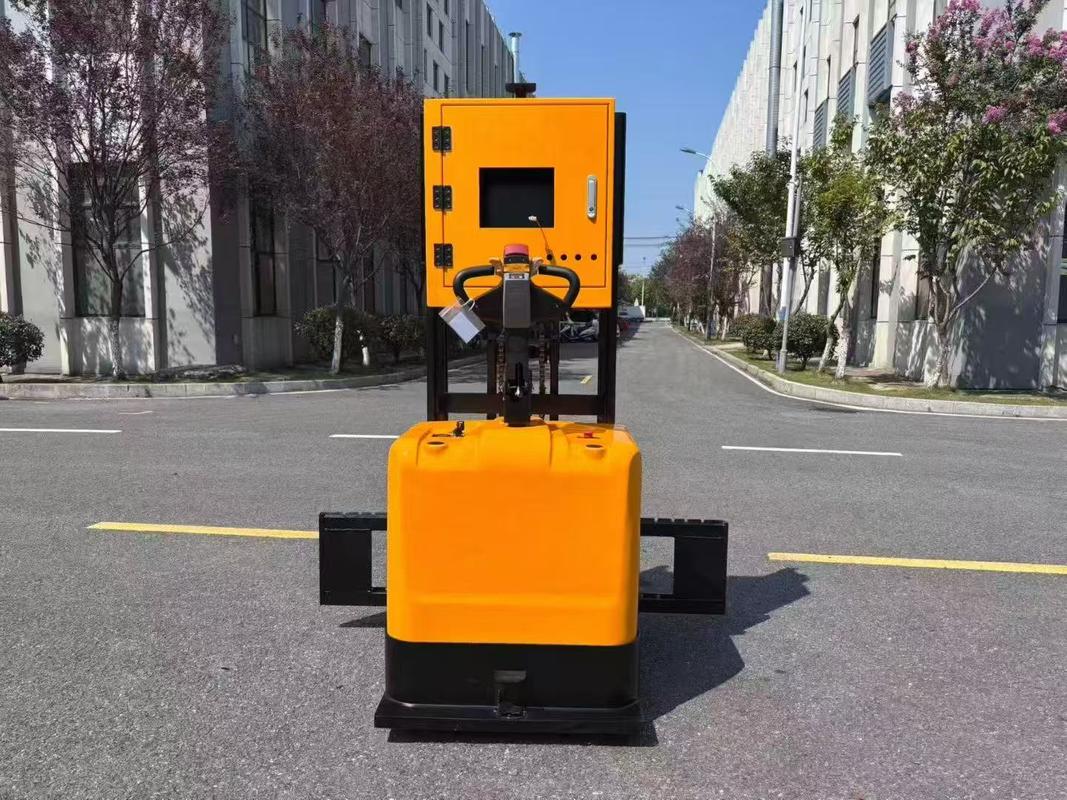

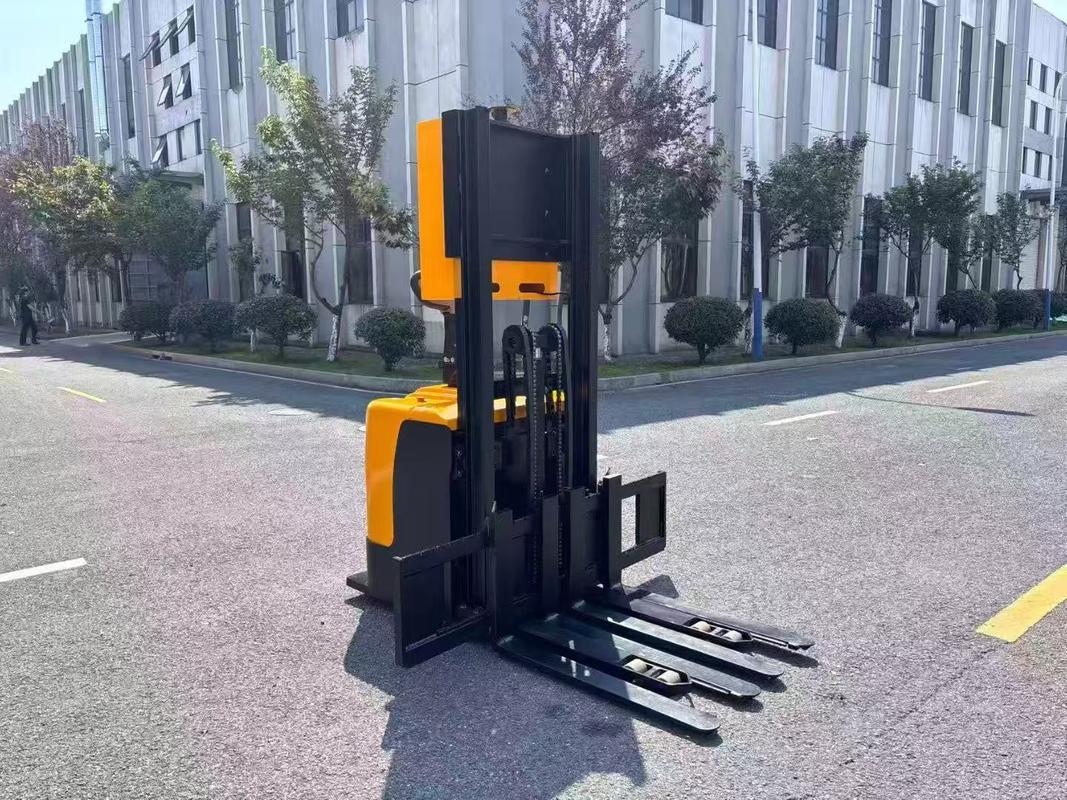

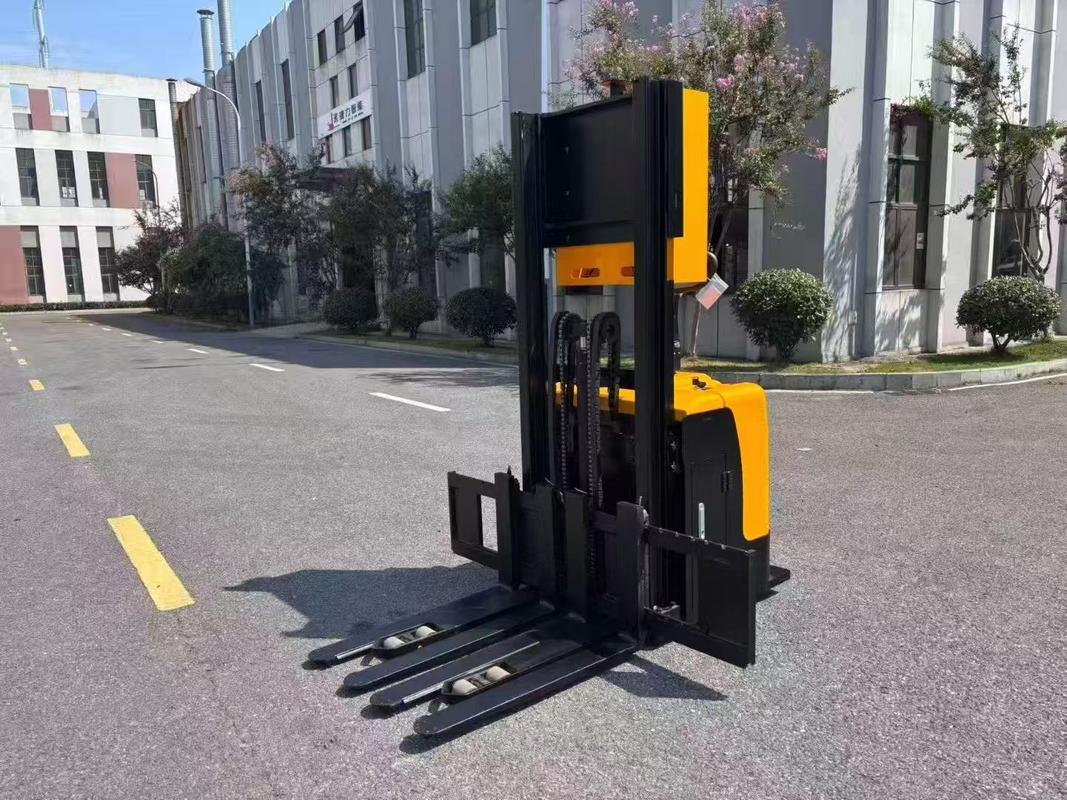

This is a self-driving, heavy-duty stacking vehicle designed to automatically lift, move, and place palletized loads with high precision in your facility. Essentially, it's an automated robotic forklift that can reliably handle pallet stacking tasks of up to 2,000 kg without a human driver.

Our factory accepts customized order for clients.


Parameters

Stacking AGV Chassis
Rated Load Capacity: 2,000 kg
Lifting Height: 1,500 mm
Fork Length: 1,070 mm
Number of Forks: 4
Lithium Battery: 25.6V 160Ah
CAN Communication
Electro-hydraulic Valve Block with Proportional Lowering Valve
Servo Steering, Servo Control
CURTIS AC Main Drive
Retrofitted with Various Switch Brackets and Electrical Cabinets
Yongjieli Accepts Custom Orders for Non-Standard AGV Chassis
