Automated Guided Vehicle (AGV),: commonly known as an AGV vehicle, refers to a transport vehicle equipped with electromagnetic or optical automatic guidance devices, capable of driving along a prescribed guidance path, with safety protection and various load transfer functions. In industrial applications, it is a transport vehicle that does not require a driver and uses rechargeable batteries as its power source.
It is generally possible to control its travel route and behavior through a computer, or use electromagnetic tracks to set up its travel route. The electromagnetic tracks are glued to the floor, and unmanned transport vehicles rely on the information brought by the electromagnetic tracks to move and move.

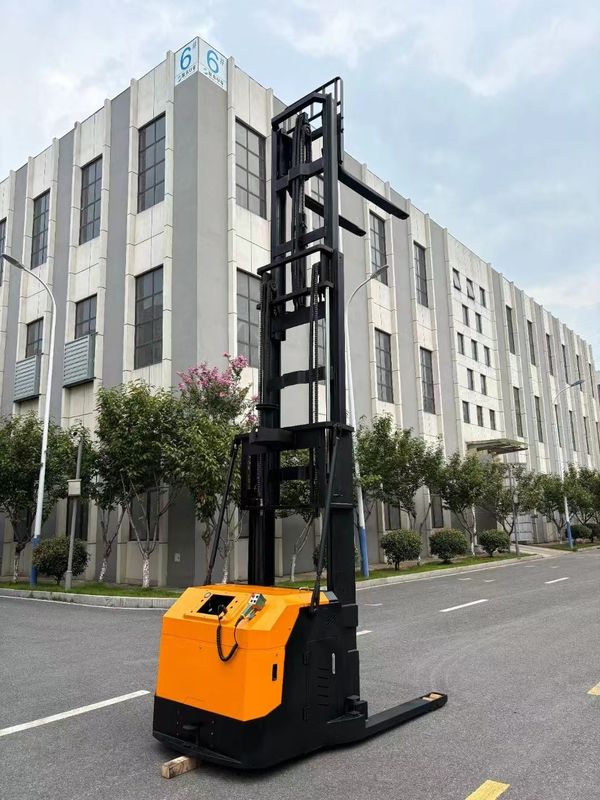

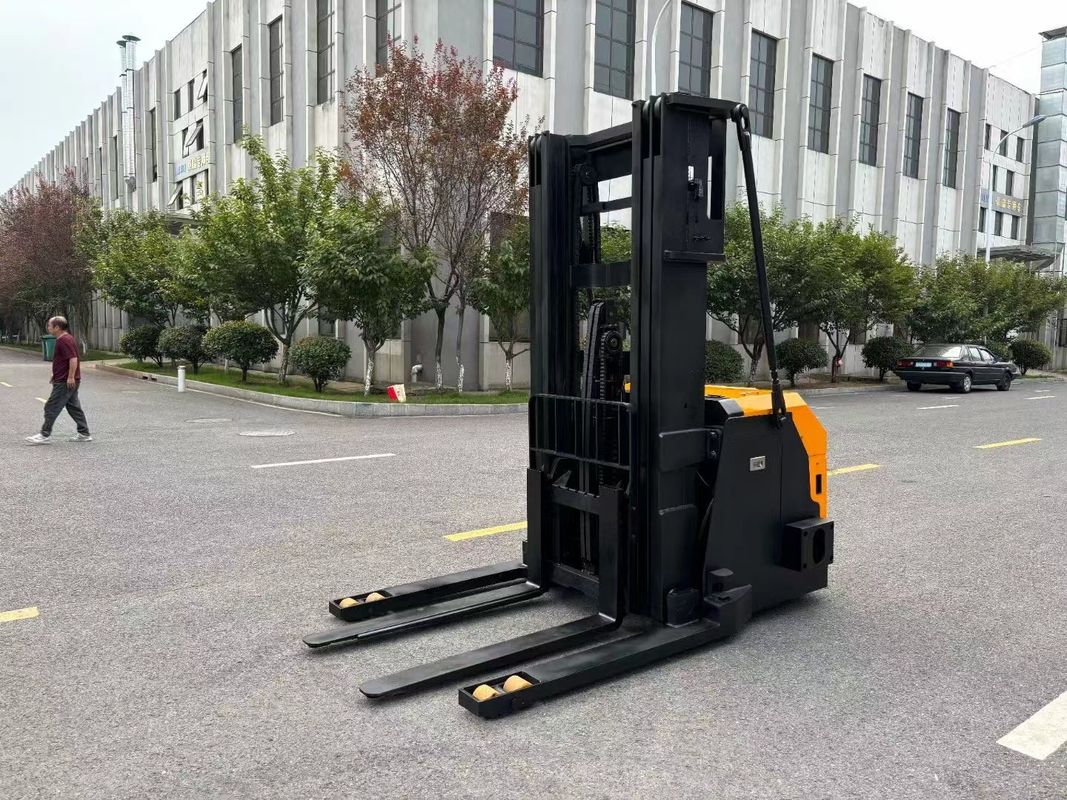

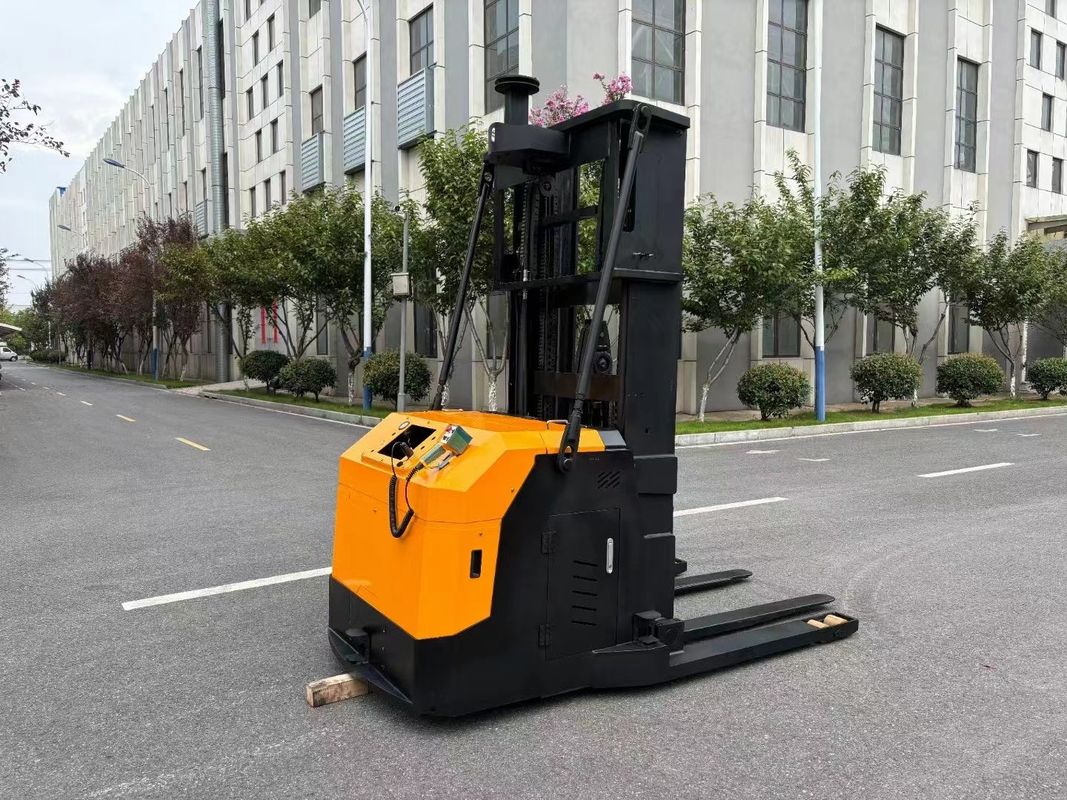

| Name | AGV forklift body | |
| Model | CDD20J-16 | |
| Rated load | kg | 3500 |
| Load center distance | mm | 500 |
| wheel base | mm | 895 |
| Vehicle weight | kg | 850 |
| Tire type | Polyurethane | |
| Mast type | Duplex mast | |
| Number of cylinders | piece | 2 |
| Bearing wheel | mm | 85*70 |
| Drive wheel | mm | 230*75 |
| Auxiliary wheel | mm | 100*50 |
| Lifting height | mm | 5000 |
| Overall length | mm | 1600 |
| Overall width | mm | 890 |
| Overall height (including laser fixed seat) | mm | 1950 |
| Fork size | mm | 1150*190*65 |
| Outside width of fork | mm | 780 |
| Min. ground clearance | mm | 29 |
| Turning radius (Wa) | mm | 1140 |
| Right angle stacking channel width (1200*1000, 1200 horizontal) | mm | 2000 (+150) |
| Driving speed (full load/ no load) | km/h | 5/5.5 |
| Lifting speed (full load/ no load) | mm/s | 90/120 |
| Descent speed (full load/ no load) | mm/s | 140/110 |
| Max. climbing capacity(full load/ no load) | 5/8 | |
| Braking mode | Electromagnetic type | |
| Drive motor power | kw | 1.5 |
| Lifting motor power | kw | 2 2 |
| Lithium battery, voltage/ rated capacity | v/ah | 24/160 |
| Battery weight | Electromagnetic braking | |
| Steering system | Electronic steering |
Our products are sold all over the world, you can rest assured.
