Automated Guided Vehicle (AGV),: commonly known as an AGV vehicle, refers to a transport vehicle equipped with electromagnetic or optical automatic guidance devices, capable of driving along a prescribed guidance path, with safety protection and various load transfer functions. In industrial applications, it is a transport vehicle that does not require a driver and uses rechargeable batteries as its power source.
It is generally possible to control its travel route and behavior through a computer, or use electromagnetic tracks to set up its travel route. The electromagnetic tracks are glued to the floor, and unmanned transport vehicles rely on the information brought by the electromagnetic tracks to move and move.

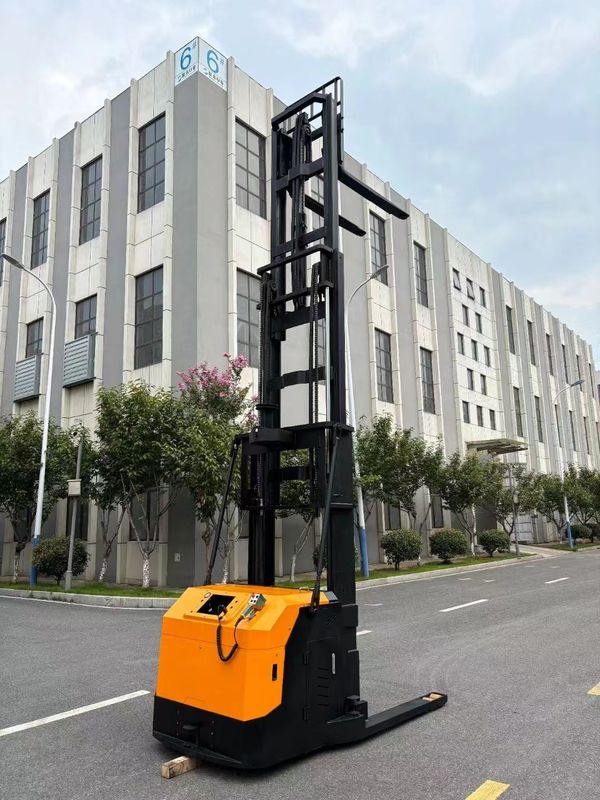

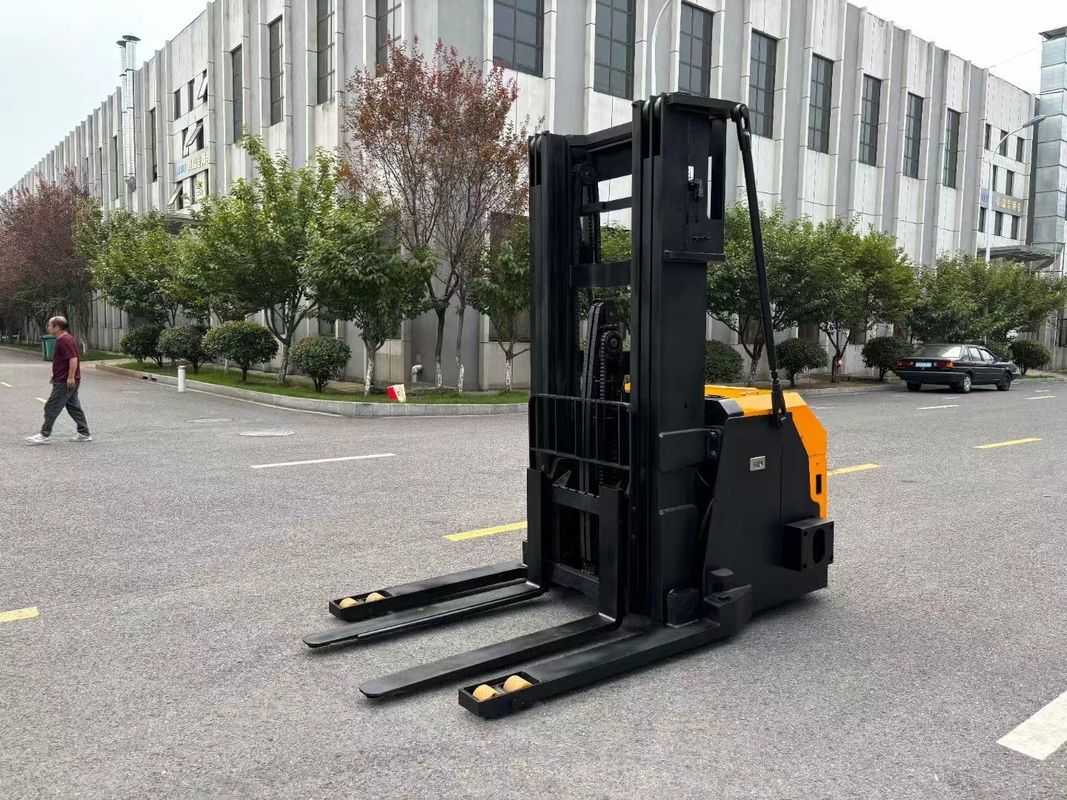

Stacking AGV body
Rated load: 3500kg
Height increase: 5000mm
Maximum load capacity: 2500kg
Fork length: 1070mm
Fork leg width: 1380mm
Battery capacity: 51.2V200AH
Electromagnetic hydraulic valve group descending proportional valve
Curtis controller CAN communication
Install various switch brackets
Three section fully free portal frame
Wire control test handle
| Name | AGV forklift body | |
| Model | CDD20J-16 | |
| Rated load | kg | 2000 |
| Load center distance | mm | 500 |
| wheel base | mm | 895 |
| Vehicle weight | kg | 850 |
| Tire type | Polyurethane | |
| Mast type | Duplex mast | |
| Number of cylinders | piece | 2 |
| Bearing wheel | mm | 85*70 |
| Drive wheel | mm | 230*75 |
| Auxiliary wheel | mm | 100*50 |
| Lifting height | mm | 1600 |
| Overall length | mm | 1600 |
| Overall width | mm | 890 |
| Overall height (including laser fixed seat) | mm | 1950 |
| Fork size | mm | 1150*190*65 |
| Outside width of fork | mm | 780 |
| Min. ground clearance | mm | 29 |
| Turning radius (Wa) | mm | 1140 |
| Right angle stacking channel width (1200*1000, 1200 horizontal) | mm | 2000 (+150) |
| Driving speed (full load/ no load) | km/h | 5/5.5 |
| Lifting speed (full load/ no load) | mm/s | 90/120 |
| Descent speed (full load/ no load) | mm/s | 140/110 |
| Max. climbing capacity(full load/ no load) | 5/8 | |
| Braking mode | Electromagnetic type | |
| Drive motor power | kw | 1.5 |
| Lifting motor power | kw | 2 2 |
| Lithium battery, voltage/ rated capacity | v/ah | 24/160 |
| Battery weight | Electromagnetic braking | |
| Steering system | Electronic steering |
